Mitsubishi Electric MELSERVO-J5 HK-KT43W - Wiring Connectors (Connector Configurations B;C;D;E)

3 CONNECTORS USED FOR ROTARY SERVO MOTOR WIRING
3.3 Wiring connectors (connector configurations B/C/D/E)
29
3
3.3 Wiring connectors (connector configurations B/C/
D/E)
*1 The connector to be mated.
Connector
configuration
Feature Plug (DDK) Rotary servo
motor
encoder
connector
*1
Type Plug Socket
contact
Contact shape Cable OD
[mm]
(reference)
B (for encoder) IP67 Straight CMV1-SP10S-M1
(One-touch
connection type)
CMV1S-SP10S-M1
(Screw type)
CMV1-#22ASC-
S1-100
Solder type
Applicable wire size: AWG 20 or less
5.5 to 7.5 CMV1-R10P
CMV1-#22ASC-
C1-100
Crimping type
Applicable wire size: AWG 24 to 20
The crimping tool (357J-53162T) is
required.
CMV1-#22ASC-
C2-100
Crimping type
Applicable wire size: AWG 28 to 24
The crimping tool (357J-53163T) is
required.
CMV1-SP10S-M2
(One-touch
connection type)
CMV1S-SP10S-M2
(Screw type)
CMV1-#22ASC-
S1-100
Solder type
Applicable wire size: AWG 20 or less
7.0 to 9.0
CMV1-#22ASC-
C1-100
Crimping type
Applicable wire size: AWG 24 to 20
The crimping tool (357J-53162T) is
required.
CMV1-#22ASC-
C2-100
Crimping type
Applicable wire size: AWG 28 to 24
The crimping tool (357J-53163T) is
required.
Angle CMV1-AP10S-M1
(One-touch
connection type)
CMV1S-AP10S-M1
(Screw type)
CMV1-#22ASC-
S1-100
Solder type
Applicable wire size: AWG 20 or less
5.5 to 7.5
CMV1-#22ASC-
C1-100
Crimping type
Applicable wire size: AWG 24 to 20
The crimping tool (357J-53162T) is
required.
CMV1-#22ASC-
C2-100
Crimping type
Applicable wire size: AWG 28 to 24
The crimping tool (357J-53163T) is
required.
CMV1-AP10S-M2
(One-touch
connection type)
CMV1S-AP10S-M2
(Screw type)
CMV1-#22ASC-
S1-100
Solder type
Applicable wire size: AWG 20 or less
7.0 to 9.0
CMV1-#22ASC-
C1-100
Crimping type
Applicable wire size: AWG 24 to 20
The crimping tool (357J-53162T) is
required.
CMV1-#22ASC-
C2-100
Crimping type
Applicable wire size: AWG 28 to 24
The crimping tool (357J-53163T) is
required.

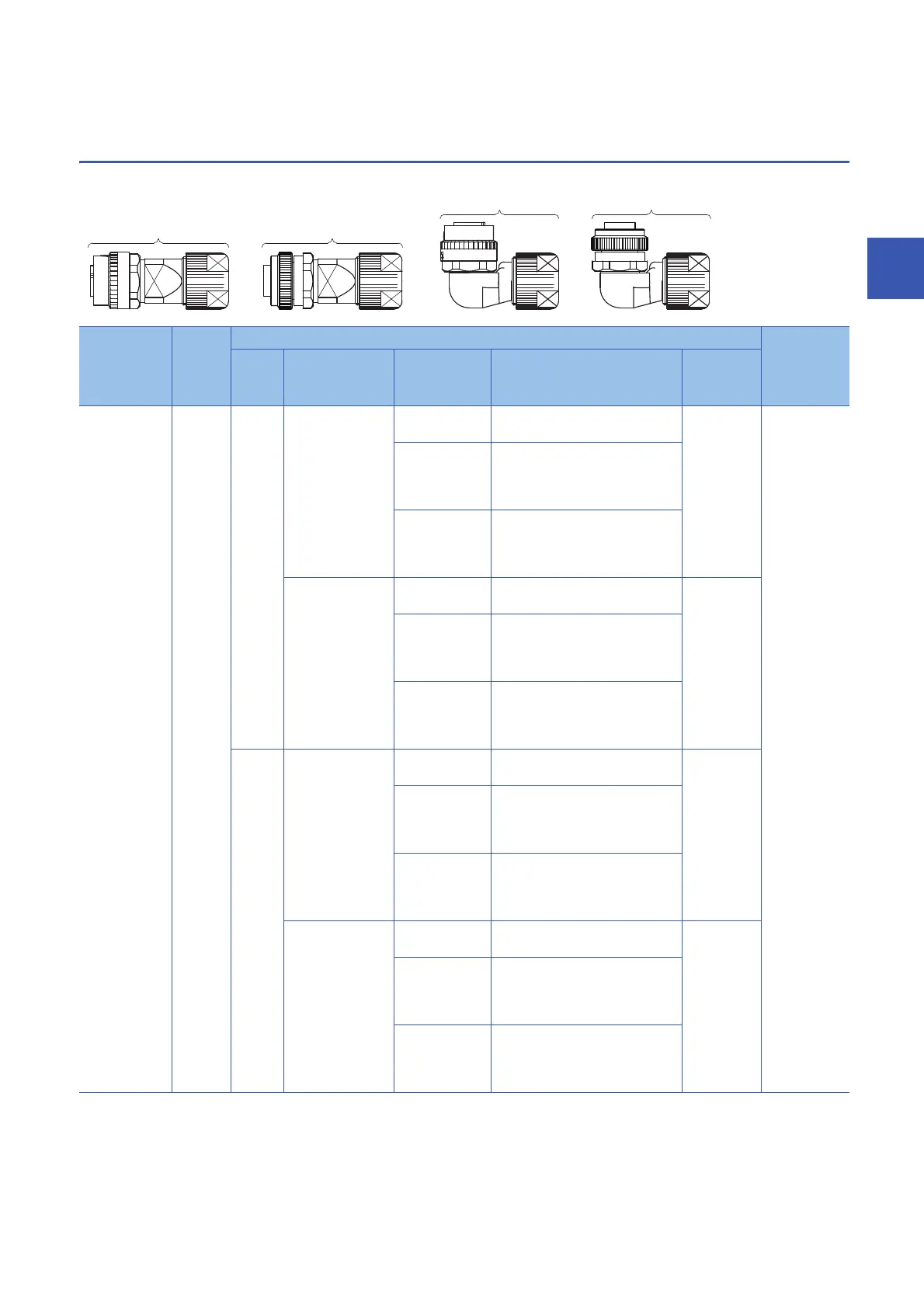

Angle plug
(screw type)
Angle plug
(one-touch connection type)
Straight plug
(screw type)
Straight plug
(one-touch connection type)
