10 APPENDIX

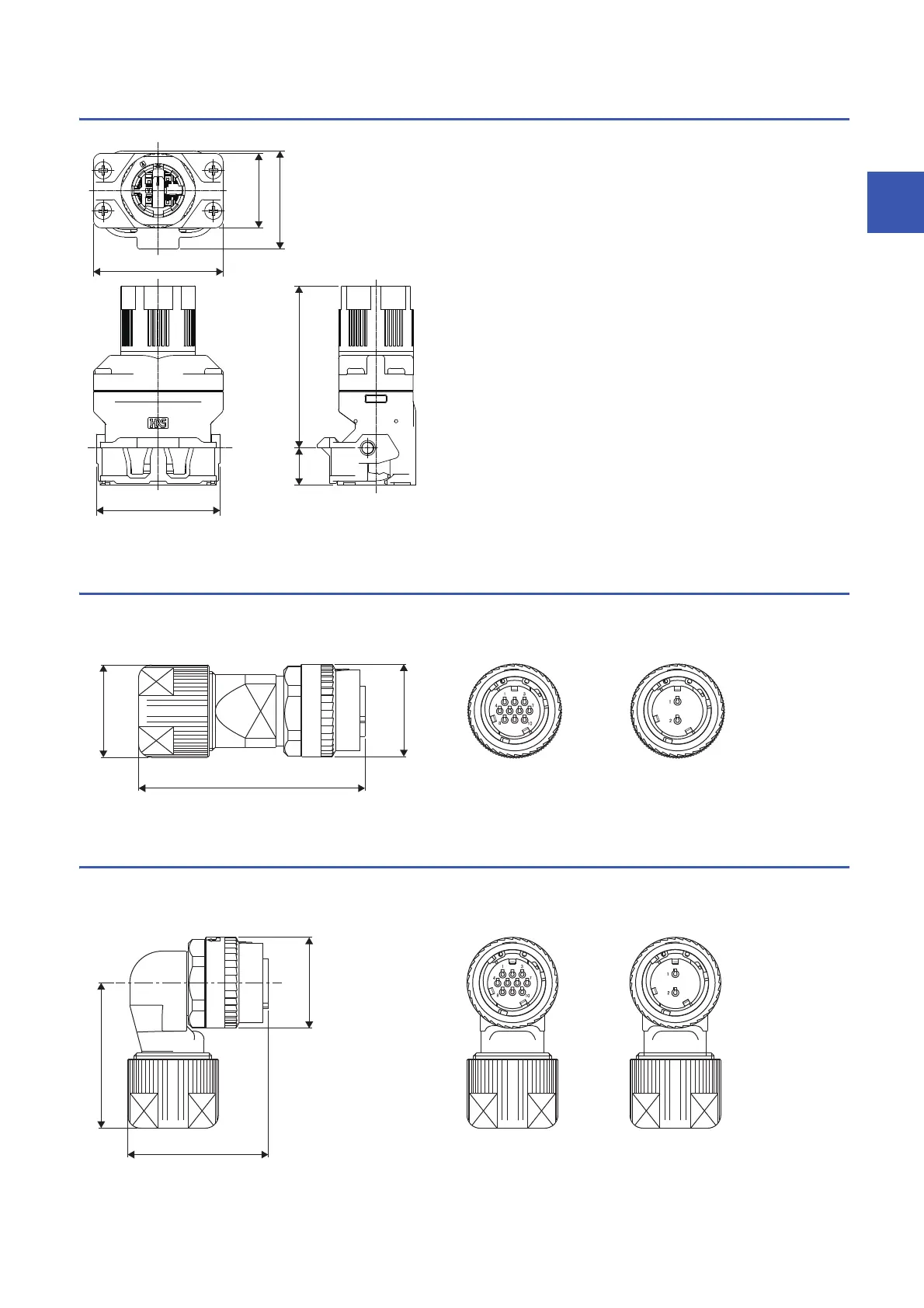

10.3 Connector dimensions
213
10
MT50W-8D/2D4ES-CVS(11.9)
[Unit: mm]
CMV1-SP10S-M_/CMV1-SP2S-_
Refer to the following for details of the crimping tool.
Page 29 Wiring connectors (connector configurations B/C/D/E)
[Unit: mm]
CMV1-AP10S-M_/CMV1-AP2S-_
Refer to the following for details of the crimping tool.
Page 29 Wiring connectors (connector configurations B/C/D/E)
[Unit: mm]
9.15
30.5
32
24.25
18.4
40
(50)
21
21
For CMV1-SP10S-M_ For CMV1-SP2S-_
21
(32)
(33)
For CMV1-AP10S-M_ For CMV1-AP2S-_
