214
10 APPENDIX

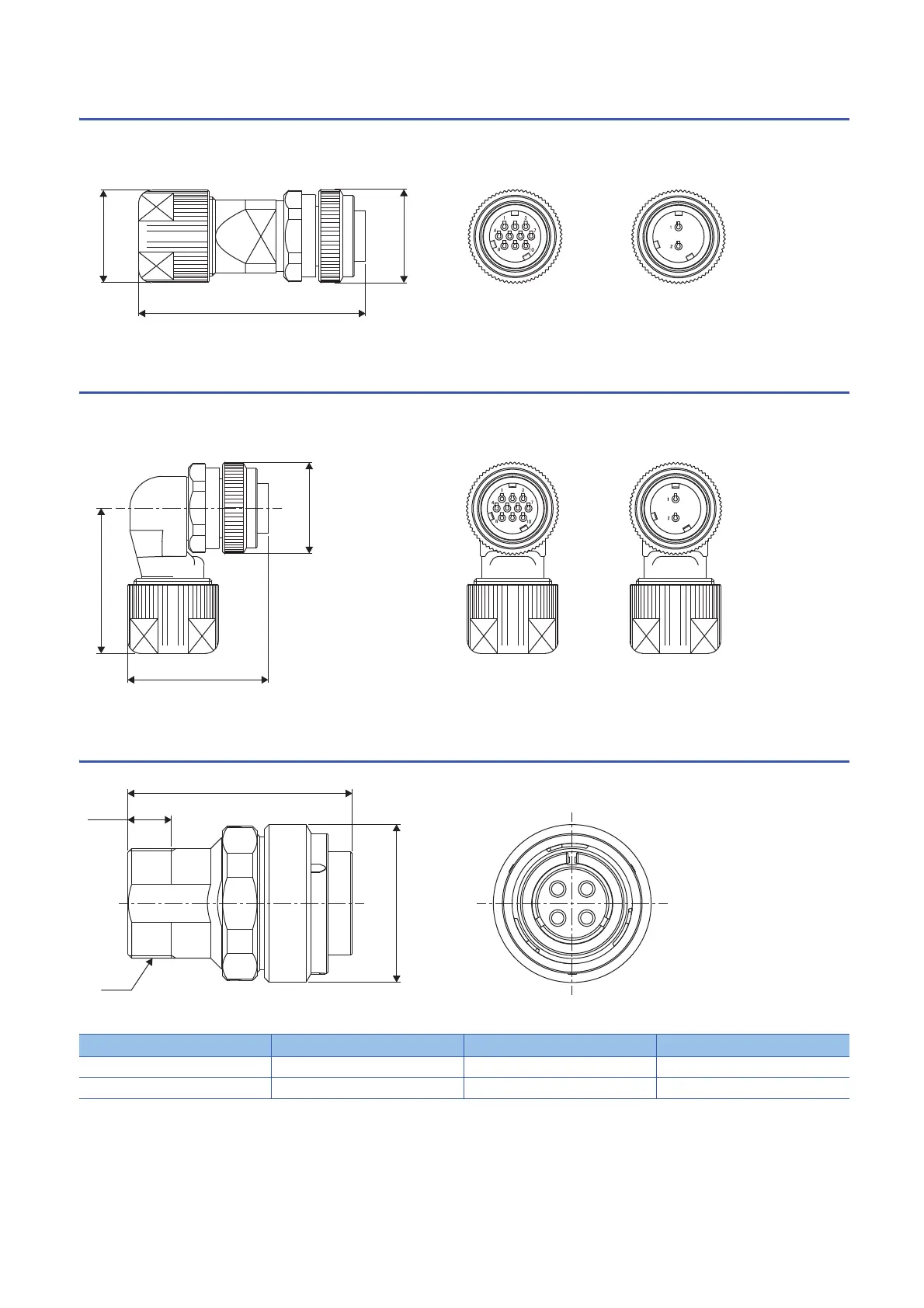

10.3 Connector dimensions
CMV1S-SP10S-M_/CMV1S-SP2S-_
Refer to the following for details of the crimping tool.
Page 29 Wiring connectors (connector configurations B/C/D/E)
[Unit: mm]
CMV1S-AP10S-M_/CMV1S-AP2S-_
Refer to the following for details of the crimping tool.
Page 29 Wiring connectors (connector configurations B/C/D/E)
[Unit: mm]
JL10-6A_-_SE-EB
[Unit: mm]
Model A B X
JL10-6A18-10SE-EB 51.05 35.85 1-20UNEF-2A
JL10-6A22-22SE-EB 58.65 42.2 1 3/16-18UNEF-2A
(50)
21
21
For CMV1S-SP10S-M_
For CMV1S-SP2S-_
(32)
(33)
21
For CMV1S-AP10S-M_ For CMV1S-AP2S-_
A
10
B
X
