Mitsubishi 4G1 series

4G1 ENGINE (E-W) -
Cylinder Head and Valves
11A-9-6
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

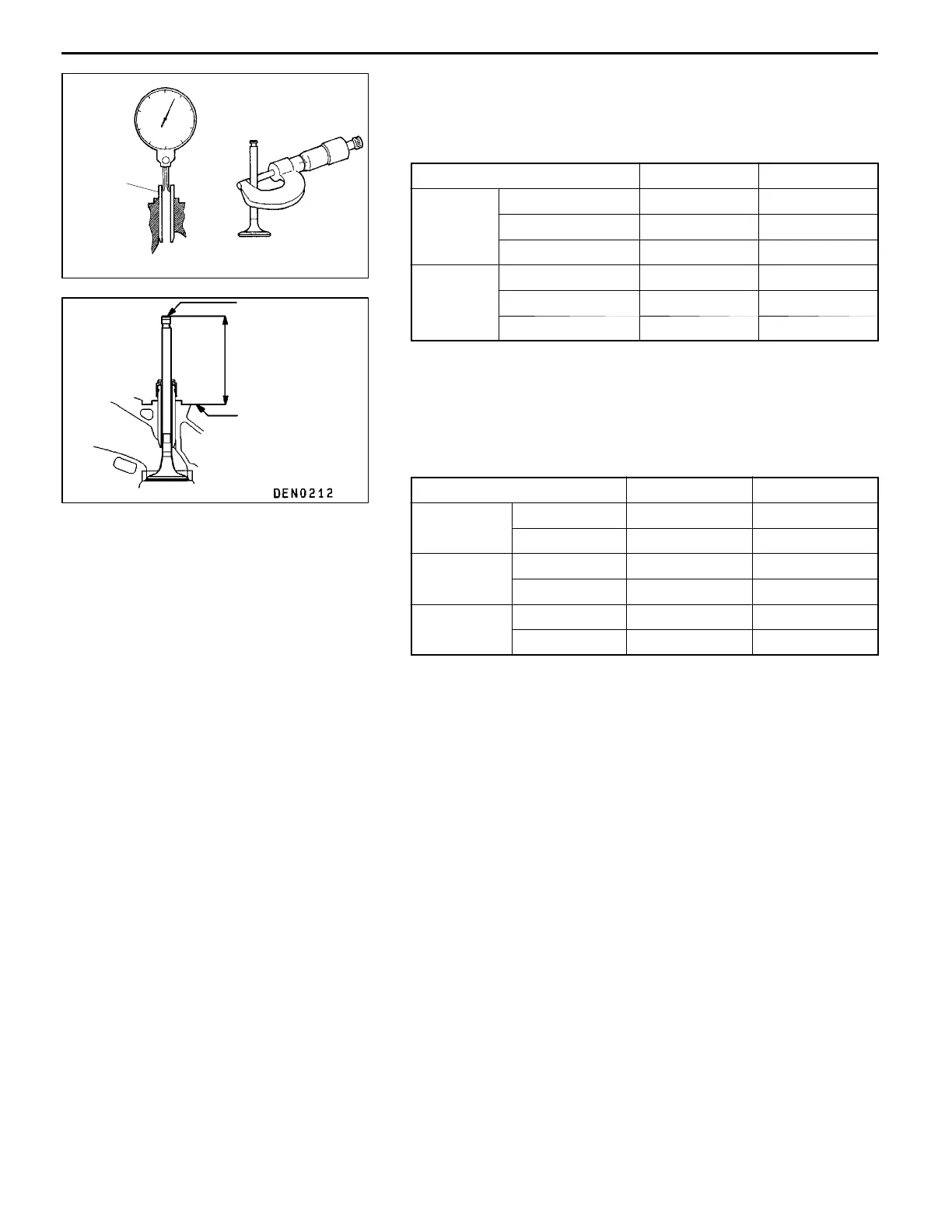

4. VALVE GUIDES
(1) Measure the clearance between the valve guide a n d valve
stem. If the clearance exceeds the specified limit, replace
either or both components.
Standard mm Limit mm
Intake SOHC 12-VALVE 0.020 - 0.050 0.10
SOHC 16-VALVE 0.020 - 0.047 0.10
DOHC 0.020 - 0.047 0.10
Exhaust SOHC 12-VALVE 0.035 - 0.050 0.15
SOHC 16-VALVE 0.030 - 0.057 0.15
DOHC 0.030 - 0.062 0.15
5. VALVE SEATS
(1) Assemble the valve, then measure the valve stem
projection between the e n d of the valve stem and the
spring seating surface. If the measurement exceeds the
specified limit, replace the valve seat.
Standard mm Limit mm
SOHC Intake 43.70 44.20
12-VALVE
Exhaust 43.30 43.80
SOHC Intake 53.21 53.71
16-VALVE
Exhaust 54.10 54.60
DOHC Intake 48.80 49.30
Exhaust 48.70 49.20
PWEE9520-C
E
Apr. 2000Mitsubishi Motors Corporation Revised
Valve
guide
Guide I. D.
Stem O. D.
1EN0279
Valve stem en d
Valve projection
Spring seating
surface
