4G1 ENGINE (E-W) -
Fuel and Emission Control Systems
11A-5-1
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
5. FUEL AND EMISSION CONTROL SYSTEMS
REMOVAL AND INSTALLATION <SOHC 12-VALVE- CARBURETOR>
17 Nm
12 Nm
31 Nm
21 Nm
11
12
10
9
8
7
3
2
4
5
6
1
10 Nm
13
12 Nm
14

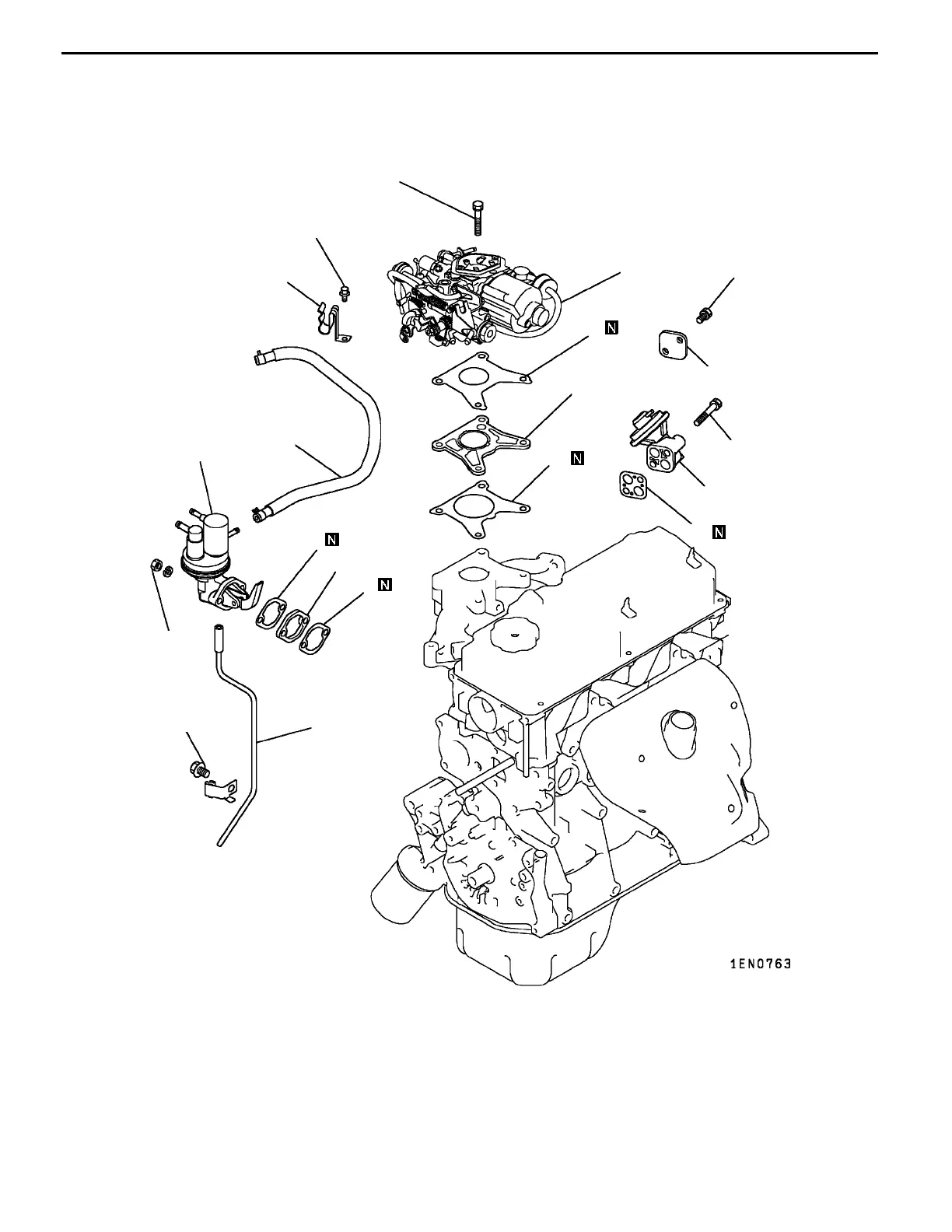

Removal steps
1. Breather tube
2. Fuel hose
3. Hose clamp
4. Fuel pump
5. Gasket
6. Insulator
7. Gasket
8. Carburetor
9. Upper gasket
10. Spacer
11. Lower gasket
12. EGR valve <engine with EGR>
13. Cover <engine without EGR>
14. Gasket
PWEE9520-D
