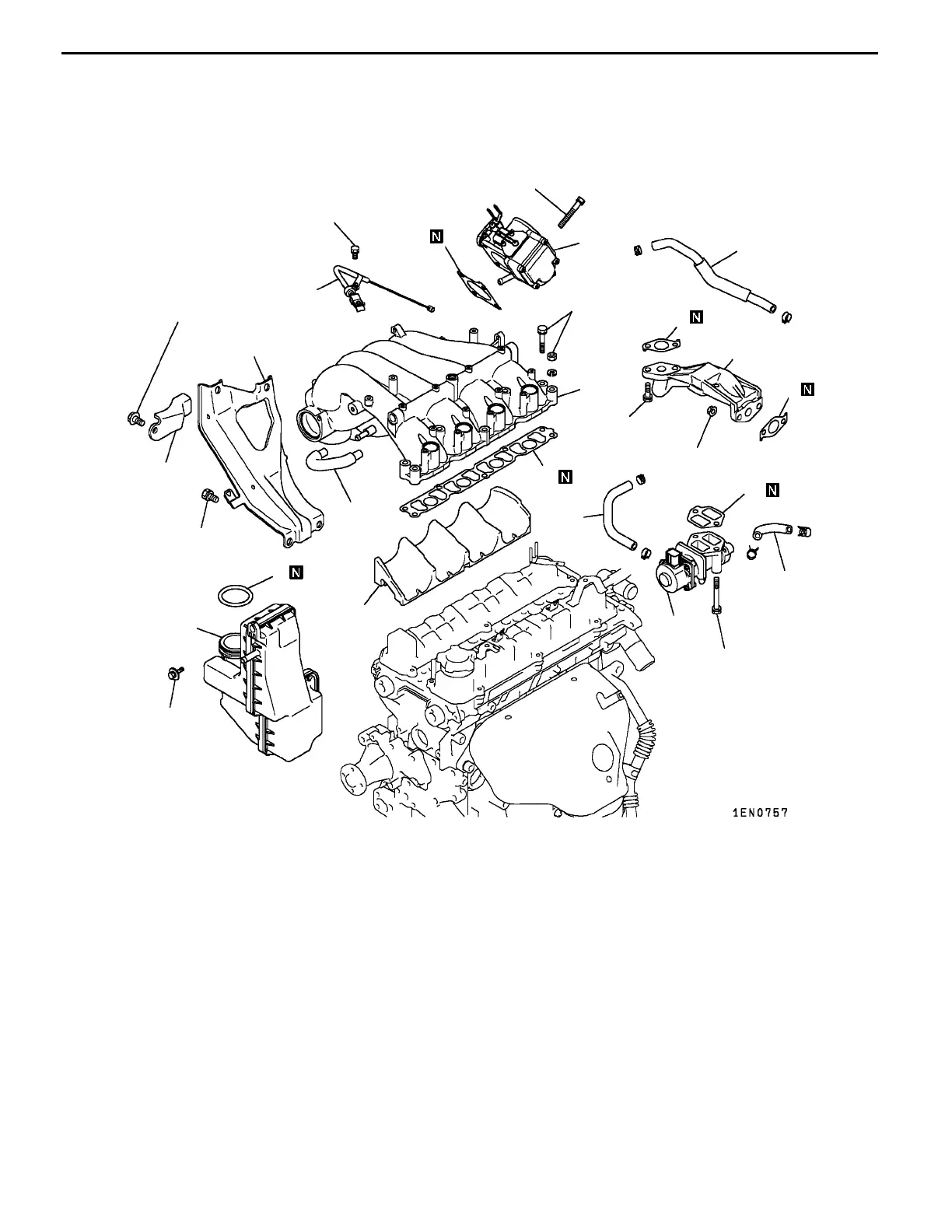

INTAKE MANIFOLD AND THROTTLE BODY (GDI)
REMOVAL AND INSTALLATION
49 Nm
11
5
12
10
19 Nm
3
4
1
8
7
20 Nm
10 Nm
15
30 Nm
6
10 Nm
13
24 Nm
14
2
19 Nm
11
9
17
16
19 Nm
14
18
Removal steps
1. Accelerator cable
2. Water hose
3. Throttle body
4. Gasket
5. Air intake plenum resonator
6. O-ring
7. Power plant stay, right
"
B
A
8. Intake manifold stay
9. Water hose
10. Water hose
11. EGR valve
12. Gasket
13. EGR valve support
14. Gasket
15. P.C.V. hose
A
A
""
A
A
16. Intake manifold
17. Gasket
18. Insulator
