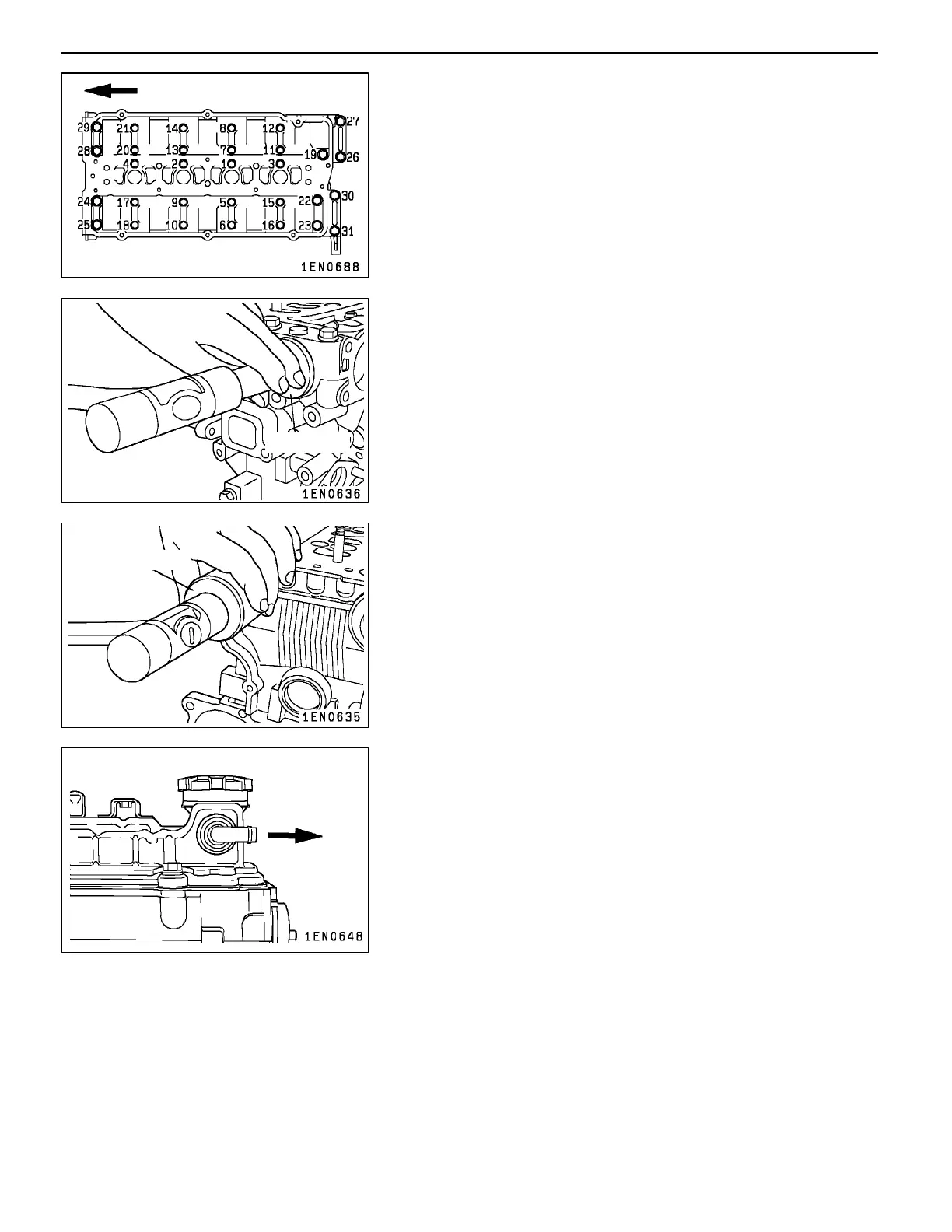

(4) Install the beam camshaft and tighten the bolts to the
specified torque in the order shown in the illustration.
Tightening torque
11 Nm (M6)
25 Nm (M8)
(5) After tightening the bolts, completely wipe out the liquid
gasket that has overflowed the intake part before the
gasket is hardened (within 15 minutes after application
of liquid gasket).
"
D
A
SEMI-CIRCULAR PACKING INSTALLATION
Using the special tool, install the semi-circular packing.
"
E
A
OIL SEAL INSTALLATION
Using the special tool, install the oil seal.
"
F
A
P.C.V. VALVE INSTALLATION
Install the P.C.V. valve with its nipple directed as shown.
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Added
Front of engine
MD998762
MD998713
