4G1 ENGINE (E-W) -
Water Pump and Water Hose
11A-6-6
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
"
F
A

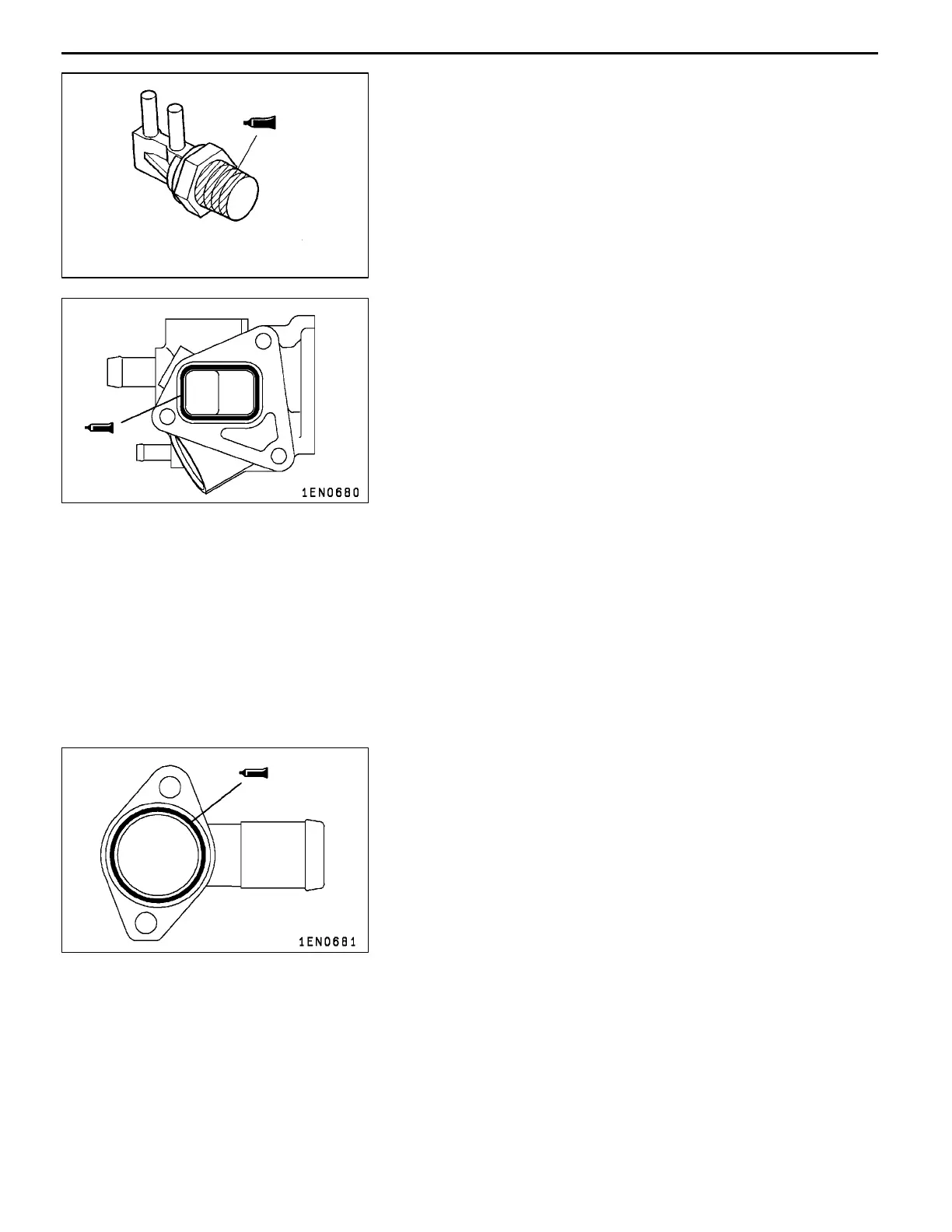

THERMO VALVE INSTALLATION
(1) If the thermo valve is to be reused, apply the specified
sealant to its thread.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
"
G
A
THERMOSTAT HOUSING INSTALLATION
(1) Remove the old liquid gasket from the cylinder head
(thermostat housing mounting surface) and the thermostat
housing.
(2) Apply liquid gasket to the thermostat housing mounting
surface by squeezing it to a thickness of 3 mm.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
Caution
Squeeze the liquid gasket uniformly so that there is
no break in the gasket nor is there too much gasket.
"
H
A
WATER OUTLET FITTING INSTALLATION
(1) Remove the old liquid gasket from the thermostat housing
(water outlet fitting mounting surface) and the water outlet
fitting.
(2) Apply liquid gasket to the water outlet fitting mounting
surface by squeezing it to a thickness of 3 mm.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
Caution
Squeeze the liquid gasket uniformly so that there is
no break in the gasket nor is there too much gasket.
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Added
1EN0511
