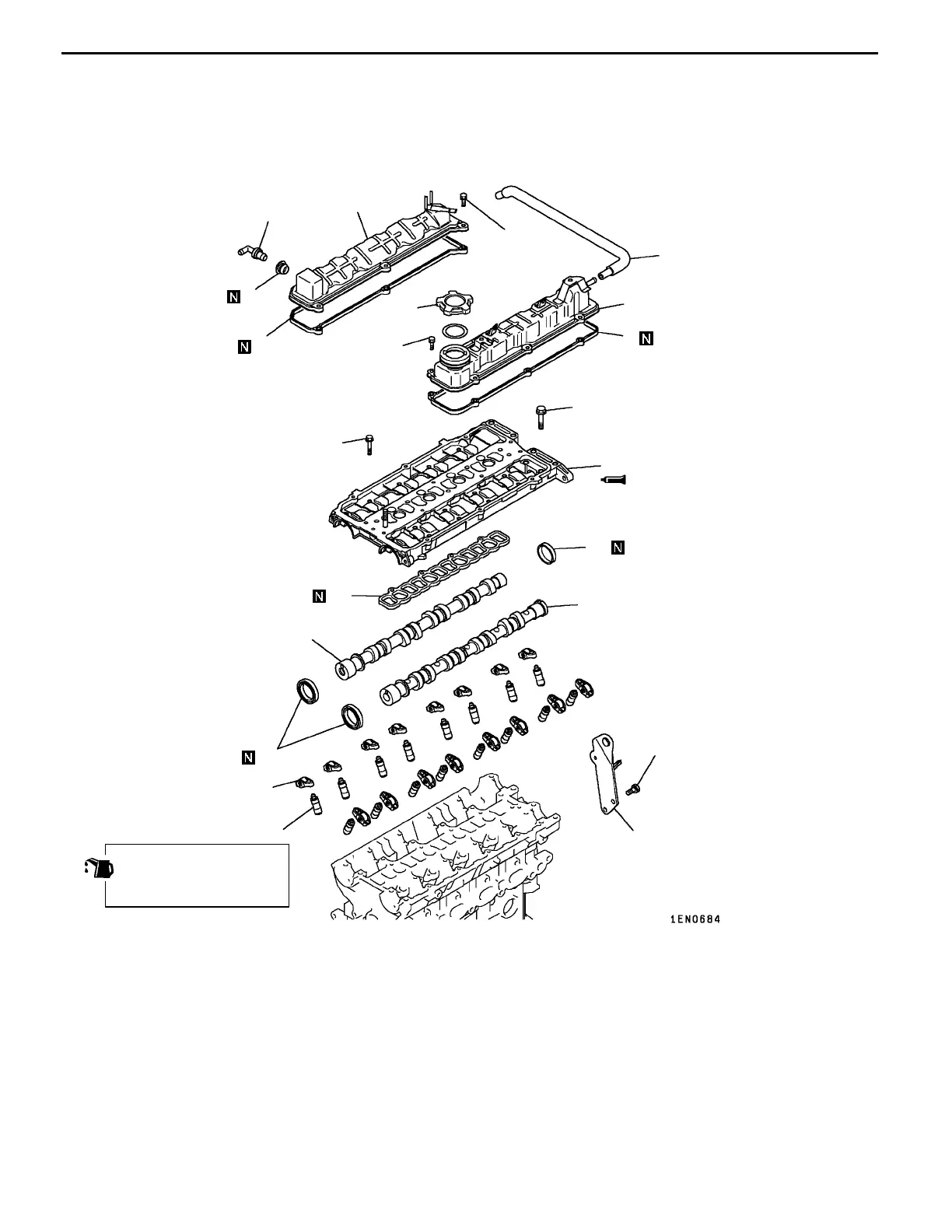

ROCKER ARMS AND CAMSHAFTS (GDI)
REMOVAL AND INSTALLATION
9
11 Nm
2
19 Nm
8
4
11
12
3.5 Nm
3.5 Nm
3
25 Nm
1
6
7
15
17
16
10
13
14
5
Apply engine oil to all
moving parts before
installation.
Removal steps
1. Engine hanger
2. Breather hose
"
F
A
3. P.C.V. valve
4. Gasket
5. Oil filler cap
6. Inlet rocker cover
7. Gasket
8. Exhaust rocker cover
9. Gasket
"
E
A
10. Oil seal
"
D
A
11. Semi-circular packing
"
C
A
12. Beam camshaft cap
13. Gasket
"
B
A
14. Intake camshaft
"
B
A
15. Exhaust camshaft
16. Roller rocker arm
A
A
""
A
A
17. Lash adjuster
