Mitsubishi 4G1 series General Information

4G1 ENGINE (E–W) – Timing Belt
11A-4-8
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

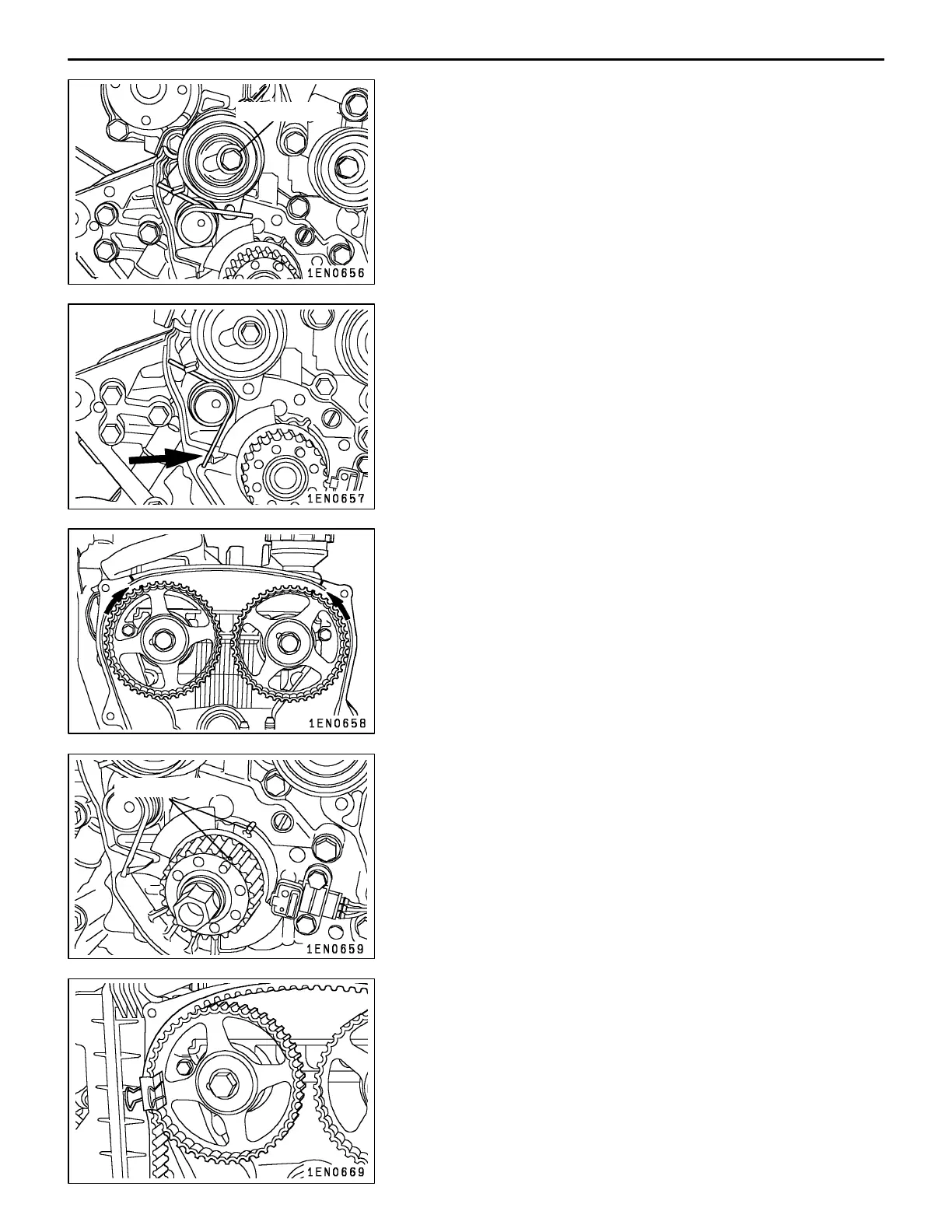

"FA TIMING BELT TENSIONER AND TENSIONER
SPRING INSTALLATION
(1) Install the timing belt tensioner and the tensioner spring,
and temporarily tighten the timing belt tensioner securing
bolt.
(2) Using pliers and the like, secure the spring at the illustrated
position of the front case.
Caution
Do not cause the end of the tensioner spring to give
damage to the crankshaft sprocket.
"GA TIMING BELT INSTALLATION
(1) Align the timing marks on each camshaft sprocket.
NOTE
After the timing marks on the sprockets are aligned, the
sprockets can turn by about one tooth in the direction
shown and remain stable in this position.
(2) Align the crankshaft sprocket timing marks.
(3) While paying attention to the direction of rotation marked
on the timing belt (if the timing belt is reused), put the
timing belt over the inlet camshaft sprocket. After that,
secure the belt at the position shown with a paper clip,
etc.
Securing bolt
PWEE9520-E
E
Feb. 2001Mitsubishi Motors Corporation Revised
Timing marks
