4G1 ENGINE (E–W) – Oil Pump and Oil Pan
11A-10-3
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

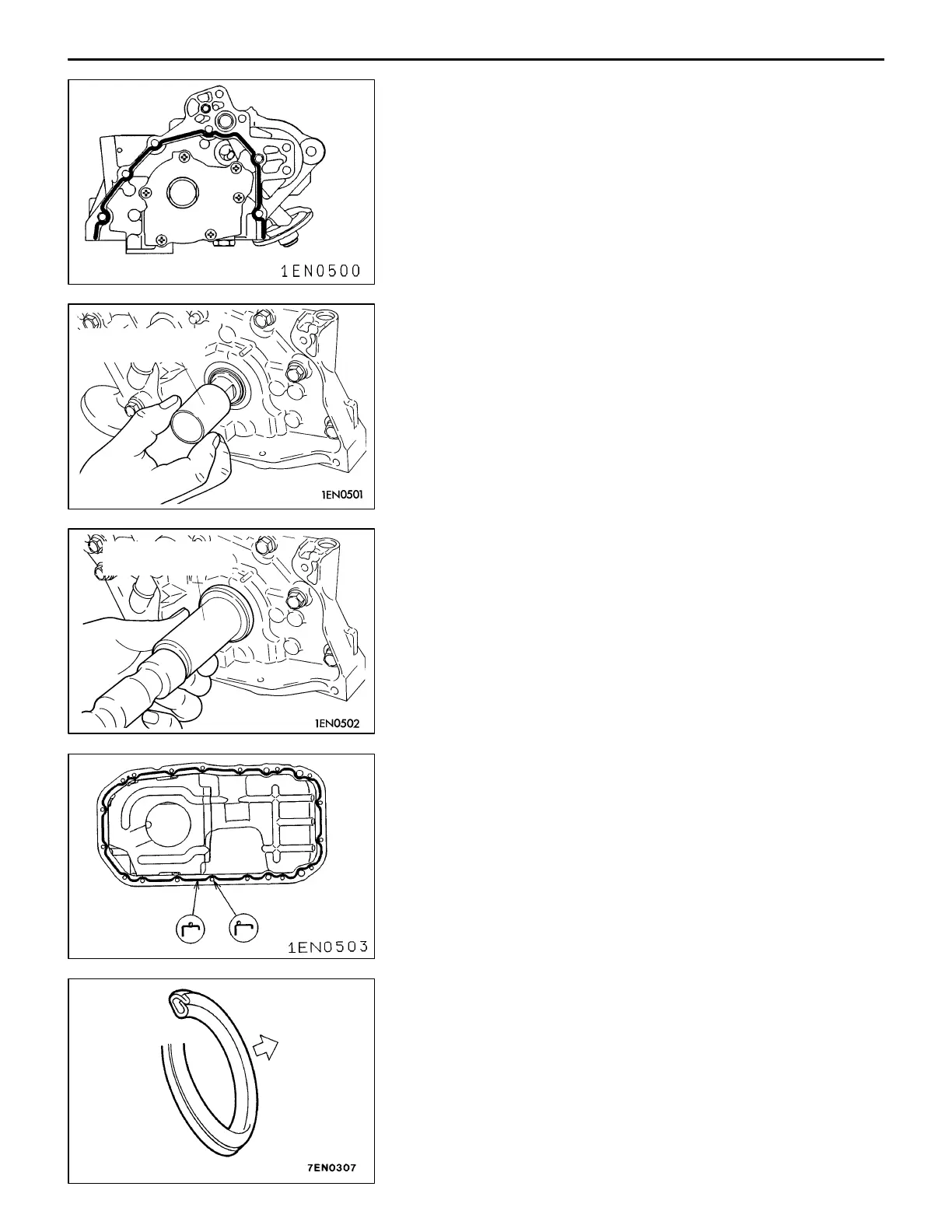

INSTALLATION SERVICE POINTS
"AA FRONT OIL SEAL CASE INSTALLATION
(1) Clean the sealant application surfaces on the cylinder
block and front oil seal case.
(2) Apply a 3 mm bead of form-in-place gasket to the entire
circumference of the oil pan flange.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
"BA FRONT OIL SEAL INSTALLATION
(1) Place the special tool on the crankshaft’s front end and
apply engine oil to the its outer circumference.
(2) Apply engine oil to the oil seal lip, then push the oil seal
along the guide by hand until it touches the front case.
Tap the oil seal into place using the special tool.
"CA OIL PAN INSTALLATION
(1) Clean the mating surfaces of the cylinder block and oil
pan.
(2) Apply a 4 mm bead of form-in-place gasket to the outer
circumference of the oil pan flange.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
"DA DRAIN PLUG GASKET INSTALLATION
(1) Replace the drain plug gasket with a new one. Fit the
new gasket as shown.
PWEE9520-G
E
Apr. 2003Mitsubishi Motors Corporation Revised
MD998305 (M12)
MB991962 (M14)
MD998304 (M12)
MD998306 (M14)
Oil pan side
