Mitsubishi 4G1 series

4G1 ENGINE (E-W) -
Water Pump and Water Hose
11A-6-1
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

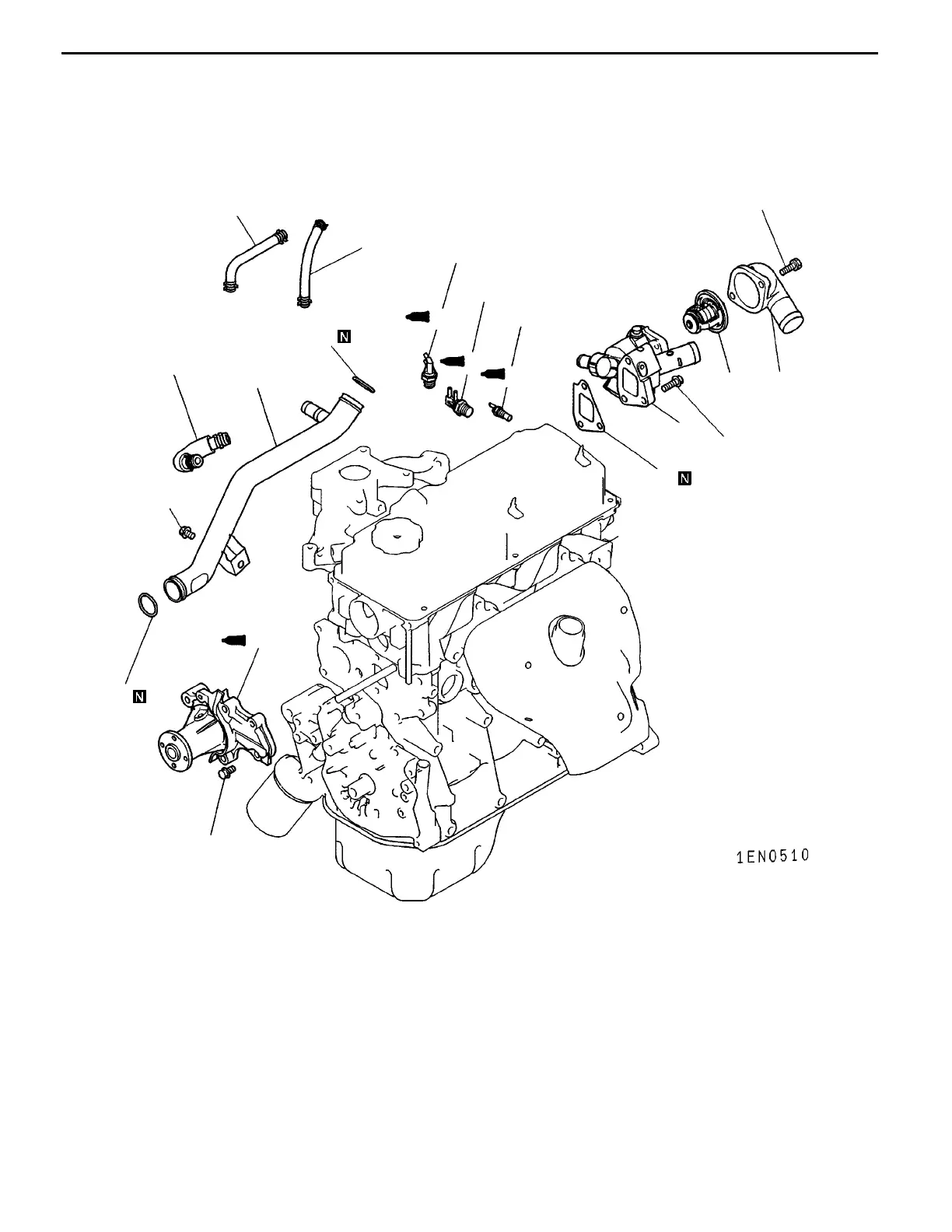

6. WATER PUMP AND WATER HOSE
REMOVAL AND INSTALLATION <SOHC 12-VALVE- CARBURETOR>
11 Nm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
27 Nm
27 Nm
22 Nm
23 Nm
12 Nm
13 Nm
Removal steps
1. Water hose
2. Water hose
3. Water hose
"
F
A
4. Thermo valve <engines with EGR>
"
F
A
5. Thermo valve
"
D
A
6. Engine coolant temperature gauge
unit
7. Water inlet fitting
"
C
A
8. Thermostat
9. Thermostat case
10. Gasket
"
B
A
11. Water inlet pipe
"
B
A
12. O-ring
"
B
A
13. O-ring
"
A
A
14. Water pump
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Revised
