4G1 ENGINE (E–W) – Alternator and Ignition System
11A-3-4
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

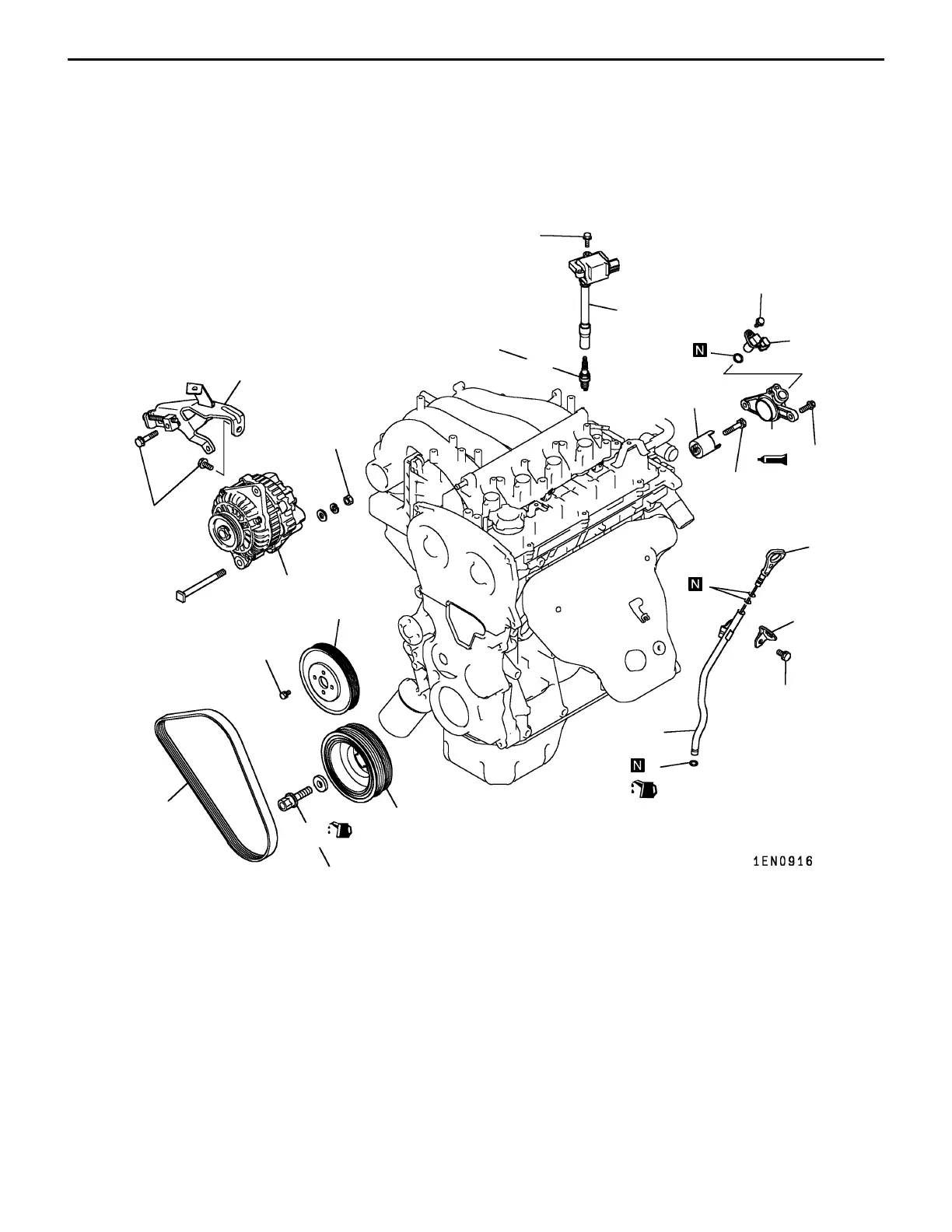

REMOVAL AND INSTALLATION <DOHC–GDI>
22 Nm
7
44 Nm
5
125 Nm
9
10
4
2
19 Nm
1
25 Nm
15
13 Nm
6
12
10 Nm
9 Nm
21 Nm
3
14
11
13
9 Nm
8
Removal steps
1. Oil level gauge
2. Engine hanger
3. Oil level gauge guide
4. O-ring
5. Drive belt
6. Water pump pulley
7. Alternator brace
8. Alternator assembly
AA""BA 9. Crankshaft bolt
"BA 10. Crankshaft pulley
11. Ignition coil
12. Spark plug
13. Cam position sensor
"CA 14. Cam position sensor support
15. Cam position sensing cylinder
PWEE9520-E
E
Feb. 2001Mitsubishi Motors Corporation Revised
