4G1 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8a-2
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
REMOVAL SERVICE POINT
A
A
"
LASH ADJUSTER REMOVAL
Caution
If the lash adjuster is to be reused, be sure to clean
and inspect it before installation. (Refer to 11A-8a-4.)
INSTALLATION SERVICE POINTS
"
A
A
LASH ADJUSTER INSTALLATION
Caution
If the lash adjuster is to be reused, be sure to clean
and inspect it before installation. (Refer to 11A-8a-4.)
While using care not to spill diesel fuel in the lash adjuster,
install the lash adjuster on the rocker arm.
"
B
A
EXHAUST CAMSHAFT / INTAKE CAMSHAFT
INSTALLATION
(1) Turn the crankshaft to place the No. 1 cylinder at top
dead center.

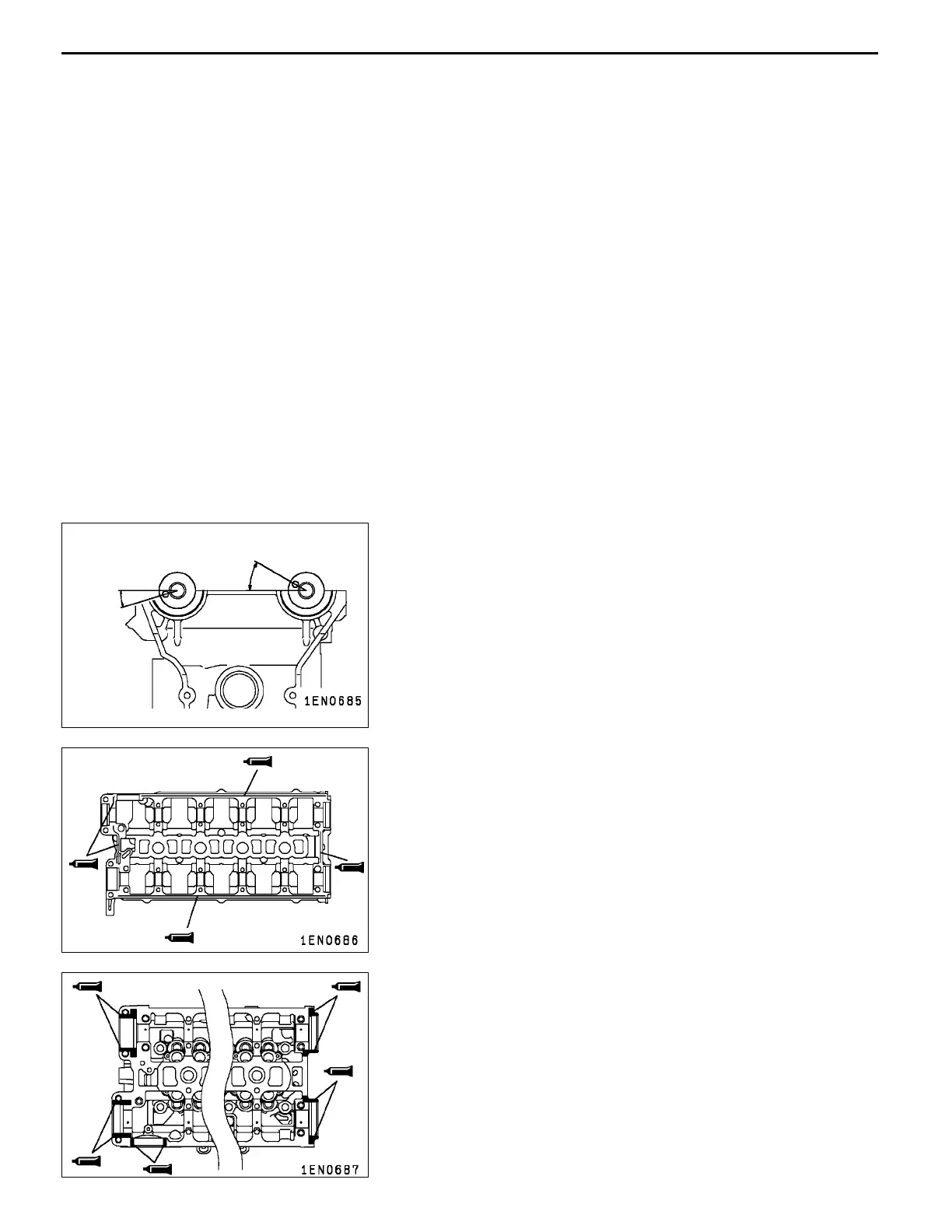

(2) Place dowel pins of the camshafts in the positions shown
in the illustration.
"
C
A
BEAM CAMSHAFT CAP INSTALLATION
(1) Remove deposits from the liquid gasket coating surfaces
of the beam camshaft cap and the cylinder head.
(2) Apply liquid gasket to the five grooves on the bottom
surface of the beam camshaft cap by squeezing it to
a thickness of 3 mm.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
NOTE
Install the beam camshaft cap within 15 minutes of
application of liquid gasket.
(3) Apply a suitable amount of liquid gasket to the ten positions
as shown on the top surface of the cylinder head.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
NOTE
Install the beam camshaft cap within 15 minutes after
application of liquid gasket.
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Added
Approx.
17
_
Approx.
30
_
