4G1 ENGINE (E–W) – Alternator and Ignition System
11A-3-3
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

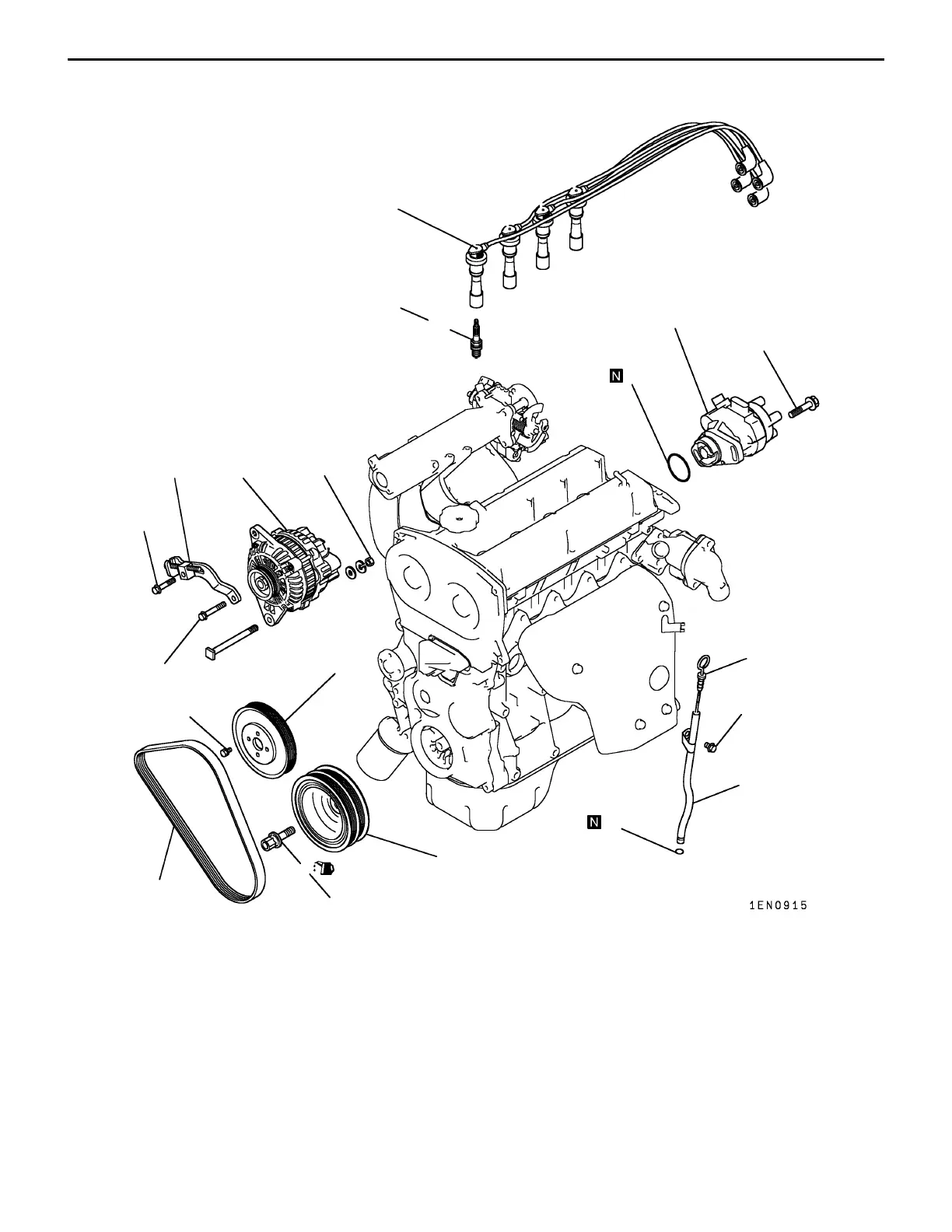

REMOVAL AND INSTALLATION <DOHC>
22 Nm
6
7
44 Nm
23 Nm
4
125 Nm
8
9
3
2
23 Nm
1
25 Nm
10
13
12
11 Nm
9 Nm
5
11
Removal steps
1. Oil level gauge
2. Oil level gauge guide
3. O-ring
4. Drive belt*
5. Water pump pulley
6. Alternator brace
7. Alternator
AA""BA 8. Crankshaft bolt
"BA 9. Crankshaft pulley
10. Spark plug cable
11. Spark plug
"AA 12. Distributor
13. O-ring
NOTE
*: For details of adjustment, refer to the relevant model’s
chassis workshop manual.
PWEE9520-E
E
Feb. 2001Mitsubishi Motors Corporation Revised
