4G1 ENGINE (E–W) Timing Belt
11A-4-5
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

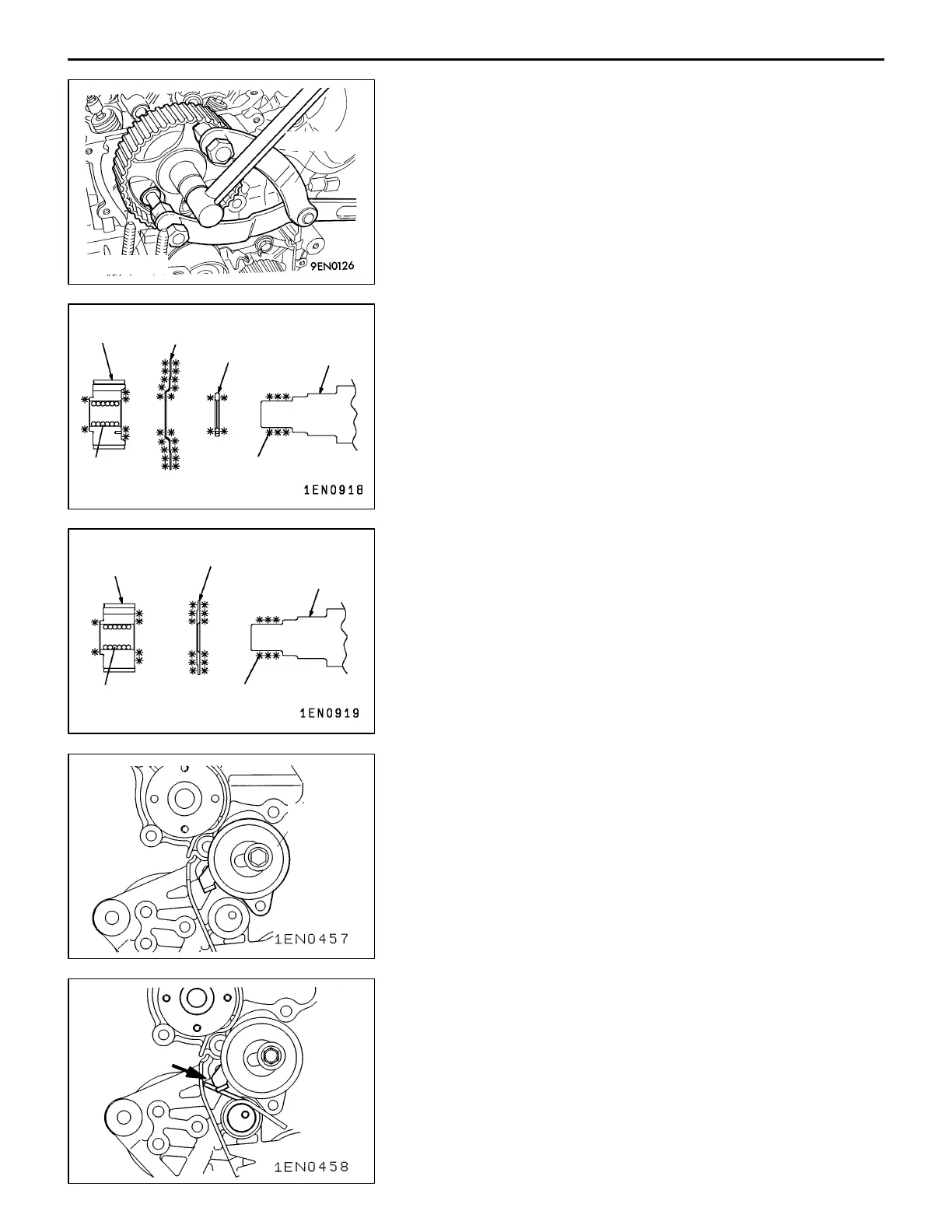

INSTALLATION SERVICE POINTS
"AA CAMSHAFT SPROCKET BOLT INSTALLATION
(1) Using the special tools shown in the illustration, lock the
camshaft sprocket in position.
(2) Tighten the camshaft sprocket bolt to the specified torque.
"BA SENSING BLADE / SPACER / FLANGE /
CRANKSHAFT SPROCKET
Type with crank angle sensor:
(1) Clean the hole in the crankshaft sprocket.
(2) Clean and degrease the mating surfaces of the crankshaft
sprocket and crankshaft; sensing blade; and spacer.
NOTE
Degreasing is necessary to prevent decrease in friction
between the mating surfaces due to presence of oil.
Type without crank angle sensor:
(1) Clean the hole in the crankshaft sprocket.
(2) Clean and degrease the crankshaft sprocket, flange, and
sprocket fitting surface of the crankshaft.
NOTE
Degreasing is necessary to prevent decrease in friction
between the mating surfaces due to presence of oil.
"CA TIMING BELT TENSIONER / TENSIONER SPRING
INSTALLATION
(1) Lock the timing belt tensioner in the illustrated position.
(2) Fit one of the tensioner spring projections over the hooked
portion of the timing belt tensioner and fit the tensioner
onto the oil pump case.
PWEE9520-E
E
Feb. 2001Mitsubishi Motors Corporation Revised
MB990767
MD998715
Sensing
blade
Crankshaft
sprocket
Degrease
Clean
Spacer
Crankshaft
Crankshaft
Crankshaft
sprocket
Degrease
Clean
Flange
Timing belt
tensioner
