Fuel System (GDI)
11A-7a-1
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

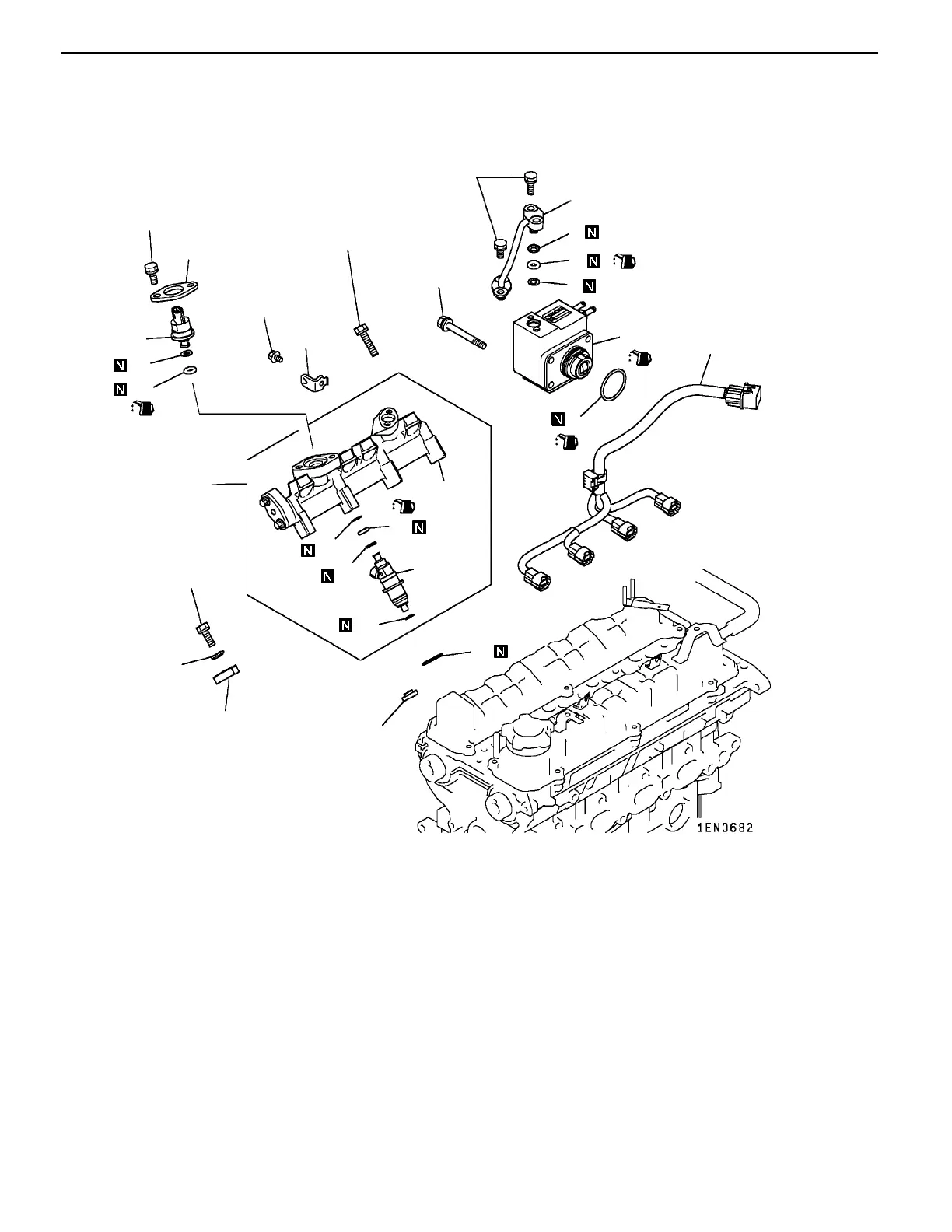

FUEL SYSTEM (GDI)
REMOVAL AND INSTALLATION
5
12 Nm
9
24 Nm
20
8
11
10
4
3
12
12 Nm
9.8 Nm
2
17 Nm
15
23 Nm
13
14
16
17
7
19
21
22
18
1
23
6
Removal steps
1. Injector harness
"
E
A
2. Fuel pipe
"
E
A
3. Backup ring
"
E
A
4. O-ring
"
E
A
5. Backup ring
"
E
A
6. Fuel pump
7. O-ring
8. Flange
"
D
A
9. Fuel pressure sensor
"
D
A
10. O-ring
"
D
A
11. Backup ring
12. Harness bracket
13. Washer
14. Injector holder
"
C
A
15. Delivery pipe and injector
16. Insulator
17. Injector gasket
"
B
A
18. Corrugate washer
"
A
A
19. Backup ring
"
A
A
20. O-ring
"
A
A
21. Backup ring
22. Injector
23. Delivery pipe
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Added
