4G1 ENGINE (E-W) -
Timing Belt
11A-4-3
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

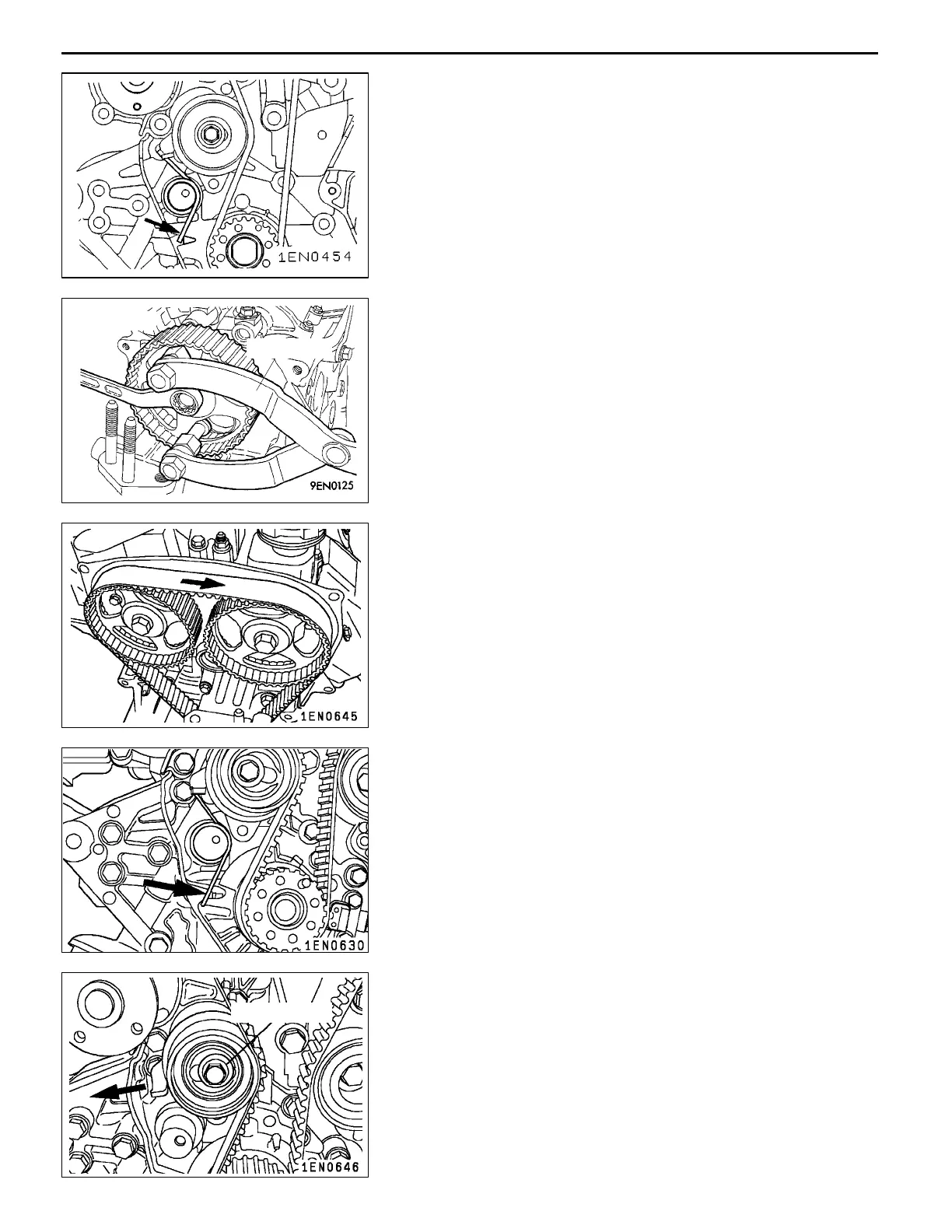

REMOVAL SERVICE POINTS
A
A
"
TIMING BELT / TENSIONER SPRING / TIMING
BELT TENSIONER REMOVAL
(1) Using pliers, grip the tensioner spring projection (marked
“A” in the diagram)and remove it from the oil pump case
stopper. Then, remove the tensioner spring.
(2) Remove the timing belt tensioner.
(3) If the timing belt is to be reused, chalk an arrow on the
belt to indicate the direction of rotation before removing
it. This will ensure the timing belt is fitted correctly when
reused.
A
B
"
CAMSHAFT SPROCKET BOLT REMOVAL
(1) Using the special tools shown in the illustration, lock the
camshaft sprocket in position.
(2) Loosen the camshaft sprocket bolt.
A
C
"
TIMING BELT REMOVAL
(1) If the timing belt is to be refused, it is necessary to install
it in the same direction as it was before. Mark an arrow
that shows the direction of rotation on the back surface
of the timing belt with chalk, etc.
(2) Using pliers and the like, hold the tensioner spring at
the illustrated position, and remove the spring.
Caution
Do not cause the end of the tensioner spring to give
damage to the timing belt.
(3) Loosen the timing belt tensioner securing bolt.
(4) Move the timing belt tensioner in the direction shown
to remove the timing belt.
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Revised
MB990767
MD998715
Securing bolt
