4G1 ENGINE (E-W) -
Cylinder Head and Valves
4G1 ENGINE (E-W) -
Cylinder Head and Valves
11A-9-10
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
"
B
A

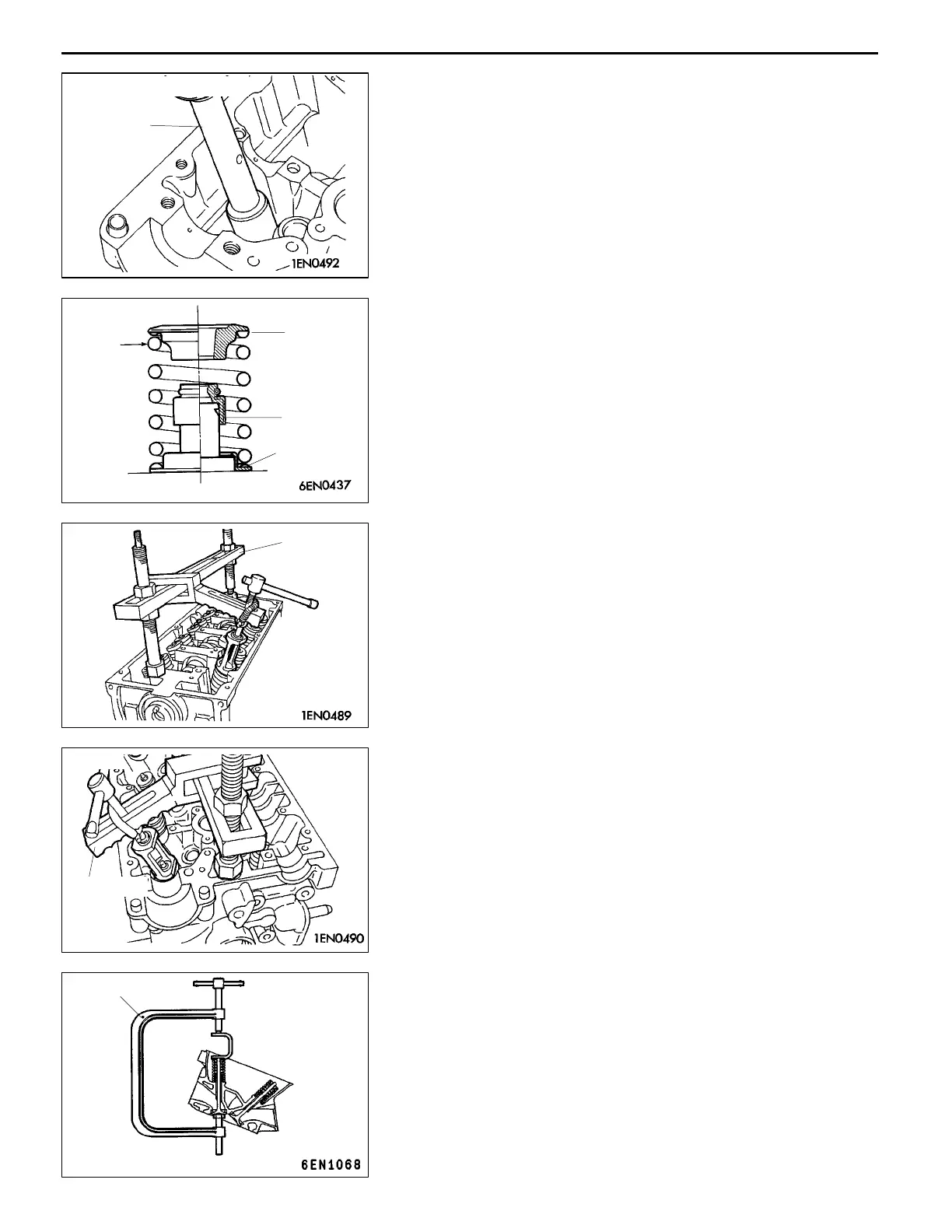

VALVE SPRING INSTALLATION
(1) Install the valve spring such that its painted end is on
the rocker arm side.
"
C
A
RETAINER LOCK INSTALLATION
(1) The valve spring, if excessively compressed, causes the
bottom end of retainer to be in contact with the stem seal,
and damage it.
SOHC 16-VALVE, DOHC
MB991671
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Revised
Painted
end
Spring
retainer
Stem seal
Spring seat
MD998772
SOHC
DOHC
MD998772
MD998735
