Mitsubishi 4G1 series

4G1 ENGINE (E-W) -
Water Pump and Water Hose
11A-6-4
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

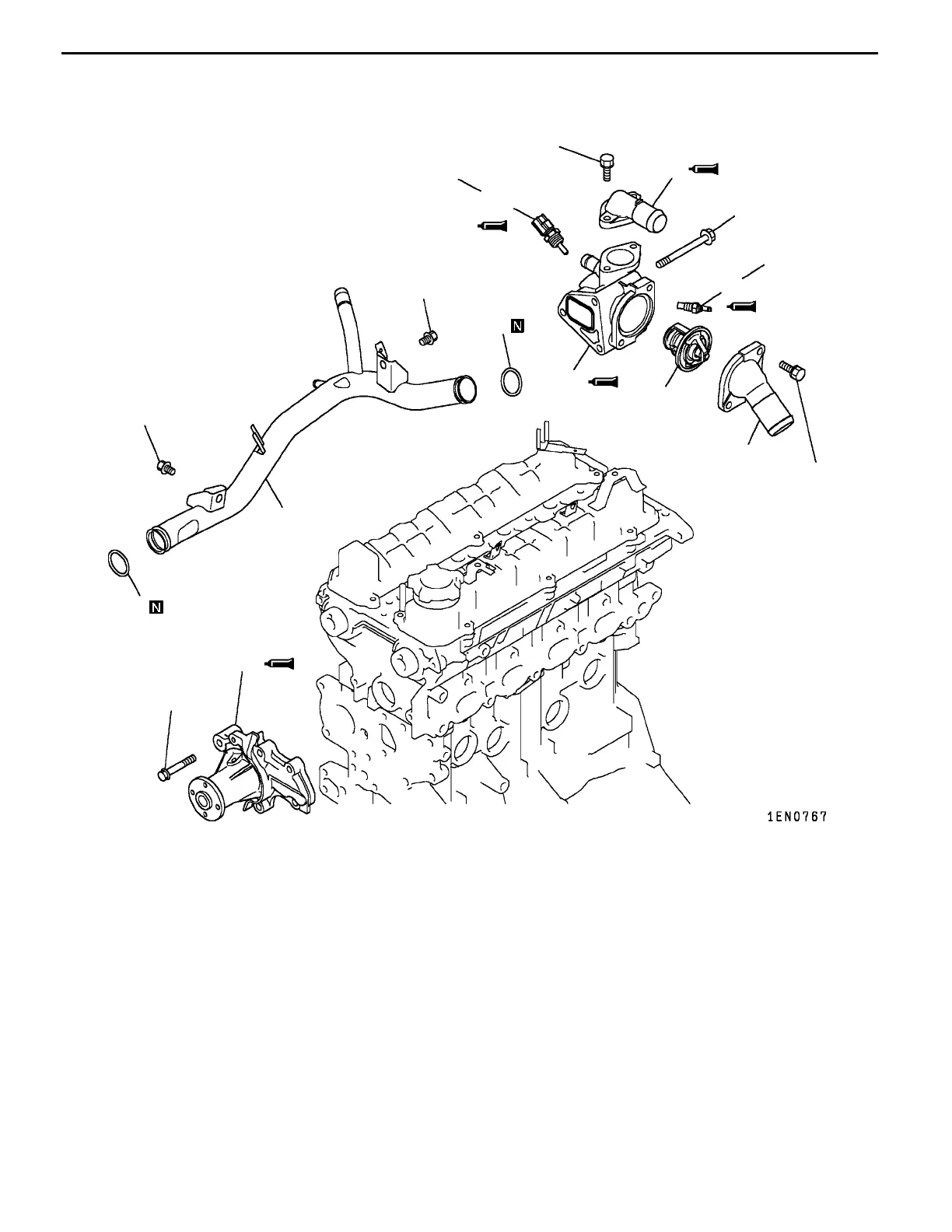

REMOVAL AND INSTALLATION <DOHC-GDI>
1
2
4
5
6
7
8
3
8
9
22 Nm
12 Nm
13 Nm
29 Nm
12 Nm
22 Nm
23 Nm
11 Nm
Removal steps
"
H
A
1. Water outlet fitting
2. Water inlet fitting
"
C
A
3. Thermostat
"
D
A
4. Engine coolant temperature gauge
unit
"
E
A
5. Engine coolant temperature sensor
"
G
A
6. Thermostat housing
"
B
A
7. Water inlet pipe
"
B
A
8. O-ring
"
A
A
9. Water pump
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Revised
