Mitsubishi FX1N Series Programming Manual

FX Series Programmable Controlers Applied Instructions 5
5-193
For GX Developer
1) Select “Parameters”
2) Select “PLC Parameter”

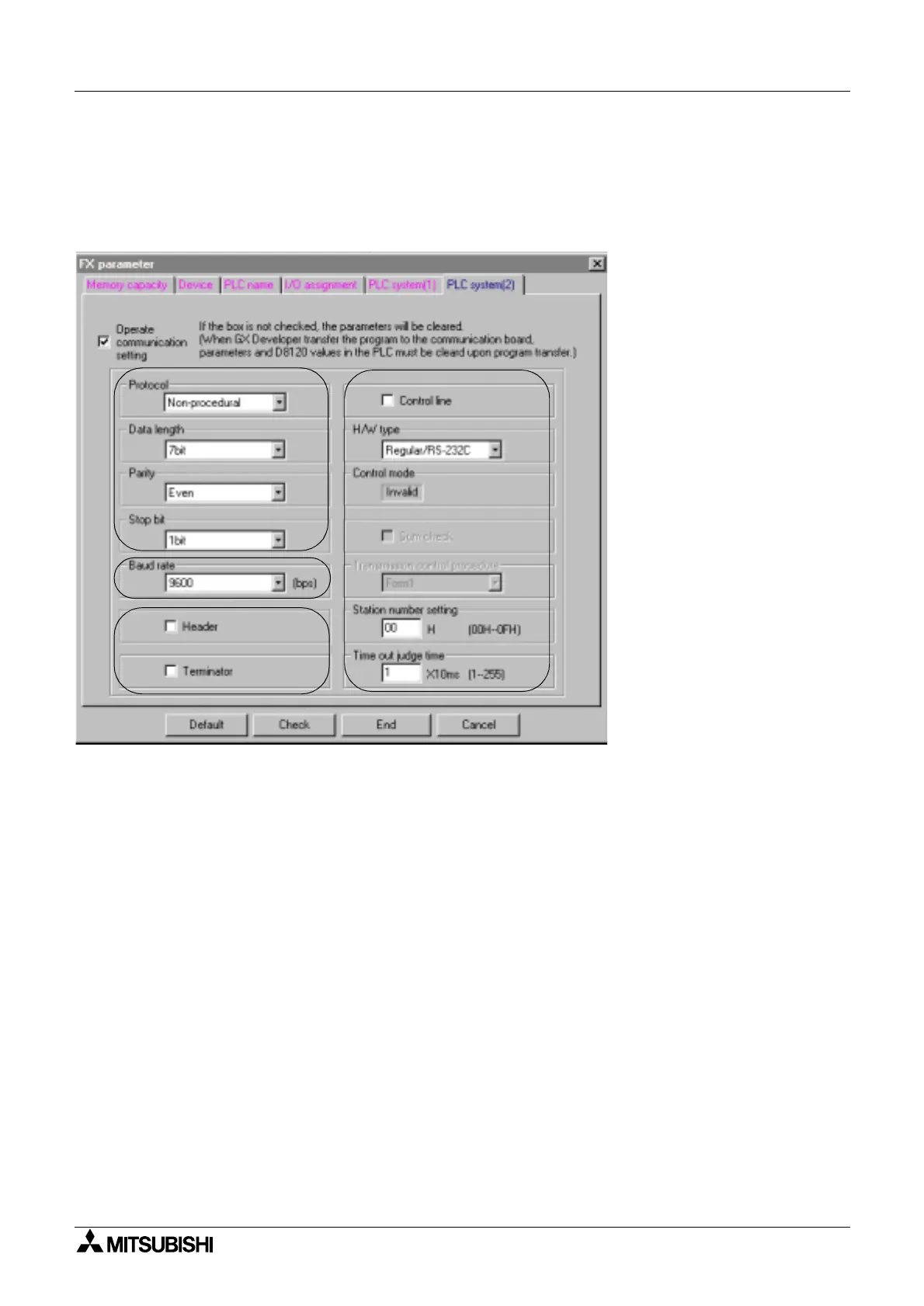

3) Select “PLC System (2)” and set as shown below.
a) Set these parameters as
show on the left.
DO NOT select “Link”
b) Select either 19200, 9600 or
4800. This value should be
the same as set in the
inverter.
c) These parameters do not
affect communication with
the inverter.
a
b
c
c

Mitsubishi FX1N Series Specifications

General

Programming Language	Ladder Logic
Output Type	Relay, Transistor
Operating Temperature	0 to 55°C
Power Supply	100-240V AC or 24V DC
Program Capacity	8K steps
Communication Ports	RS-422
Data Memory	8000 words
High-speed Counters	Up to 6 channels
Expansion Modules	Available
Pulse Output	2 points
