183
FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
6 Output Specification and External Wiring
6.4 Triac (SSR) Output [FX2N-16EYS]
1
Outline
2
External
Dimensions
3
Generic
Specifications
4
Power Supply
Specifications
5
Input
Specifications
6
Output
Specifications
7
Examples of
Wiring for
Various Uses
8
Terminal Block
9
CC-Link/LT
Master FX
3UC
(LT only)
10
Display module
FX
3UC
(LT only)

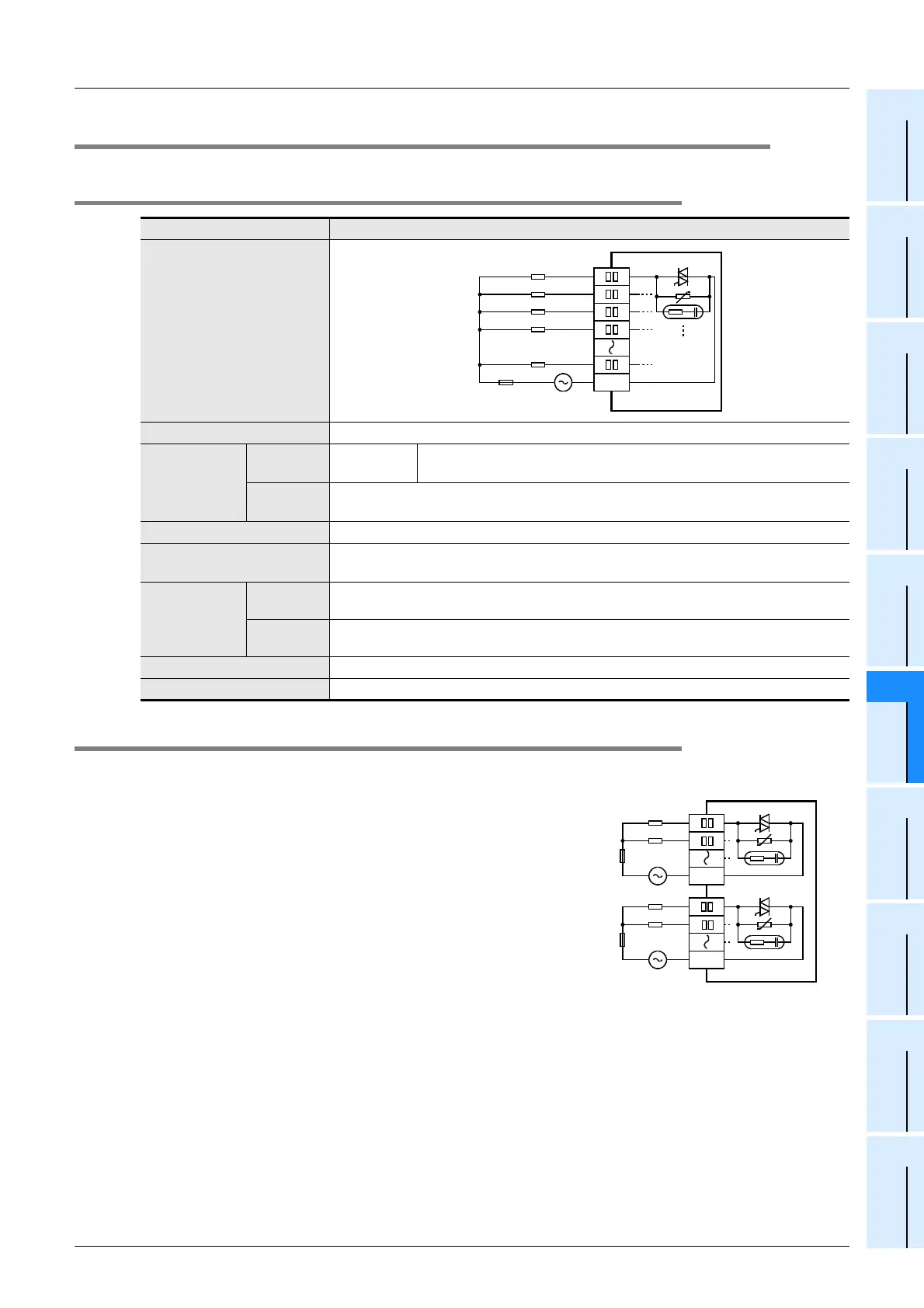

6.4 Triac (SSR) Output [FX2N-16EYS]
6.4.1 Specifications
6.4.2 Handling of triac output
1. Output terminals
On the triac output type units/blocks, one common terminal is
used for 8 points.
Therefore, the common terminal blocks can drive loads of
different circuit voltage systems (for example, 100V AC and
200V AC).
2. Circuit insulation
The PLC internal circuit and the output element (triac) are insulated with a photo-thyristor.
The common terminal blocks are separate from one another.
3. Display of operation
When the photo-thyristor is driven, the LED is lit, and the output triac is turned on.
4. Response time
The time from when the photo-thyristor is driven or shut down until the output triac is turned on and until it is
turned off is 1ms or less and 10ms or less, respectively.
Item Triac output specification
Output circuit diagram
External power supply 85 to 242V AC
Max.load
Resistance
load
0.3A/point
The total load current per common should be as follows:
8 output points/common: 0.8A or less
Inductive
load
15VA/100V AC
36VA/200V AC
Minimum load 0.4VA/100V AC, 1.6VA/200V AC
Open circuit leakage
current
1mA/100V AC, 2mA/200V AC
Response time
OFF → ON 1ms or less
ON → OFF 10ms or less
Circuit insulation Photo-thyristor insulation
Display of output operation LED on panel lights when photo-thyristor is driven.
PLC
Load
External
power supply
Y 0
Y 1
Y 2
COM1
Y 3
Fuse
U
Y 7
PLC
Load
100V AC
Fuse
Y 0
Y 1
COM1
Load
200V AC
Fuse
Y 0
Y 1
COM2
FX
2N
-16EYS
U
U
To Next Page
