206
FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
7 Examples of Wiring for Various Uses
7.7 Input Matrix [MTR (FNC 52)]
3. Input extension block + Output extension block
Example of program

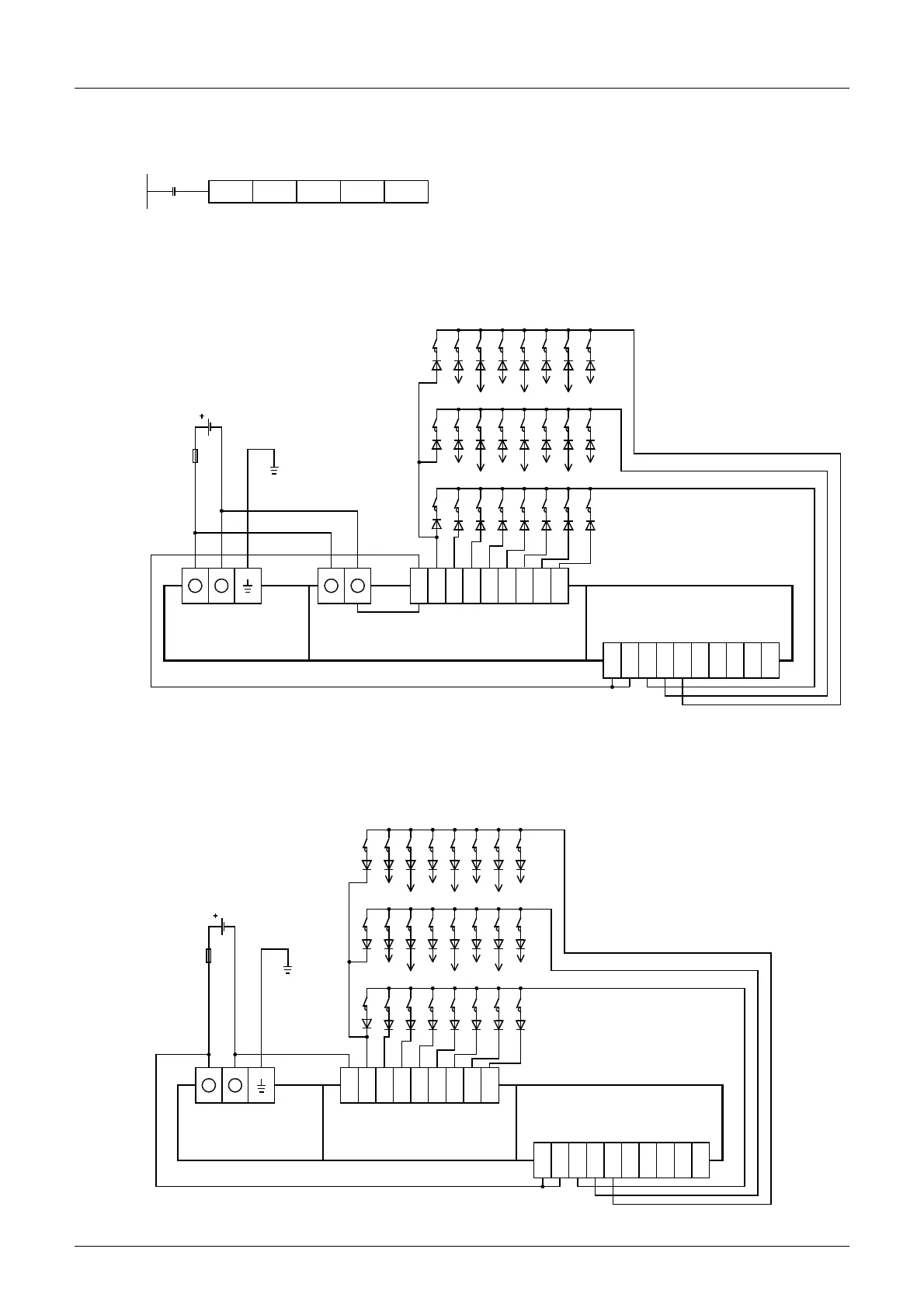

Example of wiring
1) In the case of sink wiring
Use the sink only input, sink only output type main unit, a sink only input type input extension block and a
transistor output (sink only output) type output extension block. The wiring example is the [FX
3UC-32MT/
D or FX
3UC-32MT-LT] + input extension block [FX2NC-16EX] + output extension block [FX2NC-16EYT].
2) In the case of source wiring
Use the sink/source common input, source only output type main unit, a sink/source common input type
input extension block and a transistor output (source only output) type output extension block. The wiring
example is the [FX
3UC-32MT/DSS] + input extension block [FX2NC-16EX-DS] + output extension block
[FX2NC-16EYT-DSS].
MTR
M8000
X020 Y020 M30 K3
COM1
FX 2NC -16EYT
Y020 Y021 Y022 Y023 Y024 Y025 Y026 Y027
M31 M32 M33 M34 M35 M36 M37
0.1A 50V
diode is
necessary
.
Transistor output (sink)
COM1
X022 X023 X024 X025 X026 X027
COM
X020 X021
Sink input
M40 M41 M42 M43 M44 M45 M46 M47
X021 X023 X025 X027
X022 X024 X026
M30 M50
M51 M52 M53 M54 M55 M56 M57
X021 X023 X025 X027
X022 X024 X026
FX 2NC -16EXFX 3UC -32MT/D
-
+
-
+
24V DC
Class D
grounding*
Fuse
* The grounding resistance should be 100
Ω or less.
+V0
FX 2NC -16EYT-DSS
Y020 Y021 Y022 Y023 Y024 Y025 Y026 Y027
M31 M32 M33 M34 M35 M36 M37
0.1A 50V
diode is
necessary.
Transistor output (source)
+V0
X022 X023 X024 X025 X026 X027
COM0
X020 X021
Source input
M40 M41 M42 M43 M44 M45 M46 M47
X021 X023 X025 X027
X022 X024 X026
M30 M50
M51 M52 M53 M54 M55 M56 M57
X021 X023 X025 X027
X022 X024 X026
FX 2NC -16EX-DSFX 3UC -32MT/DSS
-
+
24V DC
Class D
grounding*
Fuse
* The
g
roundin
g
resistance should be 100 Ω or less.
