7.8 Seven Segment with Latch [SEGL (FNC 74)/BCD (FNC 18)]
7.8.1 When SEGL instructions are used
This subsection gives examples of wiring for displaying the current value of D100 on the 4-digit 7-segment
display.
1. Main unit
Example of program

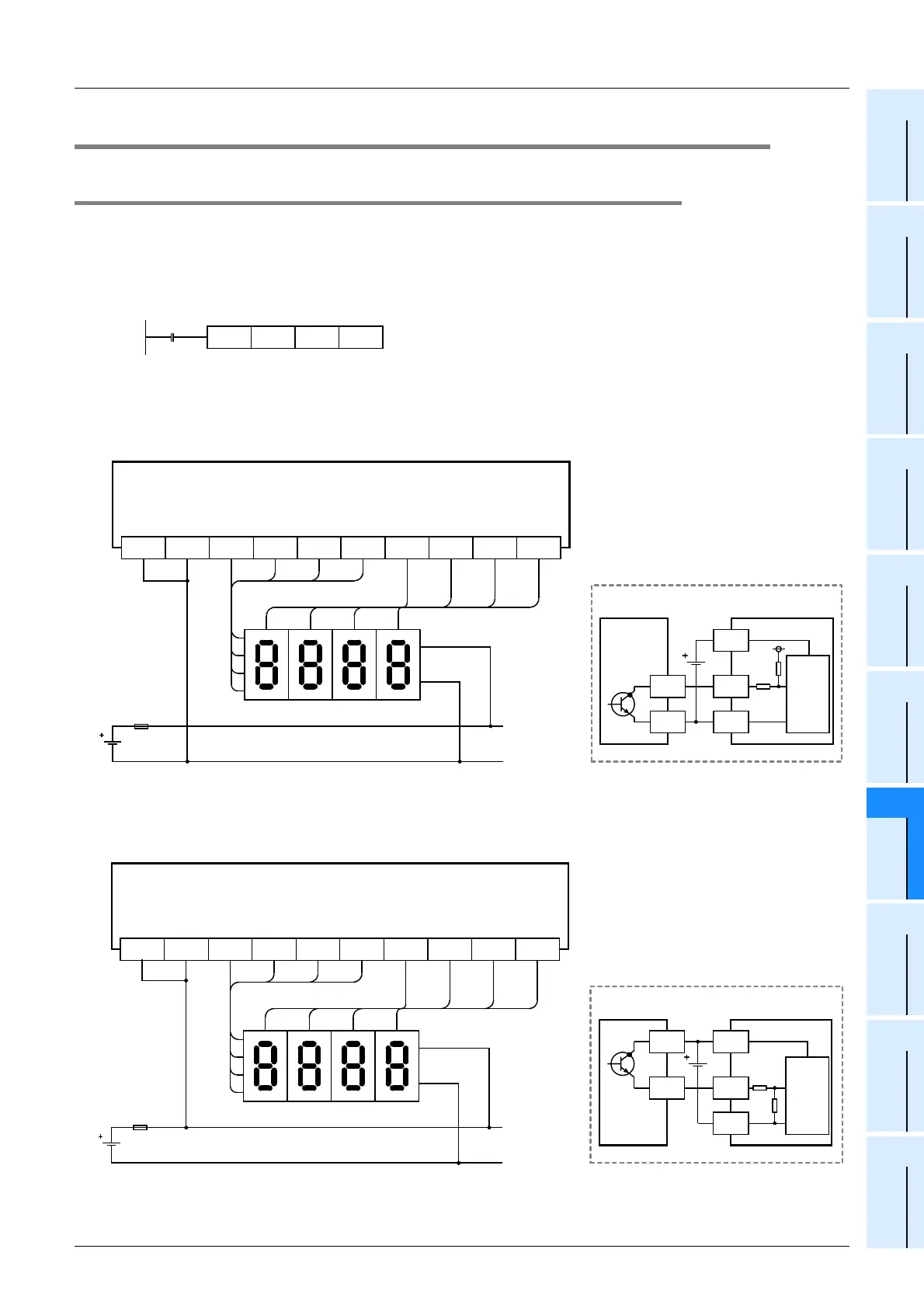

Example of wiring
1) In the case of sink wiring
Use the sink only input, sink only output type main unit.
The wiring example is the FX
3UC-32MT/D or FX3UC-32MT-LT.
2) In the case of source wiring
Use the sink/source common input, source only output (transistor output) type main unit.
The wiring example is the FX
3UC-32MT/DSS.
SEGL
M8000
D100 Y010 K1
10
3
10
2
10
1
10
0
124
8
10
3
10
2
10
1
10
0
1
2
4
Y010COM1 Y011 Y012 Y013 Y014 Y015 Y016
8
Transistor output (sink)
*
COM1
FX 3UC -32MT/D
FX
3UC -32MT-LT
* Use a 7-segment display with a latch and a built-in BCD decoder.
Signal
-
Internal
circuit
7-segment display
+
Y
COM1
PLC
7-segment display to be used for sink wiring
(in the case of transistor output)
Fuse
Y017
10
3
10
2
10
1
10
0
124
8
10
3
10
2
10
1
10
0
1
2
4
Y010+V0 Y011 Y012 Y013 Y014 Y015 Y016 Y017
8
Transistor output (source)
*
+V0
FX 3UC -32MT/DSS
* Use a 7-segment display with a latch and a built-in BCD decoder.
Fuse
Signal
-
Internal
circuit
7-segment display
+
Y
PLC
+V0
7-segment display to be used for source wiring
(in the case of transistor output)
