FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
8 Terminal Block Specifications and External Wiring
8.2 External Dimensions & Component Names
8.2 External Dimensions & Component Names
No. Name Remarks
[1]
CN1 connector -
[2]
CN2 connector Present at FX-32E-TB. FX-32E-TB/UL
[3]
Operation indicator LED
Present at FX-16EYR-TB, FX-16EYR-ES-TB/UL,
FX-16EYT-TB,FX-16EYT-ES-TB/UL, FX-16EYT-ESS-TB/UL,
FX-16EYT-H-TB,FX-16EYS-TB, FX-16EYS-ES-TB/UL,
[4]
POWER LED Present at FX-16EX-A1-TB
[5]
CN2 terminal block (M3.5 screws) Present at FX-32E-TB, FX-32E-TB/UL
[6]
CN1 terminal block (M3.5 screws) -
[7]
Nameplate -
[8]
DIN rail mounting groove
(DIN rail width: 35mm(1.38"))
-
[9]
DIN rail mounting hook -
FX-16E-TB, FX-16E-TB/UL
FX-16EX-A1-TB
FX-32E-TB, FX-32E-TB/UL
FX-16EYR-TB, FX-16EYR-ES-TB/UL, FX-16EYT-TB,
FX-16EYT-ES-TB/UL, FX-16EYT-ESS-TB/UL,
FX-16EYT-H-TB, FX-16EYS-TB, FX-16EYS-ES-TB/UL
Units: mm (inches)
Accessories: Input/output No. labels,
terminal block arrangement cards

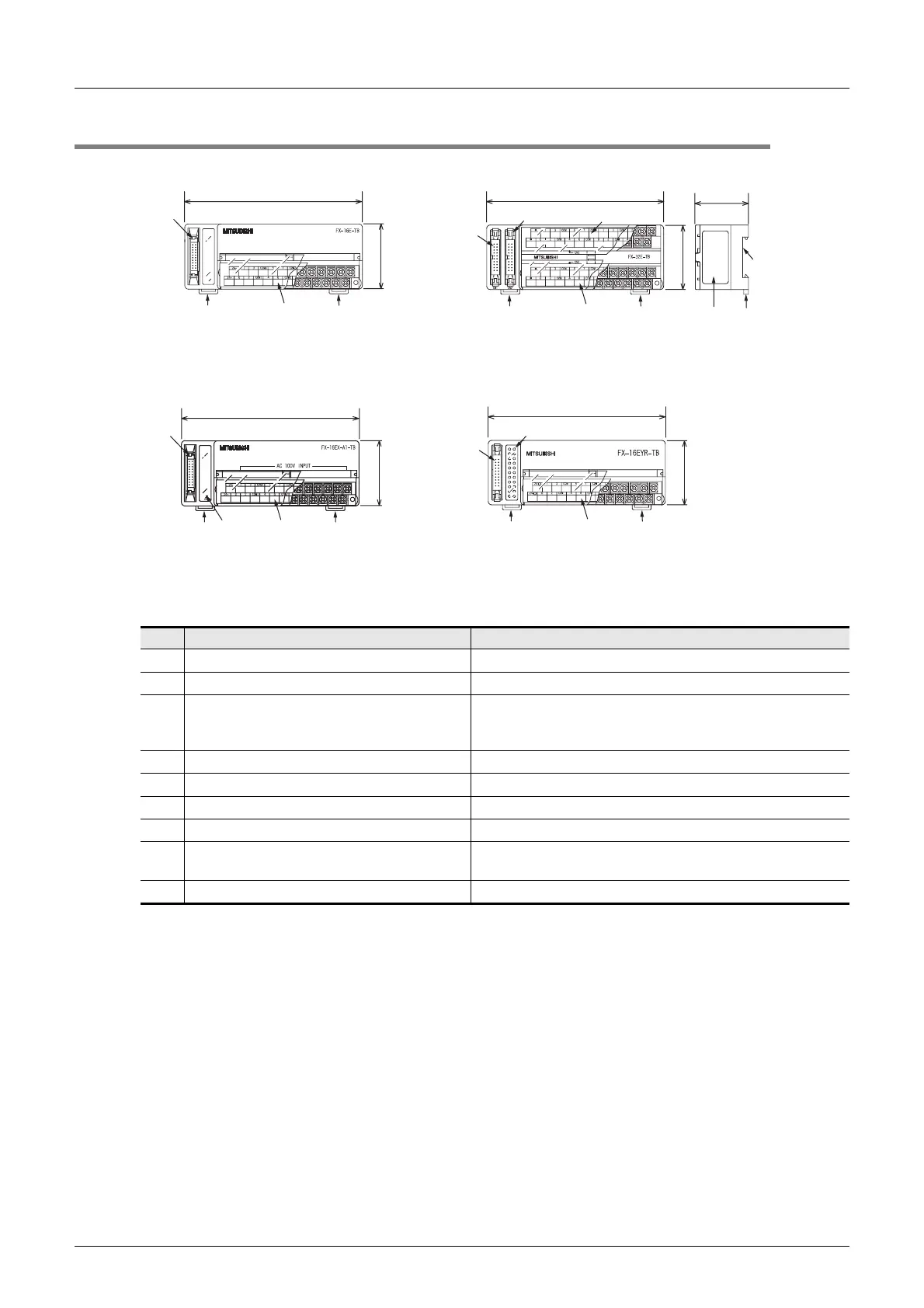

150(5.91")
55(2.17")
[1]
[9] [6] [9]
150(5.91")
55(2.17")
[1]
[9] [4] [6] [9]
150(5.91")
45
(1.78")
55(2.17")
[8]
[1]
[9]
[2] [5]
[6] [9] [7] [9]
150(5.91")
55(2.17")
[3]
[1]
[9] [6] [9]
To Next Page
