Mitsubishi FX3UC Series User Manual

235
FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
8 Terminal Block Specifications and External Wiring
8.10 FX-16EYT(-H)-TB
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)

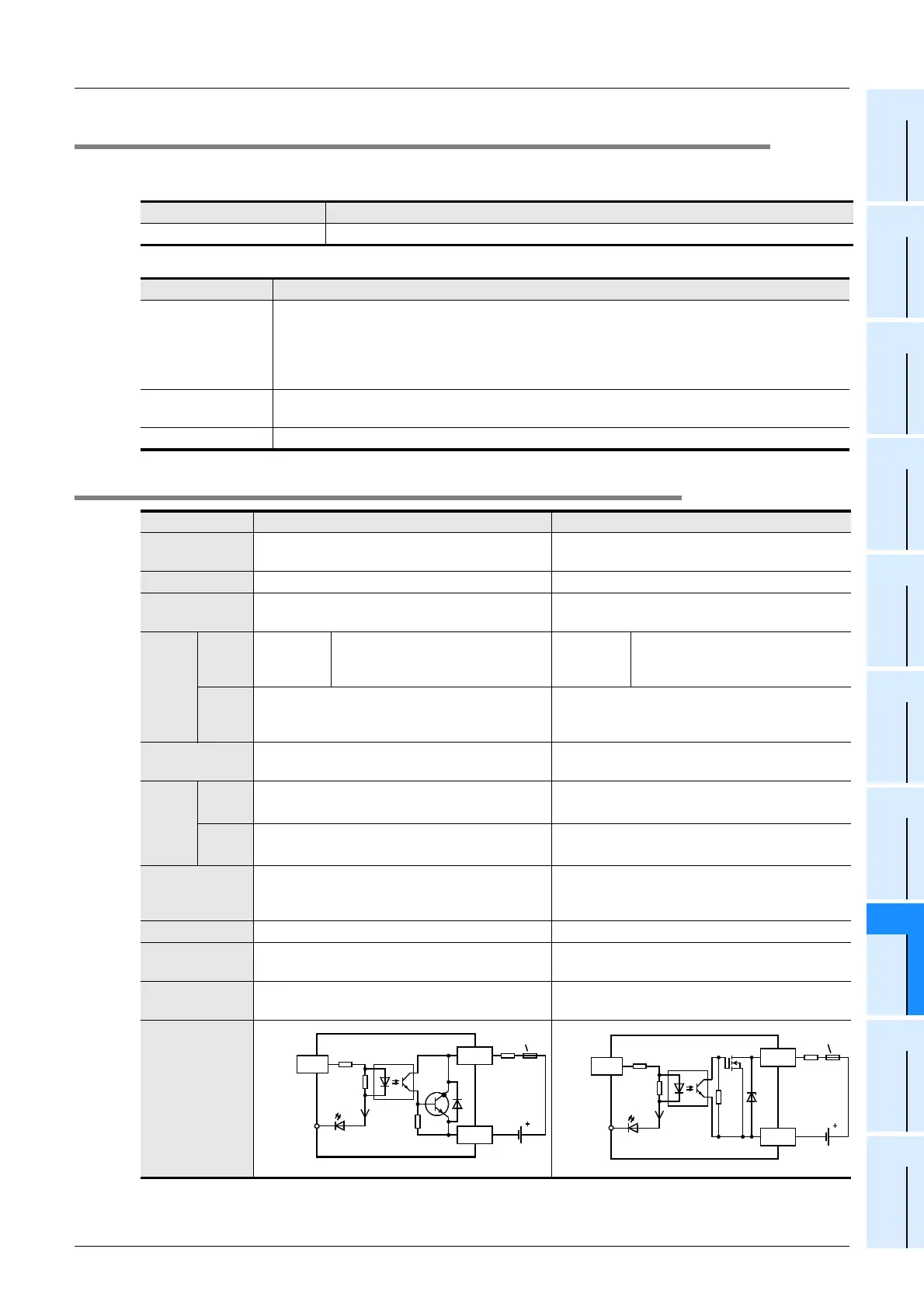

8.10 FX-16EYT(-H)-TB
Connect the FX-16EYT(-H)-TB to the output connector in the main unit or extension block shown in the table
below.
The applications shown below are not supported.
8.10.1 Specifications
*1. This response time does not include the response delay at the PLC.
Output connector
Connectable models FX
3UC-MT/D, FX3UC-32MT-LT, FX2NC-EYT, FX2N-16EYT-C
Unsupported Applications
Pulse output
Pulse Y output (PLSY) instruction, acceleration/deceleration setup (PLSR) instruction, pulse
width modulation (PWM) instruction, DOG search zero return (DSZR) instruction, interruption
positioning (DVIT) instruction, batch data positioning mode (TBL) instruction, absolute current
value read (ABS) instruction, zero return (ZRN) instruction, variable speed pulse output (PLSV)
instruction, drive to increment (DRVI) instruction, drive to absolute (DRVA) instruction
Time division input
Input matrix (MTR) instruction, hexadecimal input (HKY) instruction, digital switch (DSW)
instruction, arrow switch (ARWS) instruction
Time division output Seven segment with latch (SEGL) instruction, print (ASCII Code) (PR) instruction
Item FX-16EYT-TB FX-16EYT-H-TB
Connection
form
Terminal block (M3.5 screw)
The connection with the PLC is the connector.
Terminal block (M3.5 screw)
The connection with the PLC is the connector.
input type/form Transistor/sink output Transistor/sink output
External power
supply
5 to 30V DC 5 to 30V DC
Max.
load
R esis-
tance
load
0.5A/
1points
Make sure that the total load
current of 4 resistance load points
is 0.8A or less.
1A/1points
Make sure that the total load
current of 4 resistance load points
is 3A or less.
Induc-
tive
load
12W/24V DC 24W/24V DC
Open-circuit
leakage current
0.1mA/30V DC 0.1mA/30V DC
Re-
sponse
time
OFF →
ON
*1
0.2ms or less/24V DC 0.3ms or less/24V DC
ON →
OFF
*1
1.5ms or less/24V DC 4ms or less/24V DC
Output
element’s ON
voltage
1.5V 1.5V
Circuit isolation Photocoupler isolation Photocoupler isolation
Operation
indicators
LED lights when photo-thyristor power is
supplied
LED lights when photo-thyristor power is
supplied
Power
consumption
2.7W (112mA 24V DC) 2.7W (112mA 24V DC)
Input/output
circuitry
Photo-
coupler
3.3k Ω
LED
24V DC
7mA
5 to 30V
DC
0 to 7
COMn
Fuse
CN1
Connector
side
External
wiring
24+
Photo-
coupler
LED
0 to 7
COMn
Fuse
CN1
Connector
side
3.3k Ω
24V DC
7mA
External
wiring
5 to 30V
DC
24+
