FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
9 CC-Link/LT Built-in master ability (Only FX3UC-32MT-LT)
9.8 Connection of Cables, Connectors and Terminating Resistors
FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition

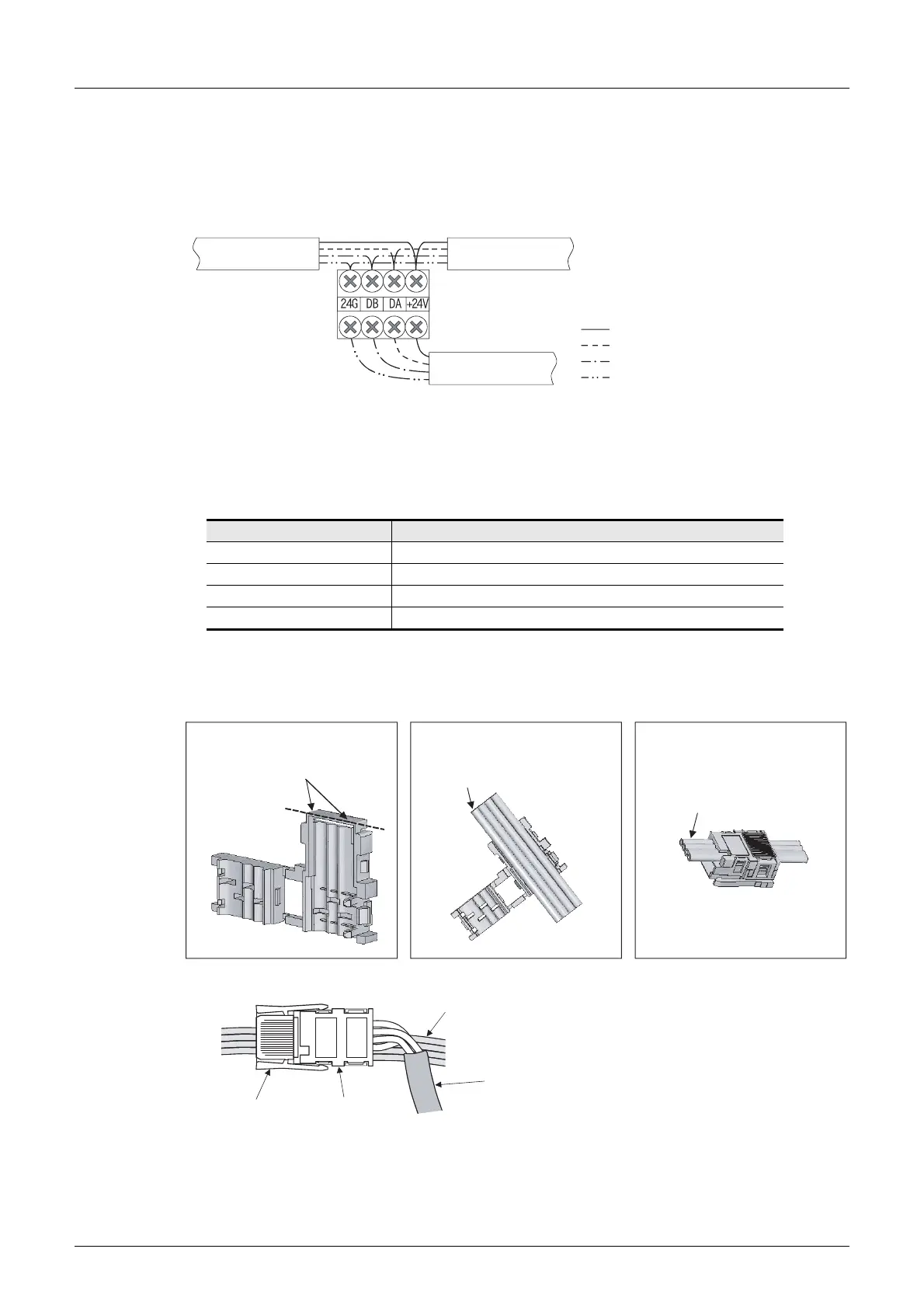

2) T-branch processing procedure
a) When using a terminal block
Applicable attachment: T-branch processing
When wiring a VCTF cable/high flexible cable to a terminal block, connect cables with the same color
together.
Applicable cable: Dedicated flat cable, VCTF cable and high flexible cable
Cautions on use
Align the symbols "+24V", "DA", "DB" and "24G" printed on the dedicated flat cable with the wire
colors of the VCTF cable / high flexible cable as shown in the table below when wiring the
dedicated flat cable to the terminal block "trunk line = VCTF cable, drop line = dedicated flat cable".
Make sure to separate the dedicated flat cable into four independent wires having the marks
"+24V", "DA", "DB" and "24G".
b) When a dedicated flat cable is used as the trunk line
Branch the trunk line using connectors in the same way as the T-branch processing method for the
dedicated flat cable.
Trunk line: Dedicated flat cable Drop line: VCTF cable or high flexible cable
Dedicated flat cable Wire colors in VCTF cable or high flexible cable
+24V Red
DA White
DB Black
24G Green
High flexible cable
VCTF cable/
High flexible cable
Red
White
Black
Green
VCTF cable/
High flexible cable
VCTF cable/
cover with nippers, etc., and
Cut at the root of the tip of the5)
remove the tip
where the T-branch will be set.
Set the cover to the point6)
same way as steps 3) and 4)
of the attachment procedure.
Execute press-fitting in the 7)
Cut off here.
Orange
Orange
Dedicated flat cable
VCTF cable/
High flexible cable
(drop line)
VCTF cable/
High flexible cable
connector
Dedicated flat
cable connector
(trunk line)
