Mitsubishi FX3UC Series User Manual

277
FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
9 CC-Link/LT Built-in master ability (Only FX3UC-32MT-LT)
9.8 Connection of Cables, Connectors and Terminating Resistors
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)

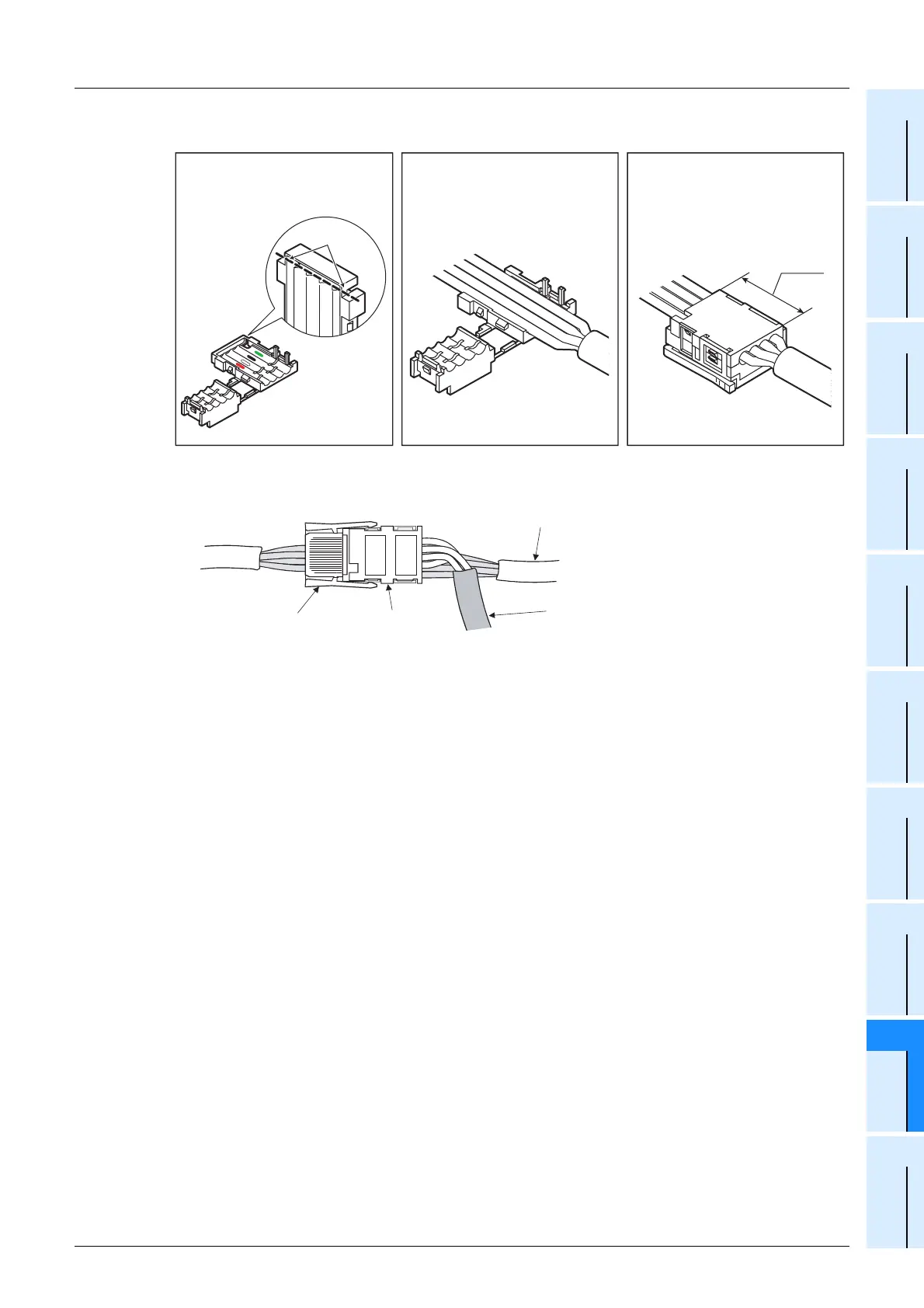

c) When the VCTF cable/high flexible cable is used as the trunk line
Trunk line, Drop line: VCTF cable, High flexible cable
After striping the sheath by 70mm (2.75") or more, perform the procedure for the dedicated flat cable
in the same way as the T-branch.
cover with nippers, etc., and
Cut at the root of the tip of the5)
remove the tip
Cut off here.
where the T-branch will be set.
Set the cover to the point6)
same way as steps 3) and 4)
of the attachment procedure.
22.5mm
(0.88")
Execute press-fitting in the 7)
VCTF cable/High flexible cable
(trunk line)
VCTF cable/High flexible cable
(drop line)
VCTF cable/
High flexible cable
connector
VCTF cable/
High flexible cable
connector
