FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
10 Display Module (Only FX3UC-32MT-LT)
10.21 User Message Display Function
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)
5 Entering User Messages

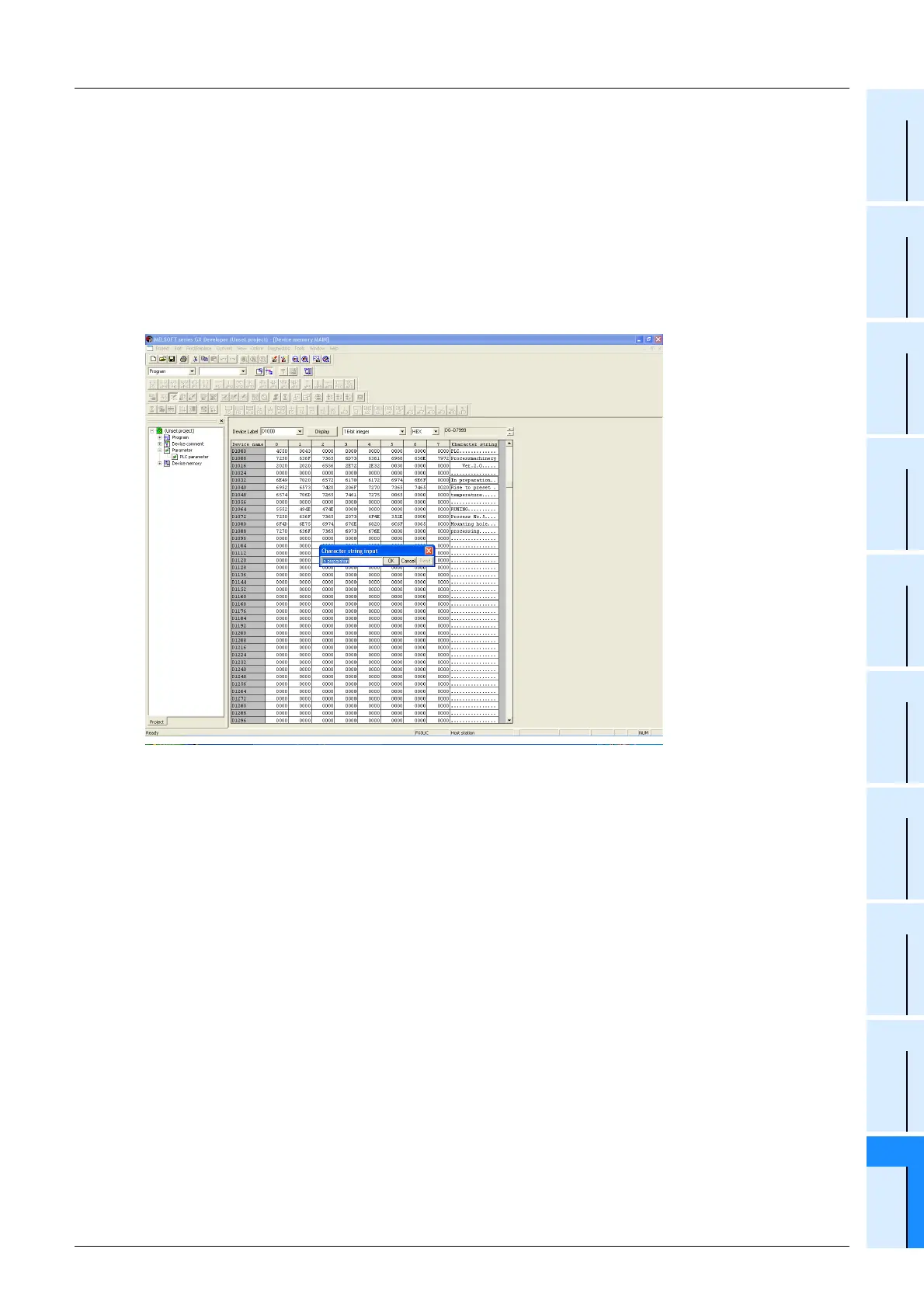

As shown in the illustration below, the dialog box for character string inputs is opened by double-
clicking on GX Developer’s character string display area or the data register display area.
When entering Japanese scripts (Chinese characters, etc.), data input automatically occurs in the
lower order
→ higher order sequence, and the input can therefore be used as it is at the display
module’s user message display.
The GX Developer screen’s character string shown below is for "program example 1".
→ Refer to Subsection 10.21.6 for "program example 1" details.
GX Developer character arrangement precautions:
A single line is comprised of 8 data registers.
To prevent garbled characters when a 2-byte character (shift JIS code) arrangement extends into the next
line, the system replaces those characters with 2 spaces.
([Ex] spaces display at the end of the 1st line and at the beginning of the 2nd line.)
The condition of the display module line must therefore be considered when entering the characters.
Moreover, the 1st character device should be specified for displaying a 1-line character input.
