2 External Dimensions and Terminal Arrangement
2.1 External Dimensions (MASS/Installation/Accessories)
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)
FX3UC/FX2NC Series
• Installation: DIN rail of 35mm (1.38") in
width only
• Accessories: FX
2NC-10BPCB1 crossover
power cable,
Label for indication of
special unit/block number,
Manual supplied with
product

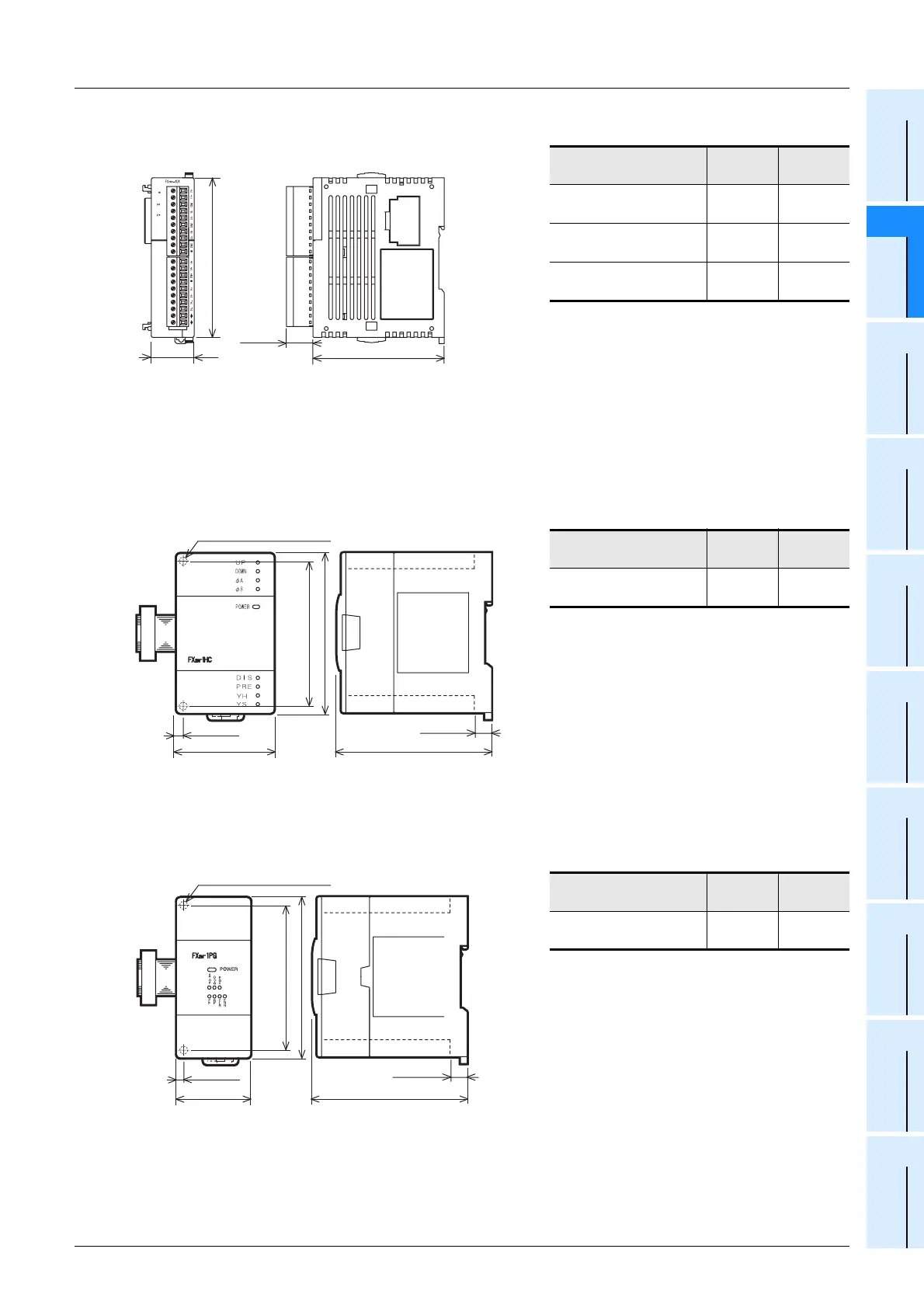

2. High-speed counter
FX2N-1HC
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Label for indication of
special unit/block number,
Manual supplied with
product
• Terminal block: M3 screws
• The extension cable is already connected to
the extension block
3. Pulse output and positioning
FX2N-1PG(-E)
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Label for indication of
special unit/block number,
Manual supplied with
product
• Terminal block: M3 screws
• The extension cable is already connected to
the extension block
Model name W(mm)
MASS
(Weight)
FX
3UC-4AD
20.2
(0.80")
0.13
(0.29lbs)
FX
2NC-4AD
20.2
(0.80")
0.13
(0.29lbs)
FX
2NC-4DA
24.2
(0.96")
0.13
(0.29lbs)
Model name W(mm)
MASS
(Weight)
FX
2N-1HC
55
(2.17")
0.3
(0.66lbs)
Model name W(mm)
MASS
(Weight)
FX
2N-1PG(-E)
43
(1.70")
0.2
(0.44lbs)
Unit:mm (inches)
74(2.92")
15(0.60")
90(3.55")
W
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
W:55(2.17")
2-φ4.5 mounting holes
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
W:43(1.70")
2-φ4.5 mounting holes
