1.2 Rough Pre-operation Procedure
1.2 Rough Pre-operation Procedure

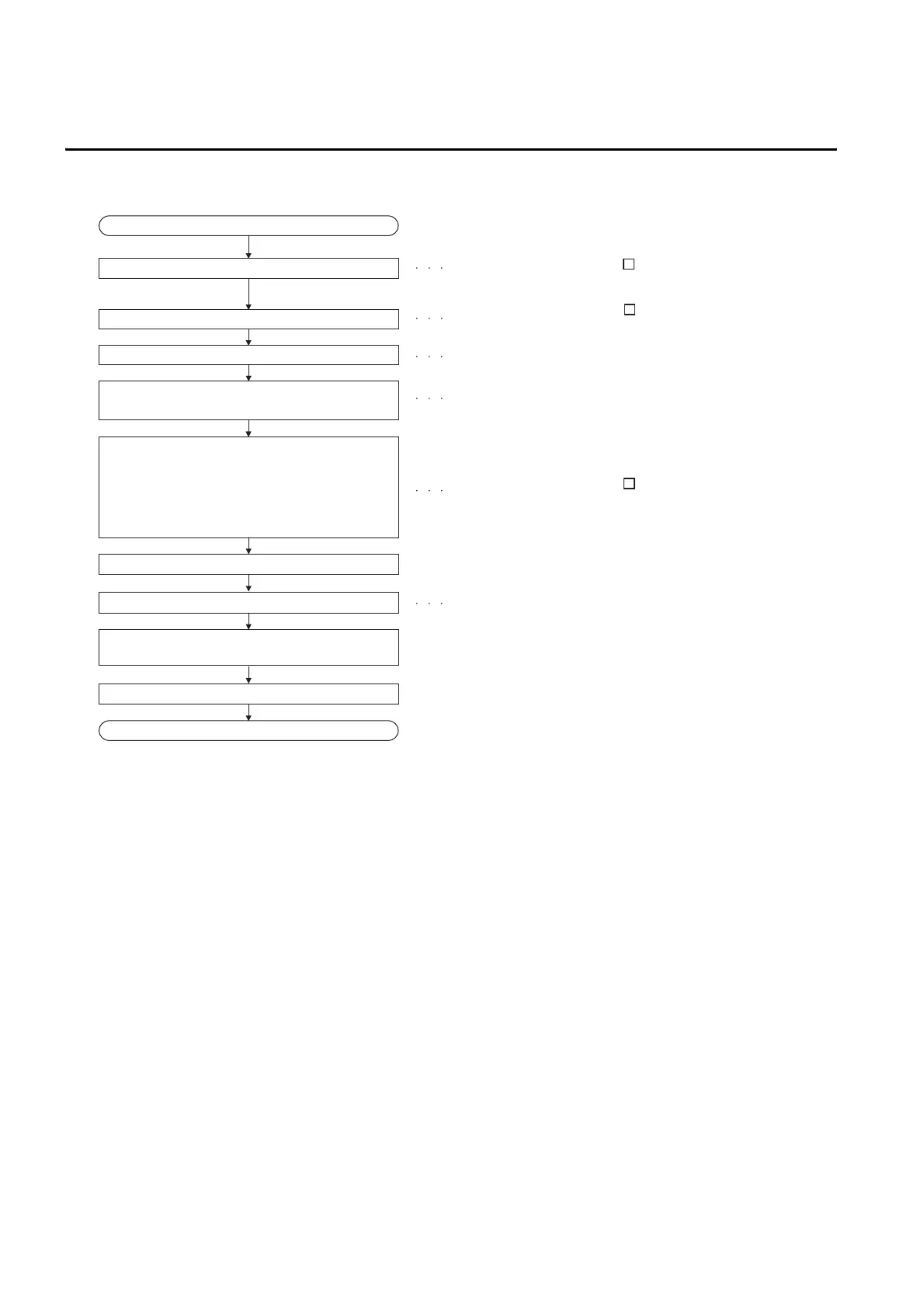

The outline procedure before operating GOT is shown.
Refer to GT Designer2 Version
Screen Design Manual.
Refer to Chapter 7 WIRING.
Refer to GT Designer2 Version
Basic Operation/Data Transfer Manual.
Install GT Designer2 in the PC.
Create project data.
Wire for the GOT power supply.
1) Install a communication driver on the GOT that
is compatible with the controller.
(The communication driver for the FX series is
factory-installed.)
2) Install the project data that were created with
GT Designer2 on the GOT.
End
Start the monitor. (Display each screen.)
Connect the GOT and the destination connector.
Check the communication settings.
Turn on the GOT power and the system of the
connection destination.
Start
Connect GOT and PC with a RS-232/USB
conversion adaptor or RS-232 cable.
Refer to GT Designer2 Version
Basic Operation/Data Transfer Manual.
Refer to Chapter 8 OPTION.
Refer to GOT1000 Series Connection Manual.
WWW.NNC.IR

Mitsubishi GOT1000 Specifications

General

Series	GOT1000
Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Processor	RISC
Communication Interfaces	RS-232, USB
Storage Temperature	-20 to 60°C
Display Type	TFT LCD
Backlight Life	50, 000 hours
Operating Temperature	0 to 50 °C
