Mitsubishi GOT1000 User Manual

7 - 8
7.2 Wiring inside and outside the panel
7.2.3 Attaching surge killers to control equipment
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
PART NAME
5
EMC DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION
7.2.3 Attaching surge killers to control equipment
If communication errors happen in synch with the on/off signals from certain control equipment (referred to
as "load" hereafter) such as no fuse breakers, electromagnetic contactors, relays, solenoid valves, and
induction motors, surge noise interference is suspected.
If this problem happens, keep the ground cable and communication cable away from the load.
If that is not possible, an installation of a surge killer will help reduce noise interference.
Place the surge killer as close to the load as possible.

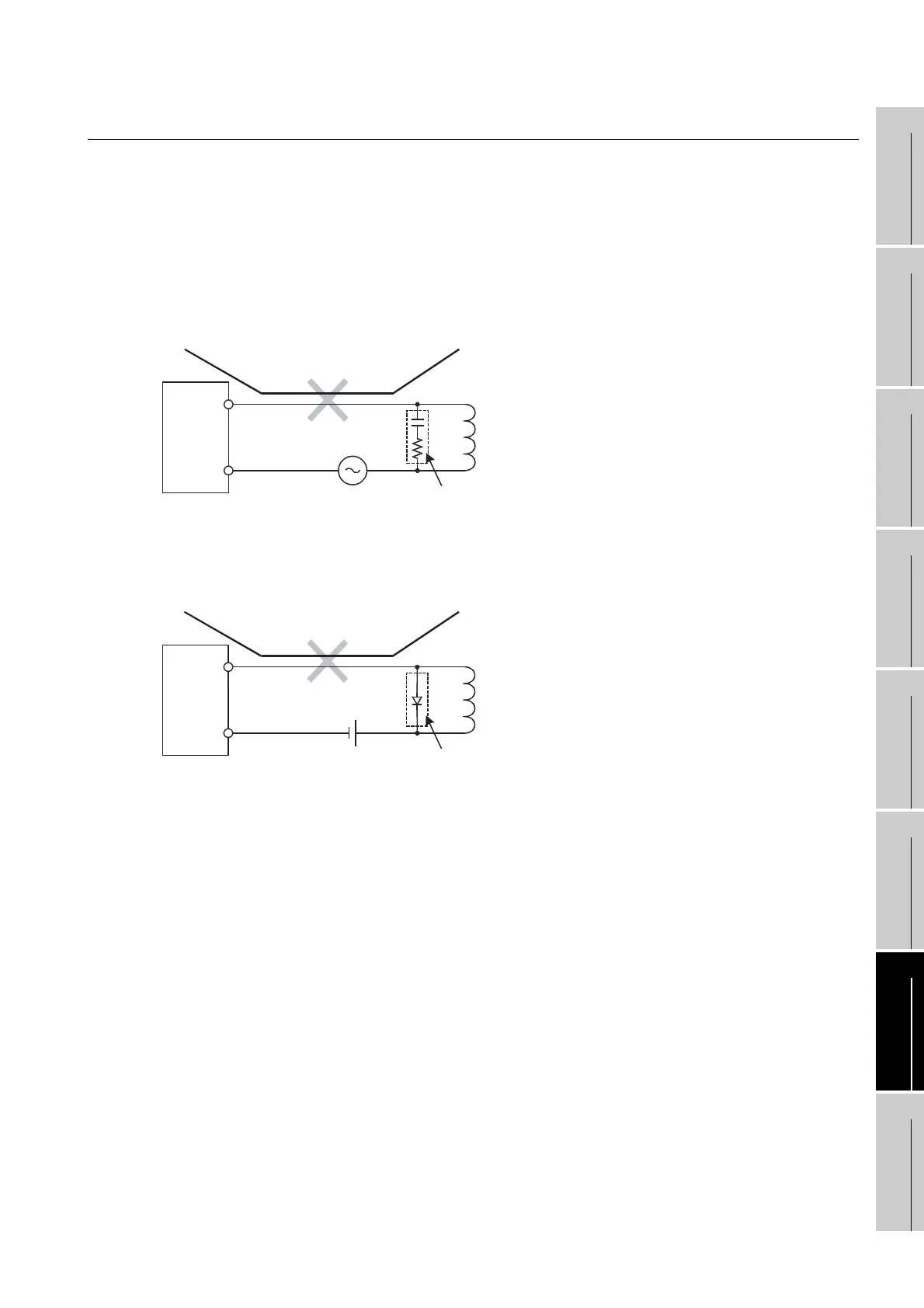

Remedy for AC inductive load
Remedy for DC inductive load
Output
AC
C
R
L: Load
Keep the ground cable and
communication cable away
from each other.
Place the surge kille
r
near the load.
Output equipment
such as PLC output unit
Output
DC
D
L: Load
Keep the ground cable and
communication cable away
from each other.
Place the surge kille
r
near the load.
Output equipment
such as PLC output unit
WWW.NNC.IR

Mitsubishi GOT1000 Specifications

General

Series	GOT1000
Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Processor	RISC
Communication Interfaces	RS-232, USB
Storage Temperature	-20 to 60°C
Display Type	TFT LCD
Backlight Life	50, 000 hours
Operating Temperature	0 to 50 °C
