11. COMMUNICATION INTERFACE
SETTING
(COMMUNICATION SETTING)
The [Communication Setting] menu has the [Standard I/F], [Data Transfer], and [Communication Monitor]
menus.
The [Standard I/F] menu displays the information about the channel numbers, controller name, and detailed
settings of the communication parameters that are allocated to the communication interfaces by GT
Designer2.
The [Data Transfer] menu displays the screen for transferring project data between the PC and GOT.
The [Communication Monitor] menu displays the communication status of each communication port.
11.1 Standard I/F Setting
11.1.1 Standard I/F functions
11.1.2 Standard I/F display operation
Function Contents
Channel no. display Displays the channel number (CH No) that has been assigned by GT Designer2
Communication driver display Displays the communication driver that has been assigned by GT Designer2
Communication parameters display
Displays the communication parameters of the controllers that has been
assigned by GT Designer2

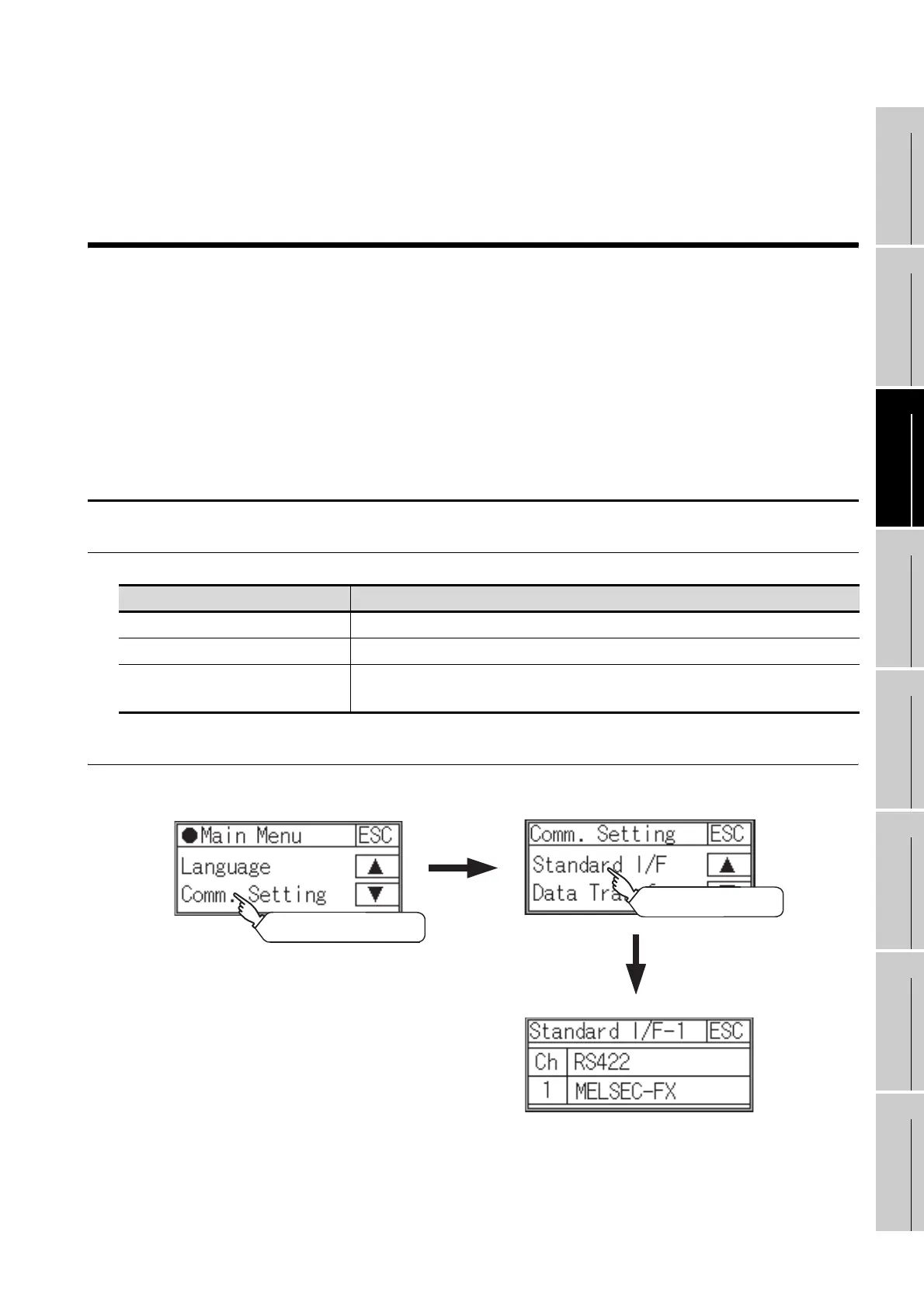

Touch [Comm. Setting].
Touch [Standard I/F].
Main Menu
Standard I/F
