Mitsubishi GOT1000 User Manual

7 - 5
7.1 Power Supply Wiring
7.1.5 The cause of malfunctions related wiring/Remedy
7.1.5 The cause of malfunctions related wiring/Remedy
Grounding of the GOT may cause electric potential difference and noise interference, which may result in
GOT malfunctions.
These problems may be resolved by taking the following measures.

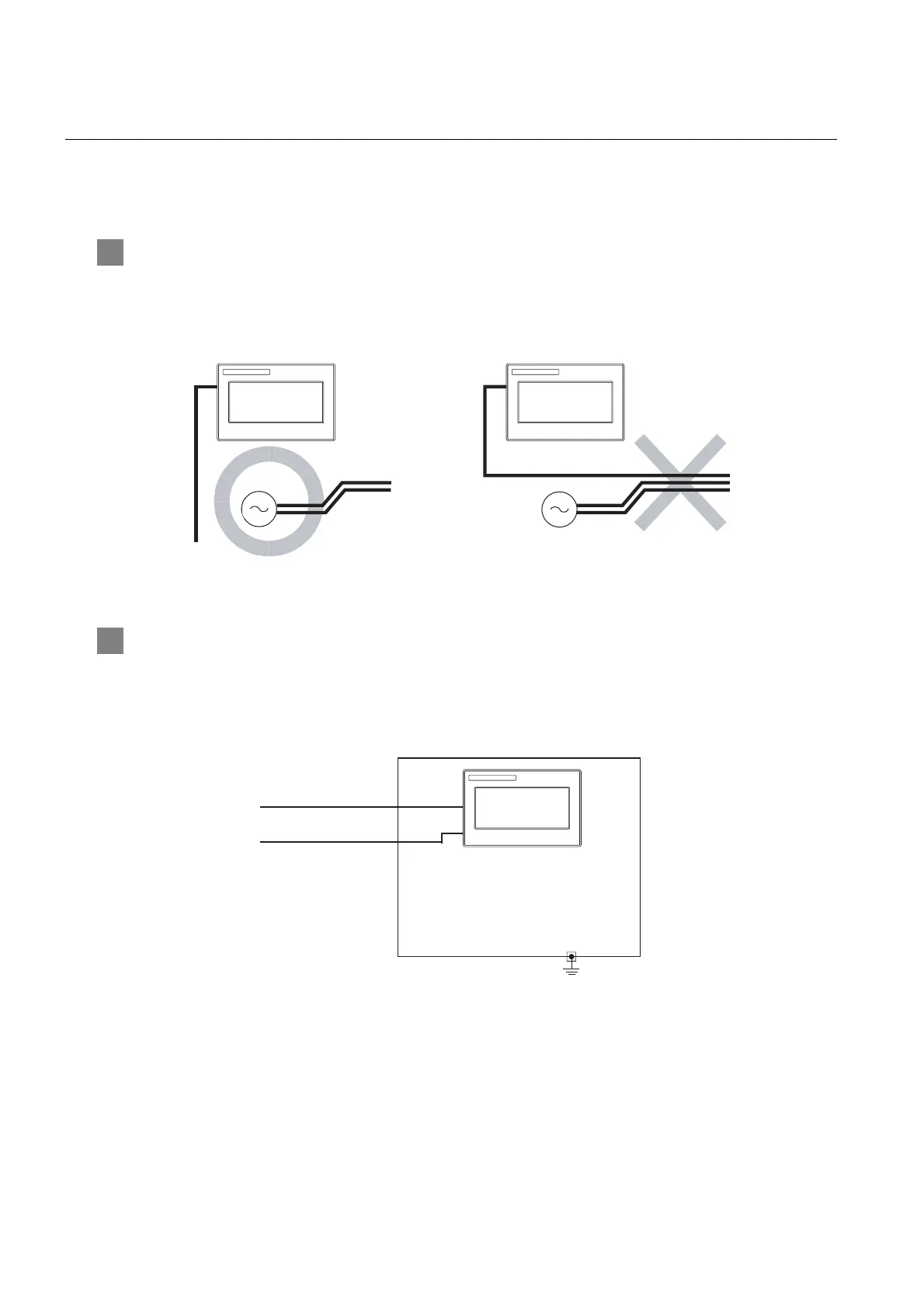

1 Wiring path of the GOT's ground cable and power line
Bundling the GOT's ground cable and power line together can cause interference noise, which may
result in malfunctions.
Keeping the GOT's ground cable and power line away from each other will help minimize noise
interference.
2 Connecting the ground cable from the panel that houses control equipment to the
panel to which the GOT is grounded
When running a single ground cable from the panel that houses such piece of control equipment as a
sequencer to the panel to which the GOT is grounded, the ground cable may have to be directly
connected to the terminal on the GOT.
If electric potential difference between the ground points created by it causes malfunctions, lowering the
voltage as shown in Remedy 1 below may solve the problem.
FG
Power supply for power equipment
Good: Wiring the ground cable away
from the power cable
FG
Power supply for power equipment
Bad: Bundling the ground cable and
the power cable
MITSUBISHI GOT 1000 MITSUBISHI GOT 1000
FG
Ground cable from
the panel that houses
control equipment
Connection cable
MITSUBISHI GOT 1000
WWW.NNC.IR

Mitsubishi GOT1000 Specifications

General

Series	GOT1000
Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Processor	RISC
Communication Interfaces	RS-232, USB
Storage Temperature	-20 to 60°C
Display Type	TFT LCD
Backlight Life	50, 000 hours
Operating Temperature	0 to 50 °C
