5.1 Requirements for Conformance to EMC Directive
5.1.2 About models applicable to the EMC Directive
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
PART NAME
5
EMC DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION

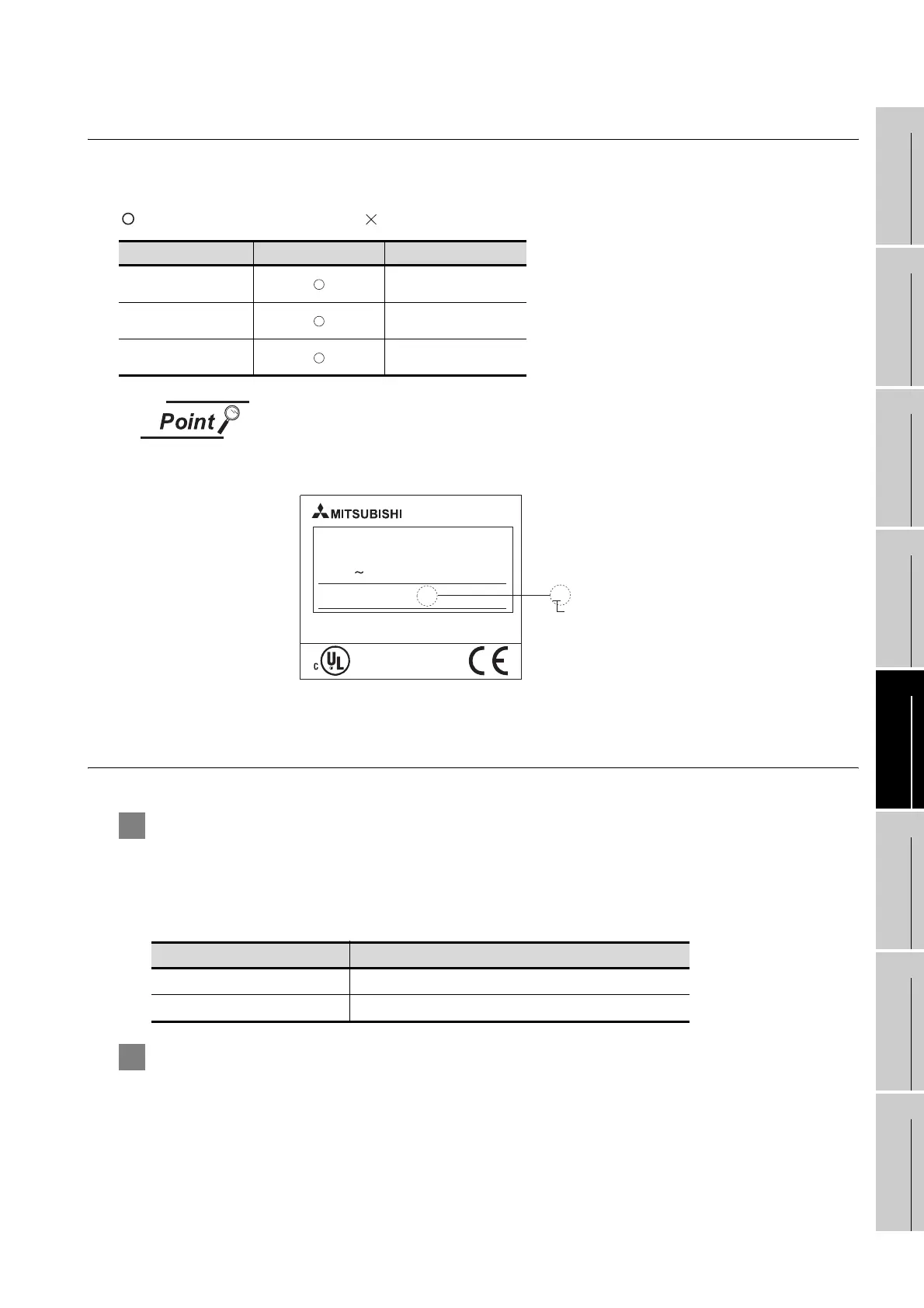

5.1.2 About models applicable to the EMC Directive
The following table lists the modules compliant with the EMC Directive.
: Compliant with EMC Directive : Not compliant with EMC Directive
Please use the GOT whose hardware version is later than that described.
Confirm the hardware version with the products rating plate.
(Products that the EMC Directive applies to are marked with the CE mark logo.)
5.1.3 About the cable used
1 General notes on the use of communication cables
Any device which utilizes a data communication function is susceptible to the wider effects of local EMC
noise. Therefore, when installing any communication cables care should always be taken with the
routing and location of those cables. The GOT units identified on the previous page are compliant with
the EMC requirement when the following communication cables are used.
2 General notes on the use of the power cable
The GT1020-LBD and GT1020-LBD2 unit demand that the cable for the power supply is 10m or less.
Item EMC Directive Hardware version
GT1020-LBD A
GT1020-LBD2 A
GT1020-LBL A
GOT Unit Existing Cables
GT1020-LBD, GT1020-LBL GT10-C30R4-8P (For Melsec FX series PLC)
GT1020-LBD2 GT10-C30R2-6P (For Melsec Q series PLC)
Hardware version
GRAPHIC OPERATION TERMINAL
MODEL
IN 20.4
SERIAL
MITSUBISHI ELECTRIC CORPORATION
MADE IN JAPAN
80M1 IND. CONT. EQ
US LISTED
JY204D42501C
6Y0001 AB
AB
26.4VDC
POWER 1.9W MAX
GT1020-LBD
WWW.NNC.IR

Mitsubishi GOT1000 Specifications

General

Series	GOT1000
Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Processor	RISC
Communication Interfaces	RS-232, USB
Storage Temperature	-20 to 60°C
Display Type	TFT LCD
Backlight Life	50, 000 hours
Operating Temperature	0 to 50 °C
