Mitsubishi GOT1000 User Manual

8 - 3

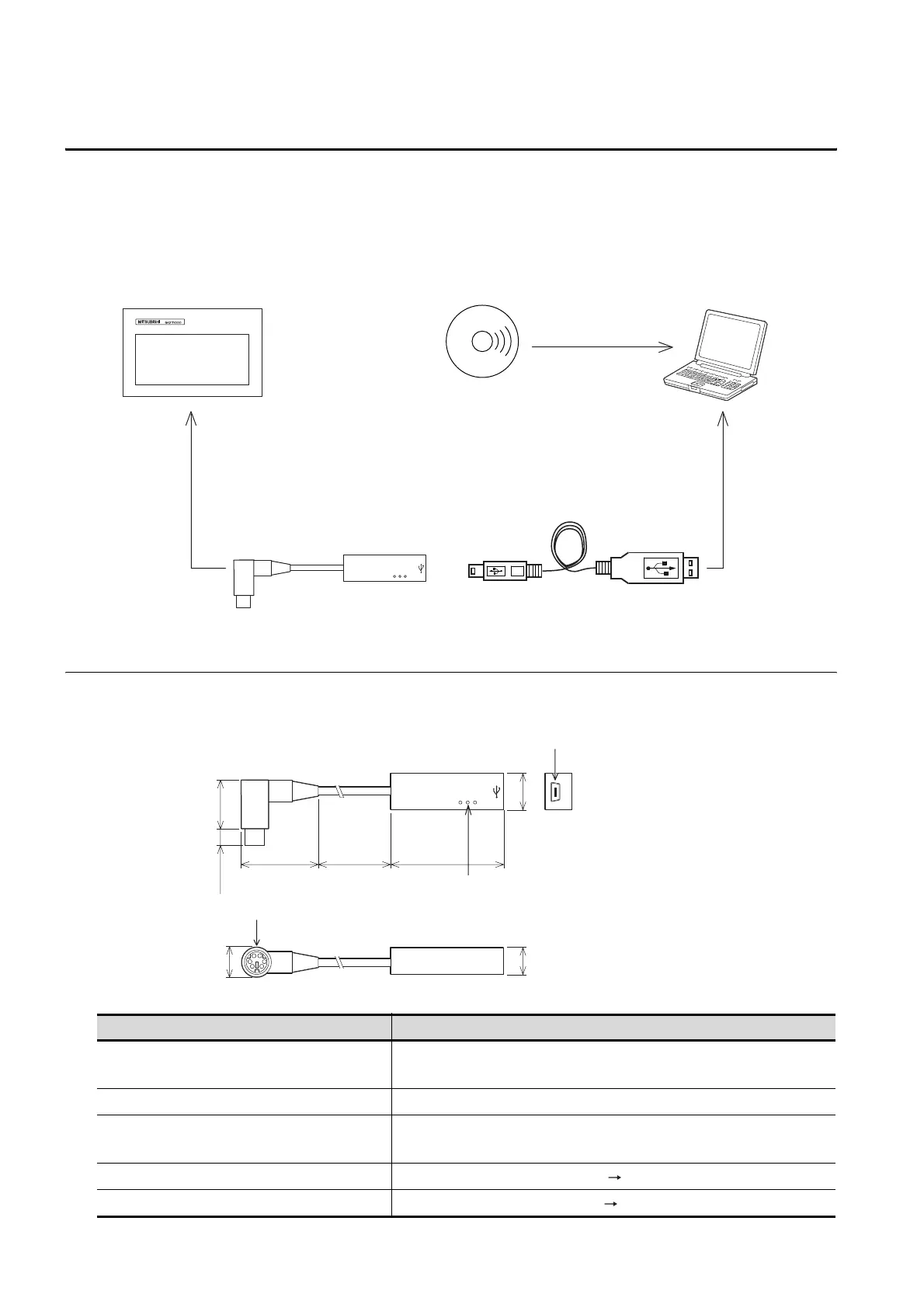

8.2 RS-232/USB conversion adaptor
8.2.1 Shape, Dimensions, and Names of Adaptor Components
8.2 RS-232/USB conversion adaptor
GT10-RS2TUSB-5S RS-232/USB conversion adaptor is an adaptor that converts the RS-232 interface for
communication with PC on the GOT to the USB interface.
It is used with a GT09-C30USB-5P USB cable.
The use of a GT10-RS2TUSB-5S RS-232/USB conversion adaptor requires an installation of the USB driver
that is supplied with the package.
8.2.1 Shape, Dimensions, and Names of Adaptor Components
The shape, dimensions, and names of the RS-232/USB conversion adaptor are shown in the figures below.
Name Specifications
Communication connector
(for RS-232 connection)
MINI-DIN 6 pins (male):
For connection to the interface for communication with PC on the GOT
Communication connector (for USB connection) USB MINI: For connection to the GT09-C30USB-5P USB cable
Display LED (POWER)
Green : Lit when the power is properly supplied
(Lit when connected to the PC with a USB cable)
Display LED (SD) Red: Lit while sending data (GOT PC)
Display LED (RD) Red: Lit while receiving data (PC GOT)
GOT
(RS-232)
POWER SD RD
GOT1020
Conversion adaptor
Communication driver
Installing
Personal compute
r
USB
port
USB cable for connecting a personal computer
(Mitsubishi Electric System Service Co, LTD)
+
B
GOT
(RS-232)
POWER SD RD
23
(0.9")
75(2.95")
Unit
Weight
: mm(inch)
: Approx. 40g
200(7.87")40(1.57")
24
(0.94")
6
(0.23")
φ12(0.47")
Communication connector (for USB connection)
Communication connector (for RS-232 connection)
Display LED (POWER/SD/RD)
15
(0.59")
WWW.NNC.IR

Mitsubishi GOT1000 Specifications

General

Series	GOT1000
Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Processor	RISC
Communication Interfaces	RS-232, USB
Storage Temperature	-20 to 60°C
Display Type	TFT LCD
Backlight Life	50, 000 hours
Operating Temperature	0 to 50 °C
