6.2 Panel Cutting Dimensions
6.2 Panel Cutting Dimensions

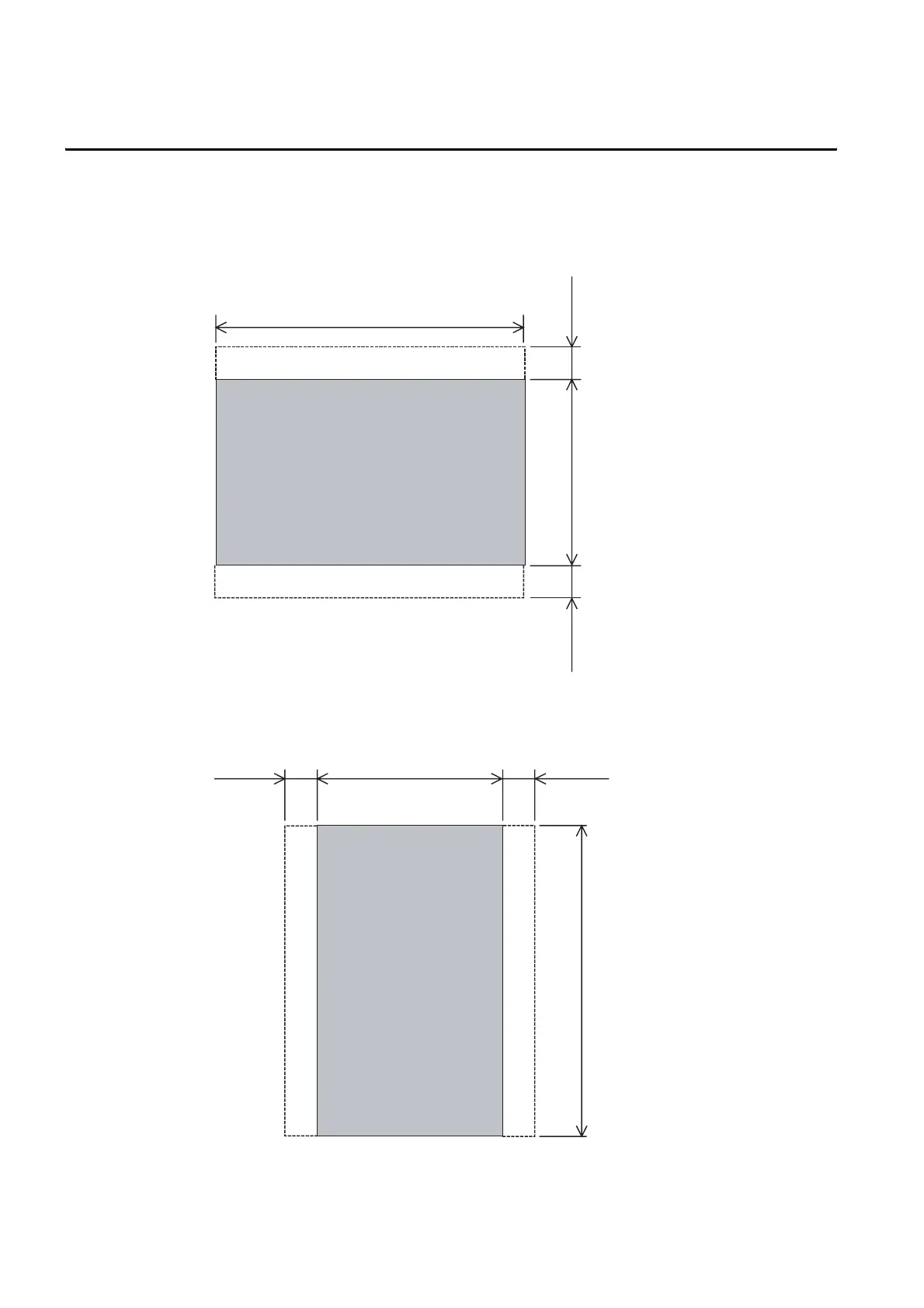

Cut holes in the following dimensions on the panel.
A space of at least 13 mm (0.51”) at the top and bottom is required to allow for the attachment of mounting
fixtures.
Horizontal format
Vertical format
(In the case of vertical format, the height and the width of the panel cut dimensions are reversed.)
Unit: mm(inch)
105 (4.13" )
+1
−0
+0.03
−0
66 (2.59" )
+1 −0
+0.03 −0
13(0.51") or more
13(0.51")
or more
105 (4.13" )
+1
−0
+0.03
−0
66 (2.59" )
+1
−0
+0.03
−0
13(0.51")
or more
13(0.51")
or more
Unit: mm(inch)
WWW.NNC.IR

Mitsubishi GOT1000 Specifications

General

Series	GOT1000
Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Processor	RISC
Communication Interfaces	RS-232, USB
Storage Temperature	-20 to 60°C
Display Type	TFT LCD
Backlight Life	50, 000 hours
Operating Temperature	0 to 50 °C
