6.4 Control Panel Temperature and Mounting Angle
6.4 Control Panel Temperature and Mounting Angle

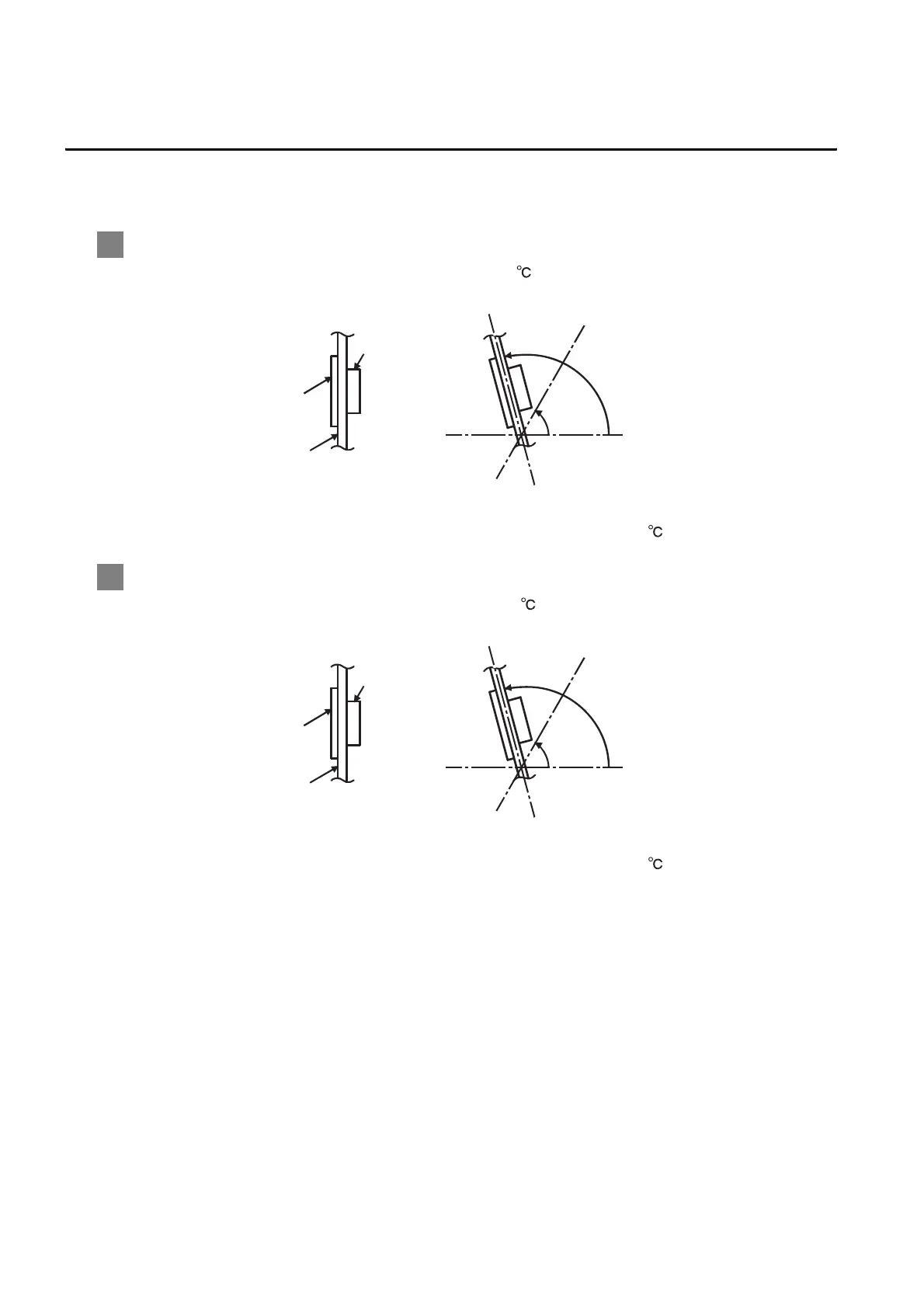

When mounting the main unit to a control panel or similar fixture, set the GOT display section as shown
below.
1 Horizontal installation
When the temperature inside the control panel is 40 to 55 , the mounting angle should be in the range
from 60 to 105 degrees.
• The GOT will have a longer lifetime if used within the mounting angles shown above.
Ideally, the temperature inside the control panel should not exceed 0 to 40
2 Vertical installation
When the temperature inside the control panel is 40 to 50 , the mounting angle should be in the range
from 60 to 105 degrees.
• The GOT will have a longer lifetime if used within the mounting angles shown above.
Ideally, the temperature inside the control panel should not exceed 0 to 40 .
GOT
back panel
GOT
display
section
Control panel,
etc.
105°
60°
GOT
back panel
GOT
display
section
Control panel,
etc.
105°
60°
WWW.NNC.IR

Mitsubishi GOT1000 Specifications

General

Series	GOT1000
Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Processor	RISC
Communication Interfaces	RS-232, USB
Storage Temperature	-20 to 60°C
Display Type	TFT LCD
Backlight Life	50, 000 hours
Operating Temperature	0 to 50 °C
