2.2 Component List
2.2 Component List

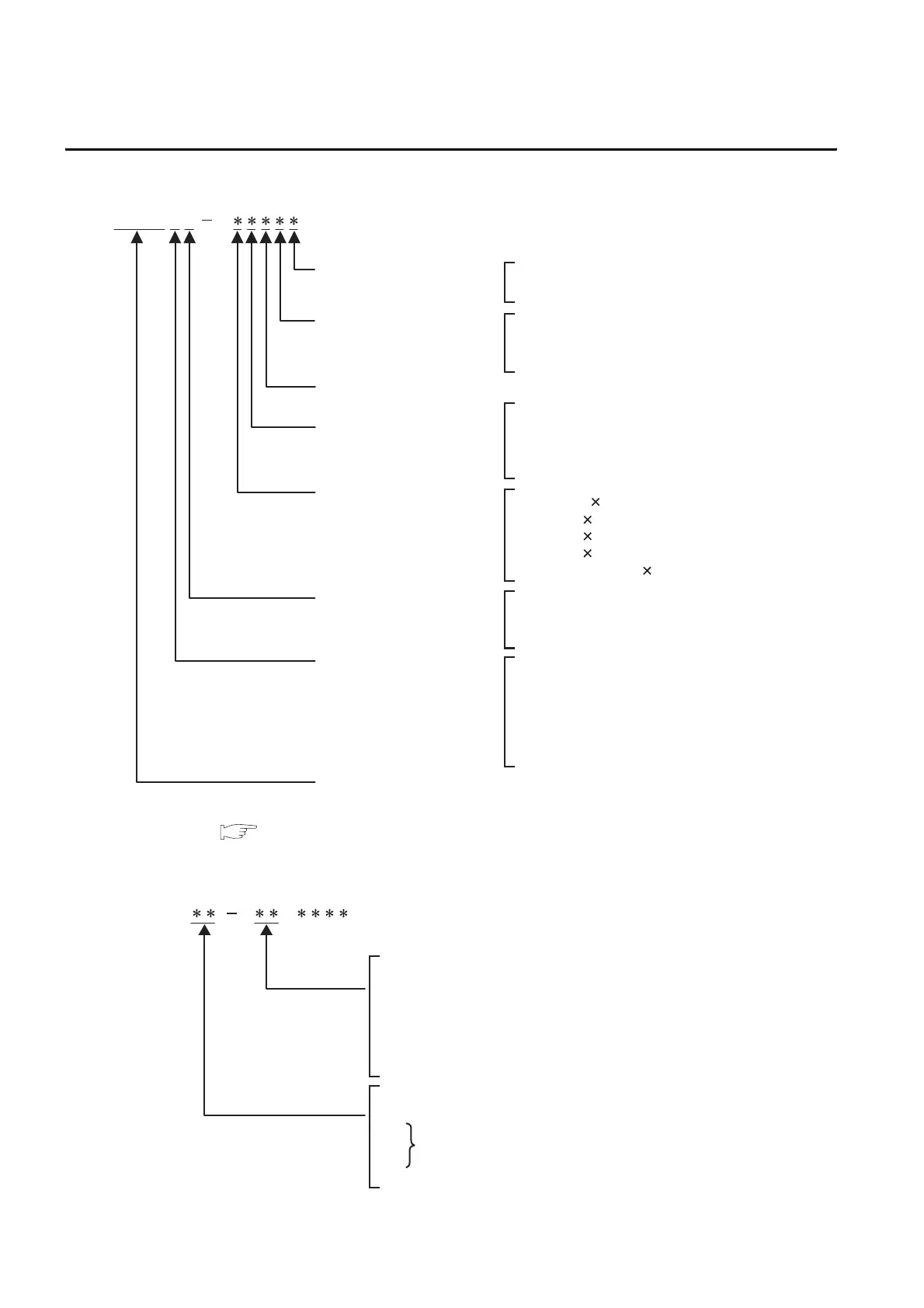

(1) Explanation of the GOT model name
*1: For GT15 that can display 65536 colors, refer to following.
GT15 User's Manual
*2: Dedicated for GT10
(2) Explanation of the option model name
B : Black
9 : 15.0"
8 : 12.1"
7 : 10.4"
6 : 8.4"
5 : 5.7"
2 : 3.7"
5 : 256 colors supported / 65536 colors supported
*1
2 : 16 colors
0 : Monochrome (black and white)
A
D
L
: 100 to 240VAC
: 24VDC
: 5VDC
T : TFT color (High intensity, wide angle view)
N : TFT color
S : STN color
L : STN monochrome
GOT 1000 series GT15/GT11/GT10
Panel color type
Screen size type
Display color type
Resolution
Power type
2
Blank
: RS-232
: RS-422
Interface type
*2
for communication with PLC
Display device type
X
S
V
Q
Blank
: 1024 768 (XGA)
: 800 600 (SVGA)
: 640 480 (VGA)
: 320 240 (QVGA)
: less than 320 240
G T 1 0 2 0
90 : 15.0"
80 : 12.1"
75 : Common for 10.4", 8.4"
70 : Dedicated for 10.4"
60 : Dedicated for 8.4"
50 : Dedicated for 5.7"
20 : Dedicated for 3.7"
15 : Dedicated for GT15
11 : Dedicated for GT11
09 :
05 :
01 :
10 : Dedicated for GT10
Common for GT15/GT11
