Appendix 1 External Dimensions
APPENDICES
Appendix 1 External Dimensions

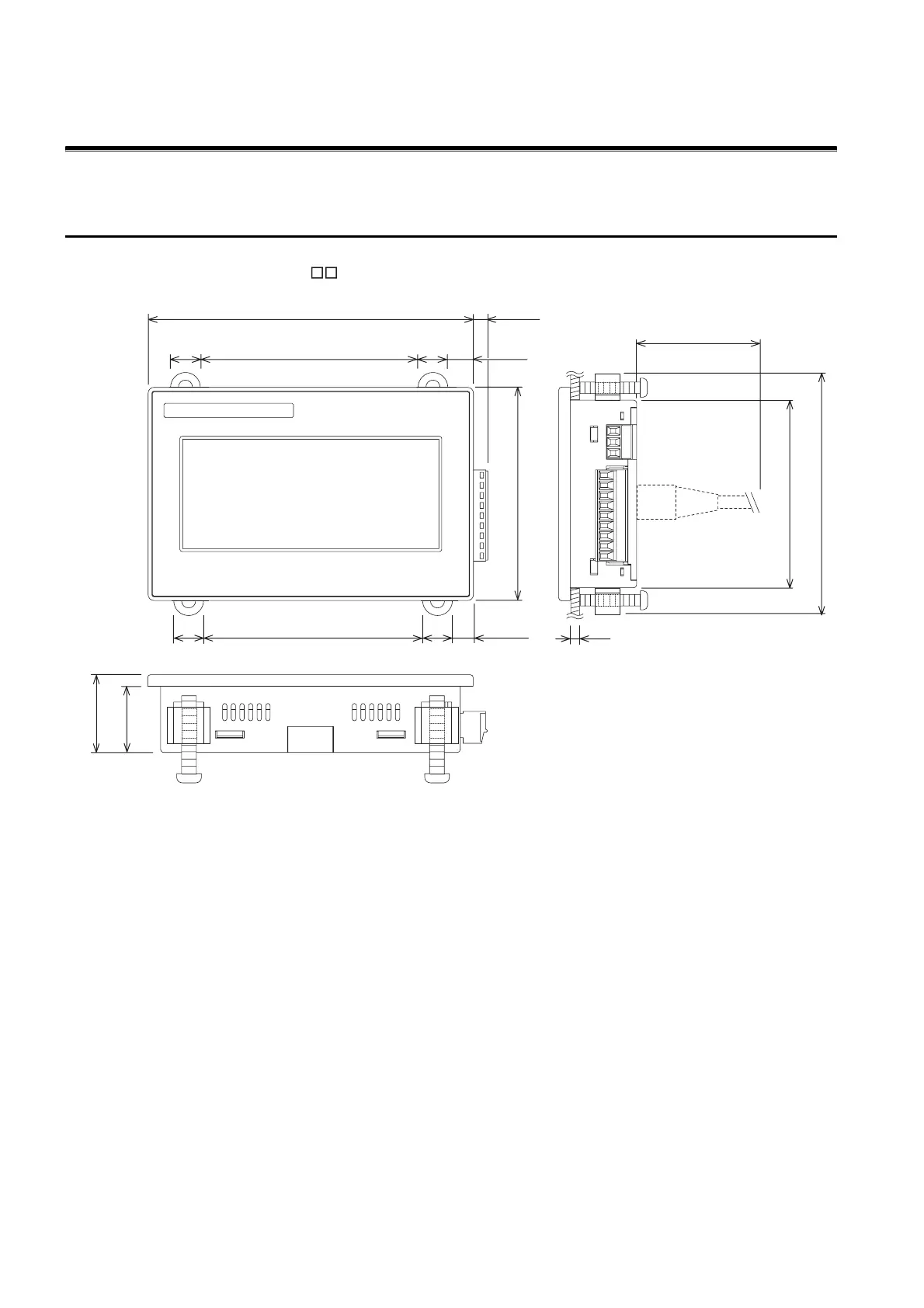

External dimensions of GT10
Unit: mm(inch)
74(2.91")
76(2.99")
113(4.44")
76(2.99")
10
(0.39")
10
(0.39")
10
(0.39")
10
(0.39")
7.5
(0.29")
9.5
(0.37")
5
(0.19")
80(3.14") or more
MITSUBISHI GOT 1000
27(1.06")
23(0.9")
84(3.3")
65(2.55")
Panel thickness: 1 to 4mm
(0.03" to 0.15")
