CHAPTER 8 FUNCTIONS
8
8.15 Flow Amount Integration Function
(7) Change of the integrated flow amount

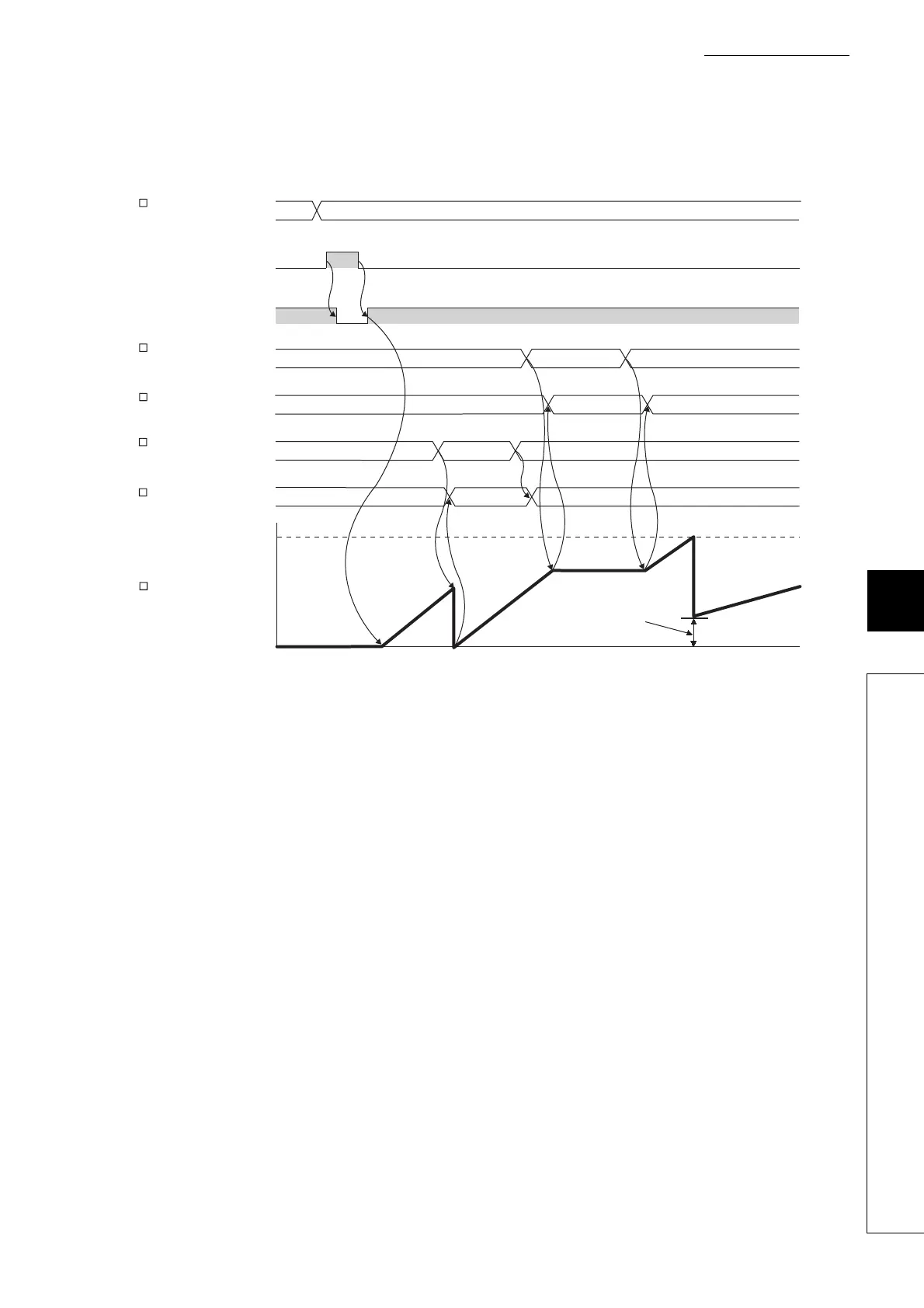

The following timing chart shows the timings that the integrated flow amount changes.
(8) Operation when an input signal error occurs
The integral processing cannot be performed while an input signal error is occurring. When the analog input value
returns within the setting range and the A/D conversion is restarted, the integral processing is performed.
CH Flow amount integration
temporary stop flag
(Un\G1364 to Un\G1367)
CH Integrated flow amount
clear request
(Un\G1372 to Un\G1375)
CH Flow amount integration
temporary stop request
(Un\G1356 to Un\G1359)
CH Integrated flow amount
clear flag
(Un\G1380 to Un\G1383)
0
2147483647
Cleared (1) No clear request (0)
No request (0) Clear request (1) No request (0)
No request (0)
Temporary stop request (1)
No request (0)
No temporary stop request (0)
Temporarily stopped (1) No temporary stop request (0)
CH Flow amount integration
enable/disable setting
(Un\G1300 to Un\G1303)
Operating condition setting
request (Y9)
Operating condition setting
completed flag (X9)
Enabled (0)
Disabled
(1)
OFF
ON
ON
OFF
OFF
ON
No clear request (0)
Extra amount which
exceeded the upper limit
CH Integrated flow amount
(Un\G1332 to Un\G1339)
