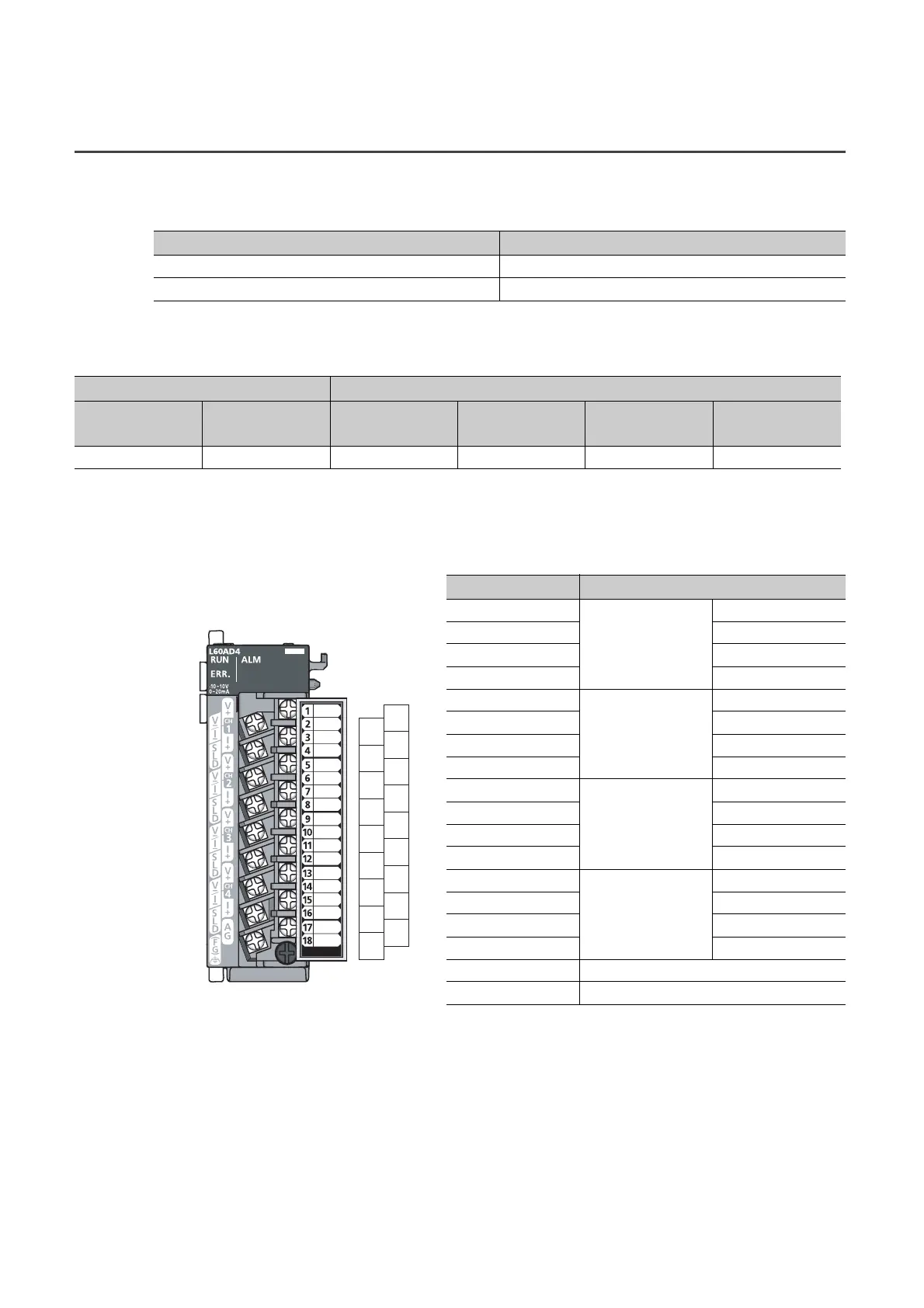

6.2 Terminal Block
(1) Precautions
Tighten the terminal block screws within the following specified torque range.
The table below shows applicable solderless terminals connected to the terminal block. When wiring, use
applicable wires and an appropriate tightening torque. Use UL-approved solderless terminals and, for processing,
use a tool recommended by their manufacturer. Also, sleeved solderless terminals cannot be used.
(2) Signal names of the terminal block
The following shows signal names of the terminal block.
Screw type Tightening torque range
Terminal screw (M3 screw) 0.42 to 0.58N • m
Terminal block mounting screw (M3.5 screw) 0.66 to 0.89N • m
Solderless terminal Wire
Model
Tightening
torque
Diameter Type Material
Temperature
rating
R1.25-3 0.42 to 0.58N • m AWG 22 to AWG 18 Stranded Copper 75°C or more
Pin number Signal name
1
CH1
V+
2 V-/I-
3I+
4SLD
5
CH2
V+
6 V-/I-
7I+
8SLD
9
CH3
V+
10 V-/I-
11 I+
12 SLD
13
CH4
V+
14 V-/I-
15 I+
16 SLD
17 AG
18 FG
CH1
V-/I-
CH1
V+
SLD
CH1
I+
CH2
V-/I-
CH2
V+
SLD
CH2
I+
CH3
V-/I-
CH3
V+
SLD
CH3
I+
CH4
V-/I-
CH4
V+
SLD
CH4
I+
FG
AG
