CHAPTER 8 FUNCTIONS
8
8.1 Processing Each Function
CHAPTER 8 FUNCTIONS
This chapter describes the details of the functions available in the A/D converter module, and the setting procedures
for those functions.
For details on I/O signals and buffer memory, refer to the following.
• Details of I/O signals ( Page 167, Appendix 1)
• Details of buffer memory addresses ( Page 174, Appendix 2)
8.1 Processing Each Function

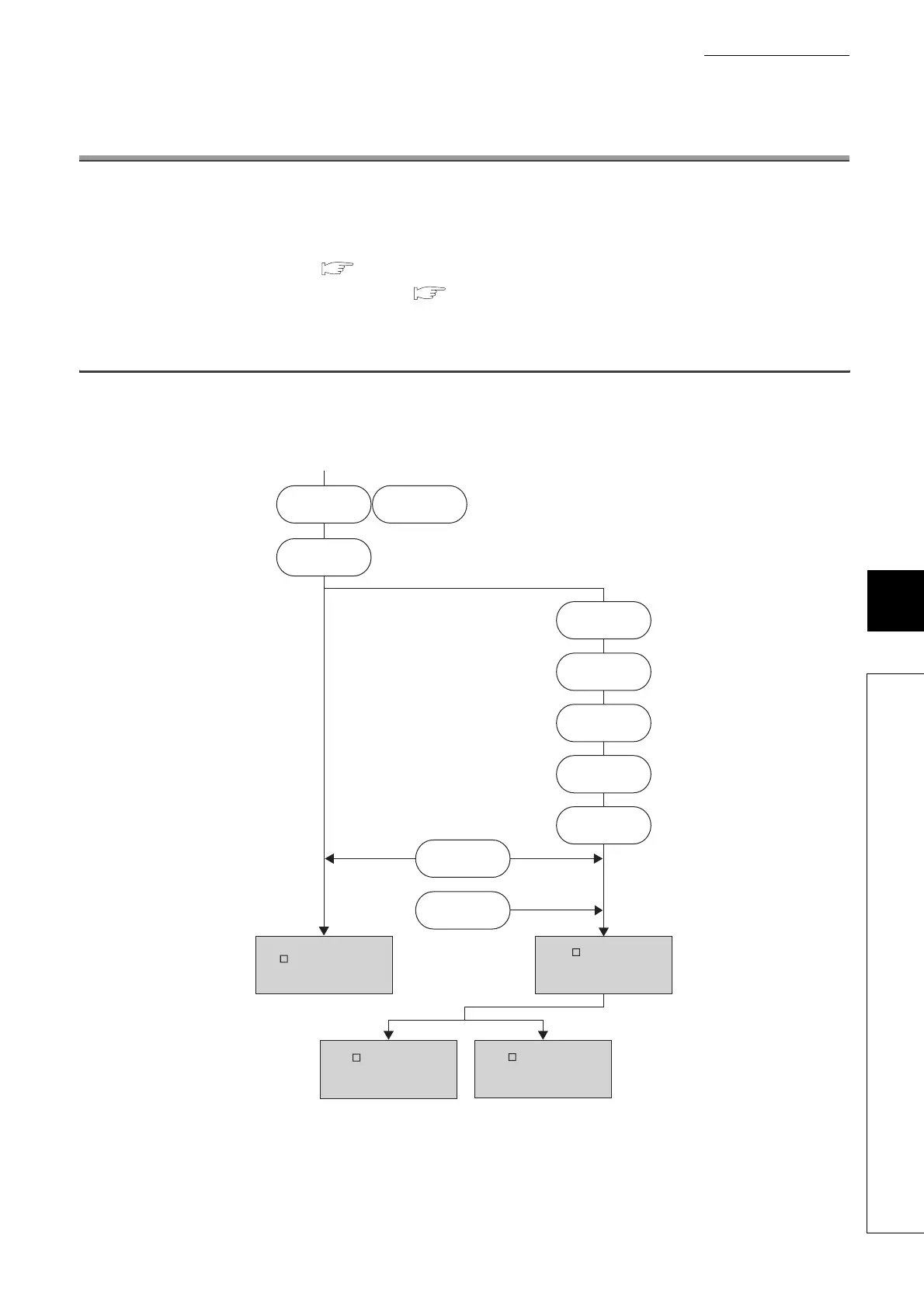

The functions are processed in the order shown below. If multiple functions are enabled, the output of the first
processed function is used as the input of the next function.
(1) Digital output values
These are digital values after sampling processing or averaging processing has been performed.
CH Digital output value
(Un\G11 to Un\G14)
Analog input
(CH1 to CH4)
Input signal
error detection
function
Averaging
processing
Input signal error
detection extension
function
Flow amount
integration
function
Logging function
Warning output
function
Difference
conversion
function
Shift function
Scaling function
Digital clipping
function
CH Maximum value
(Un\G30, Un\G32,
Un\G34, Un\G36)
CH Minimum value
(Un\G31, Un\G33,
Un\G35, Un\G37)
CH Scaling value
(digital operation value)
(Un\G54 to Un\G57)
