CHAPTER 7 VARIOUS SETTINGS
7
7.2 Switch Setting
7.2 Switch Setting
Set the operation mode and the input range used in each CH.
(1) Setting procedure

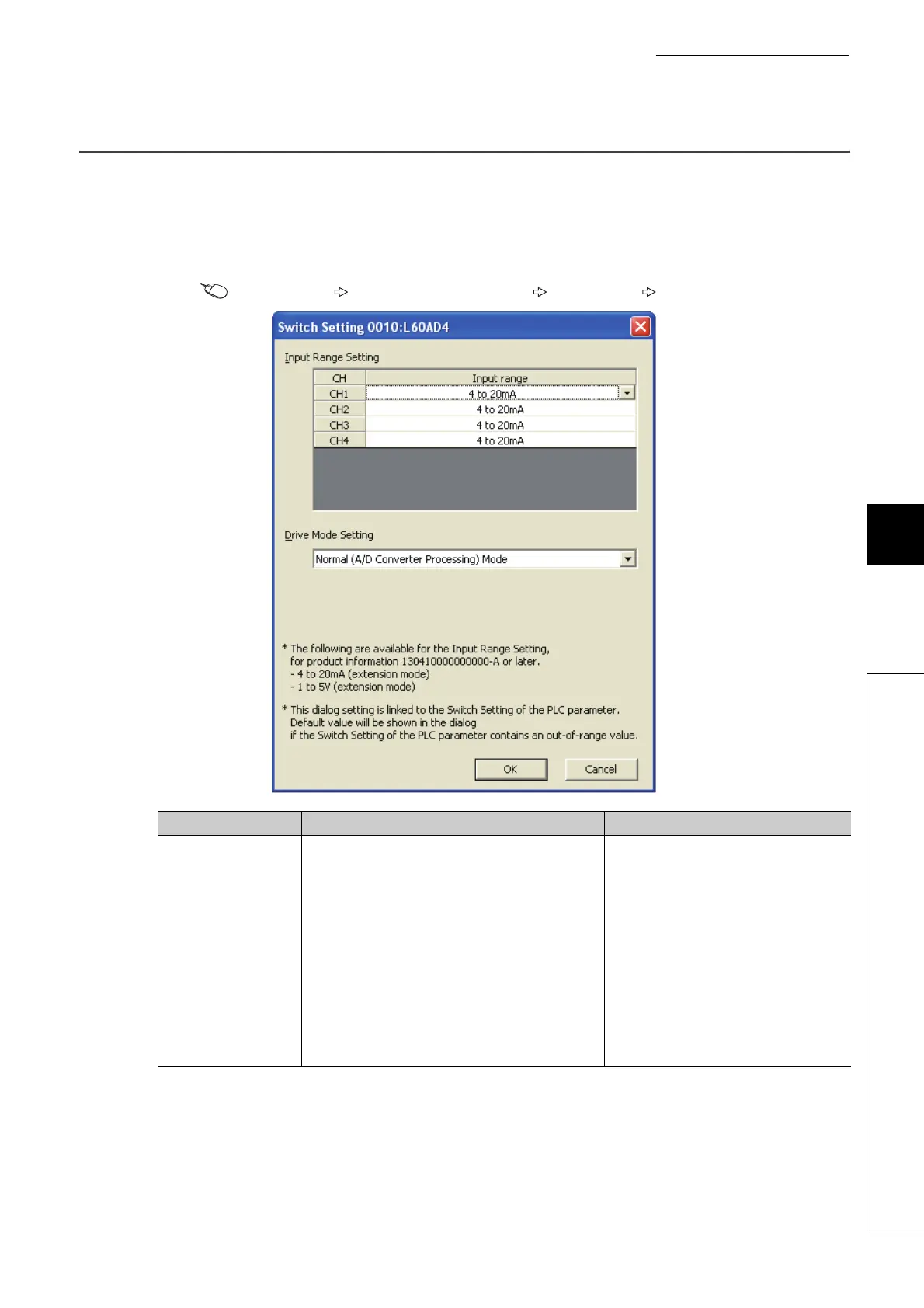

Open the "Switch Setting" dialog box.
Project window [Intelligent Function Module] module name [Switch Setting]
Item Description Setting value
Input Range Setting Set the input range used in each CH.
• 4 to 20mA (default value)
• 0 to 20mA
• 1 to 5V
• 0 to 5V
• -10 to 10V
• 0 to 10V
• 4 to 20mA (Extended mode)
• 1 to 5V (Extended mode)
• User range setting
Drive Mode Setting Set the operation mode of the A/D converter module.
• Normal (A/D conversion processing)
mode (default value)
• Offset/gain setting mode
