10.3 When A/D Converter Module is Connected to Head
Module
This section describes the system configuration of A/D converter module and a program example of operation
condition.
(1) System configuration

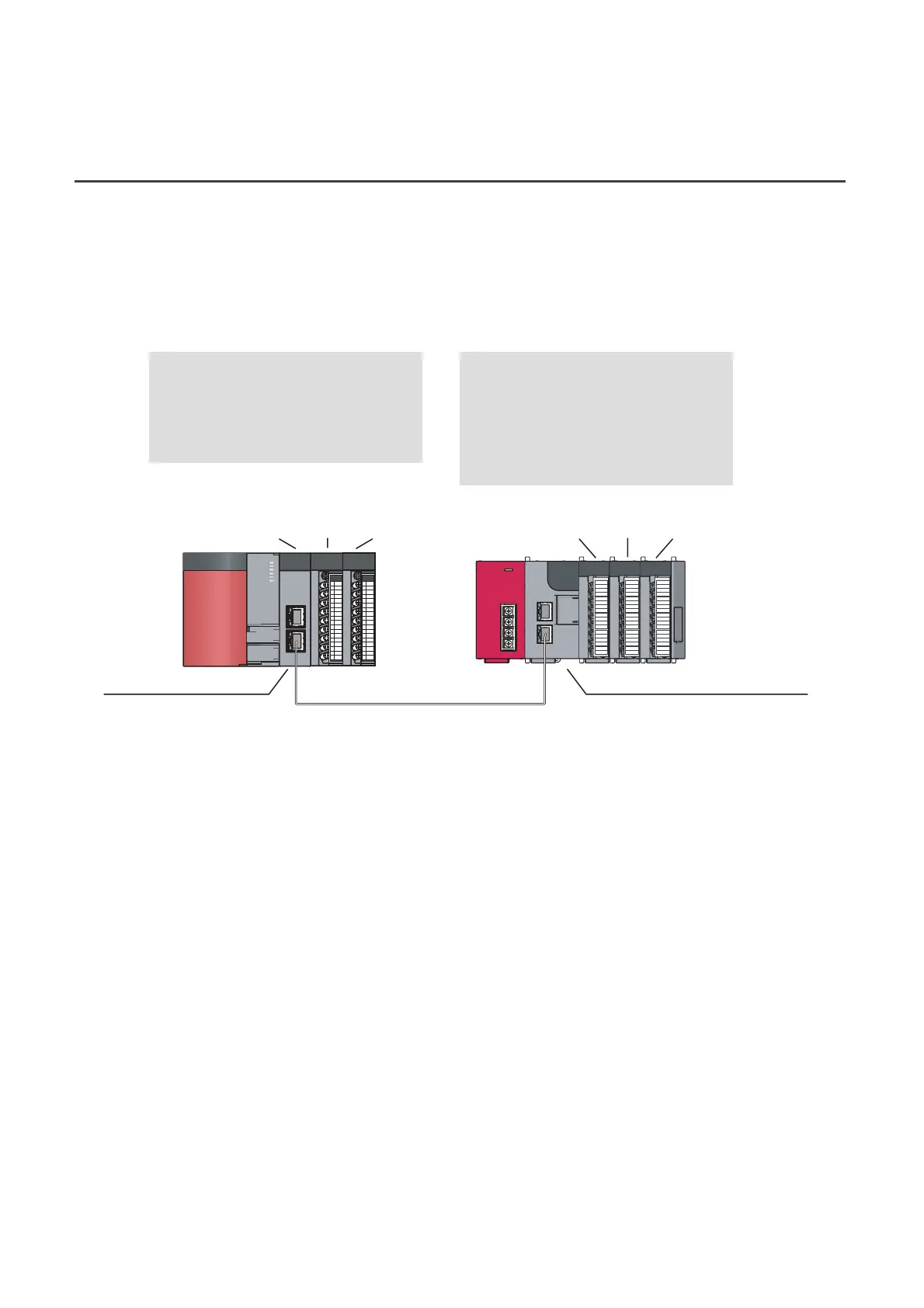

The following describes the system configuration examples when the A/D converter module is mounted to a head
module.
(2) Programming conditions
This program reads digital output values enabled for A/D conversion at CH1 to CH3 in the A/D converter module.
CH1 executes sampling processing, CH2 executes averaging processing every 50 times and CH3 executes A/D
conversion every 10 moving averages. If an error occurs in the module, an error code is displayed in BCD
notation.
Network No.1
Ethernet cable (1000BASE-T)
CPU module (Q10UDHCPU)
Master/local module (QJ71GF11-T2)
Input module (QX10)
Output module (QY10)
X/Y1000
to
X/Y100F
X/Y1010
to
X/Y101F
X/Y1020
to
X/Y102F
Masster station (Station No.0) Intelligent device station (Station No.1)
Head module (LJ72GF15-T2)
A/D converter module (L60AD4)
Input module (LX40C6)
Output module (LY10R2)
END cover (L6EC)
Power supply module (Q62P) Power supply module (L61P)
X/Y00
to
X/Y1F
X/Y20
to
X/Y2F
X/Y30
to
X/Y3F
