48
CHAPTER 7 VARIOUS SETTINGS
This chapter describes the setting procedures of the A/D converter module.
After writing the contents of new module, switch settings, parameter settings and auto refresh settings into the CPU module,
reset the CPU module, switch STOP → RUN → STOP → RUN, or switch ON the power supply, to validate the setting
contents.
7.1 Addition of Modules
Add the model name of A/D converter modules to use on the project.
(1) Addition procedure

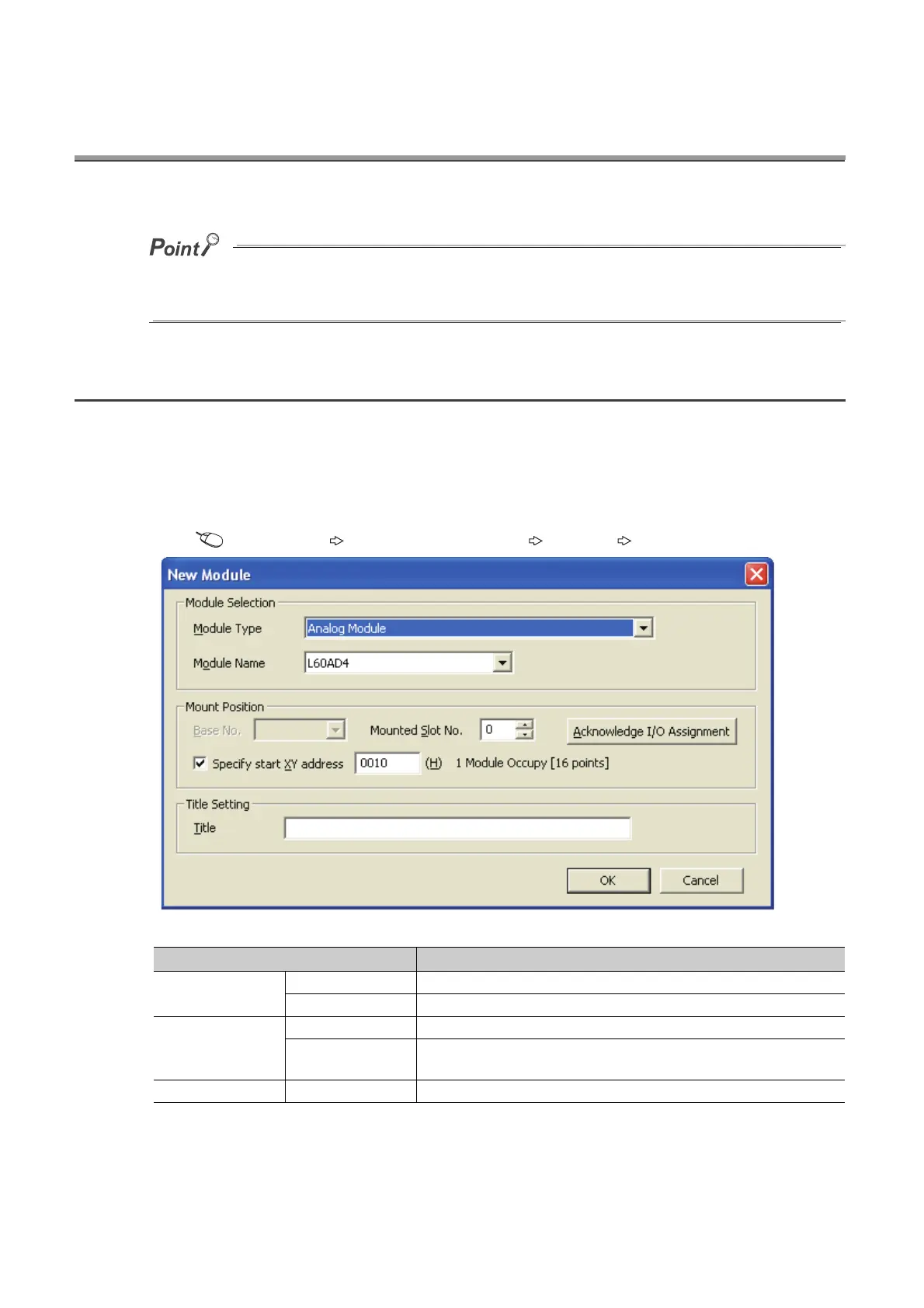

Open the "New Module" dialog box.
Project window [Intelligent Function Module] Right-click [New Module]
Item Description
Module Selection
Module Type Set "Analog Module".
Module Name Select the name of the module to connect.
Mount Position
Mounted Slot No. Set the slot No. where the module is connected.
Specify start X/Y
address
The start I/O number (hexadecimal) of the target module is set, according to
the slot No. Setting any start I/O number is also possible.
Title Setting Title Set any title.
To Next Page
