8.15 Flow Amount Integration Function
This function performs the A/D conversion of analog input value (voltage or current) from a flow meter and others, and
integrates the digital output value by every integration cycle. In this function, integral processing is performed
regarding the scaling value (digital operation value) as the instantaneous flow amount.
In the flow amount integration function, the conversion speed can be set in 1ms.

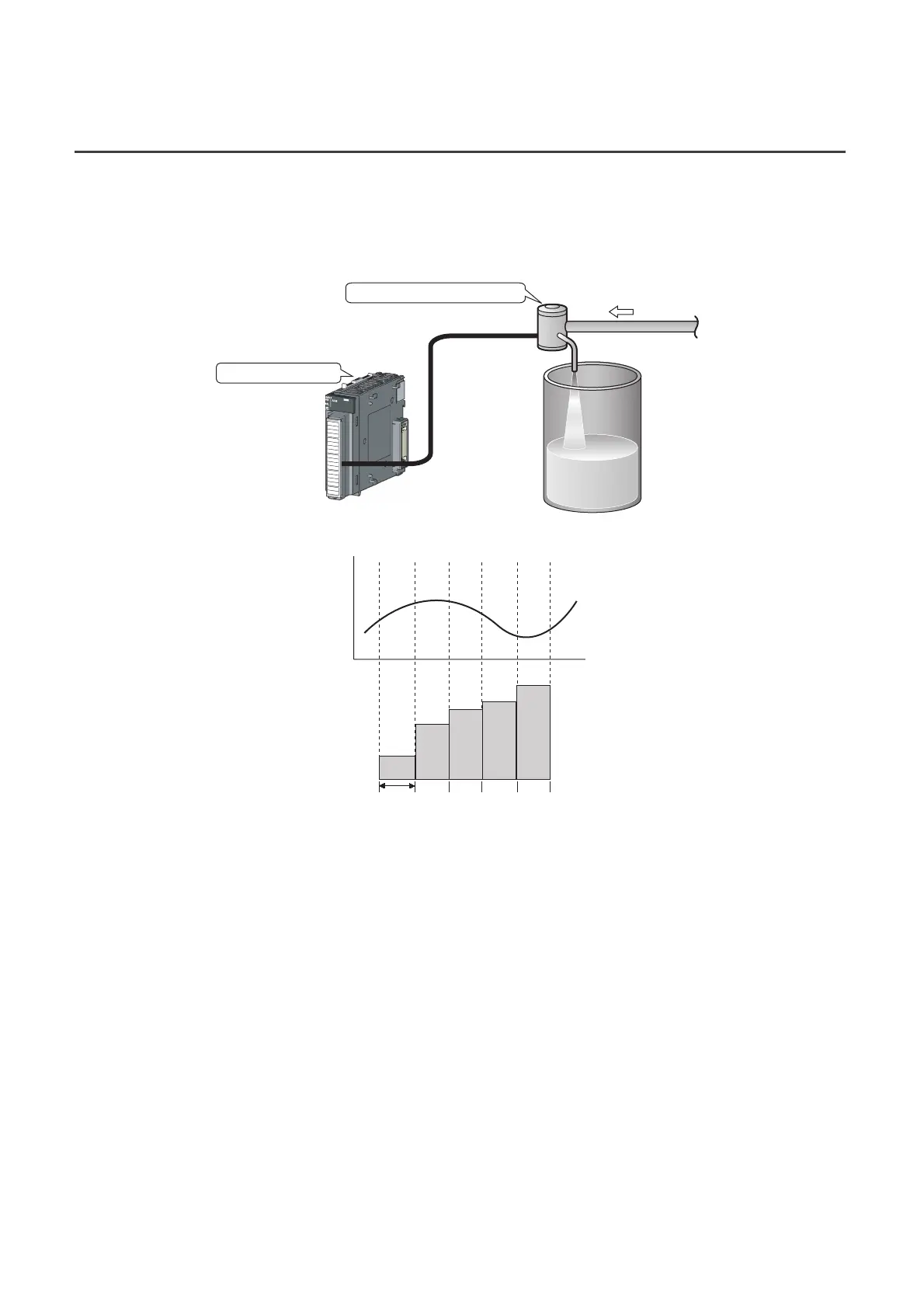

Flow meter, Control valve
A/D converter module
Liquid
Measures
instantaneous flow
amount of liquid,
and outputs the
analog value
Integrates
instantaneous
flow amount
0
Time
Analog input value
Integration
cycle
Integrated
flow amount
