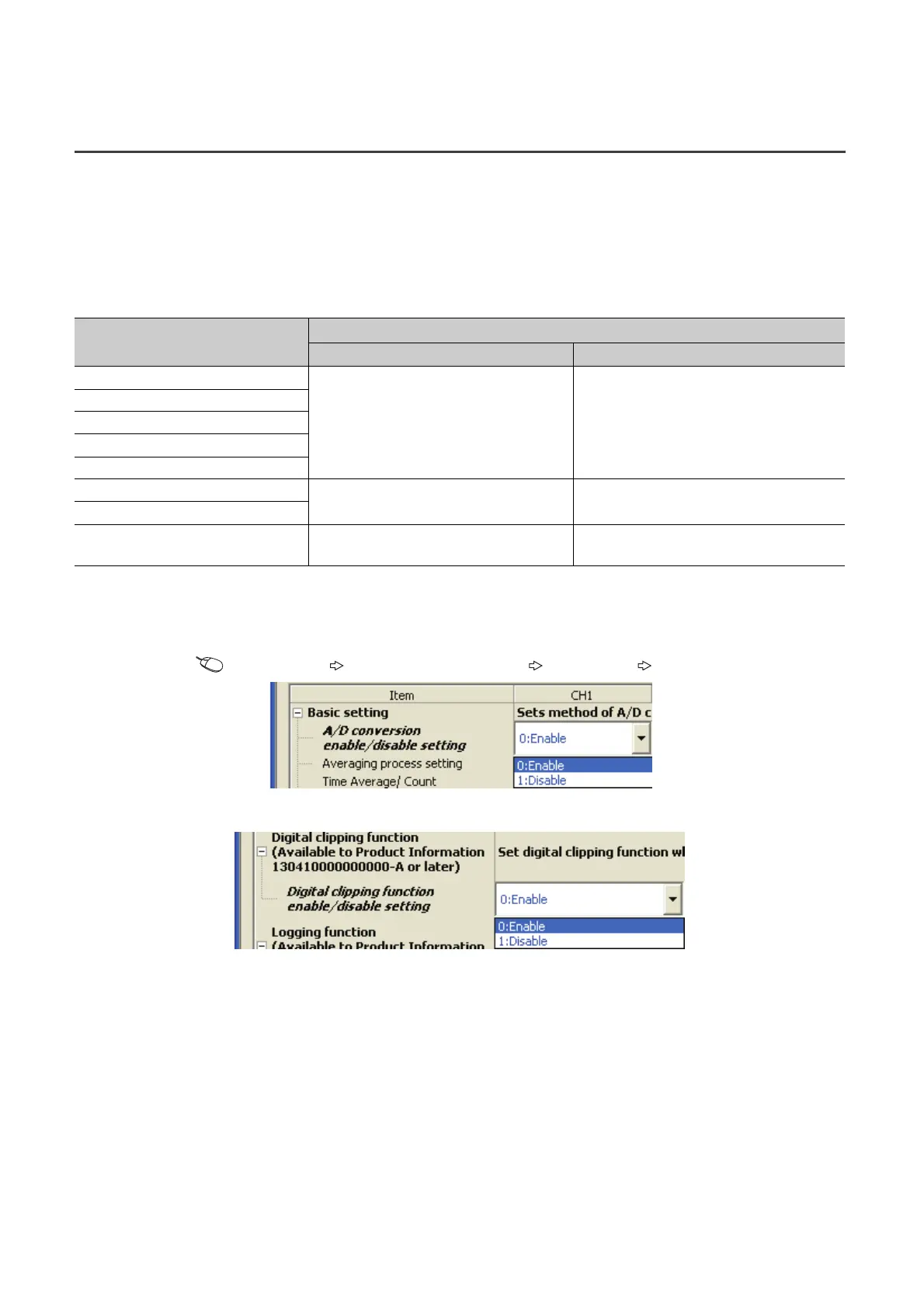

8.12 Digital Clipping Function
The range of the scaling value (digital operation value) for voltage or current over the input range is fixed between the
maximum digital output value and the minimum digital output value.
(1) Concept of digital clipping setting
The following table lists the output range of the scaling value (digital operation value) when the digital clipping
function is enabled for each range.
(2) Setting procedure
1. Set "A/D conversion enable/disable setting" to "0: Enable".
Project window [Intelligent Function Module] module name [Parameter]
2. Set "Digital clipping function enable/disable setting" to "0: Enable" .
Input range
Output range of the scaling value (digital operation value)
Digital clipping function enabled Digital clipping function disabled
4 to 20mA
0 to 20000 -480 to 20479
0 to 20mA
1 to 5V
0 to 5V
0 to 10V
-10 to 10V
-20000 to 20000 -20480 to 20479
User range setting
4 to 20mA (Extended mode)
1 to 5V (Extended mode)
-5000 to 22500 -5480 to 22979
