CHAPTER 8 FUNCTIONS
8

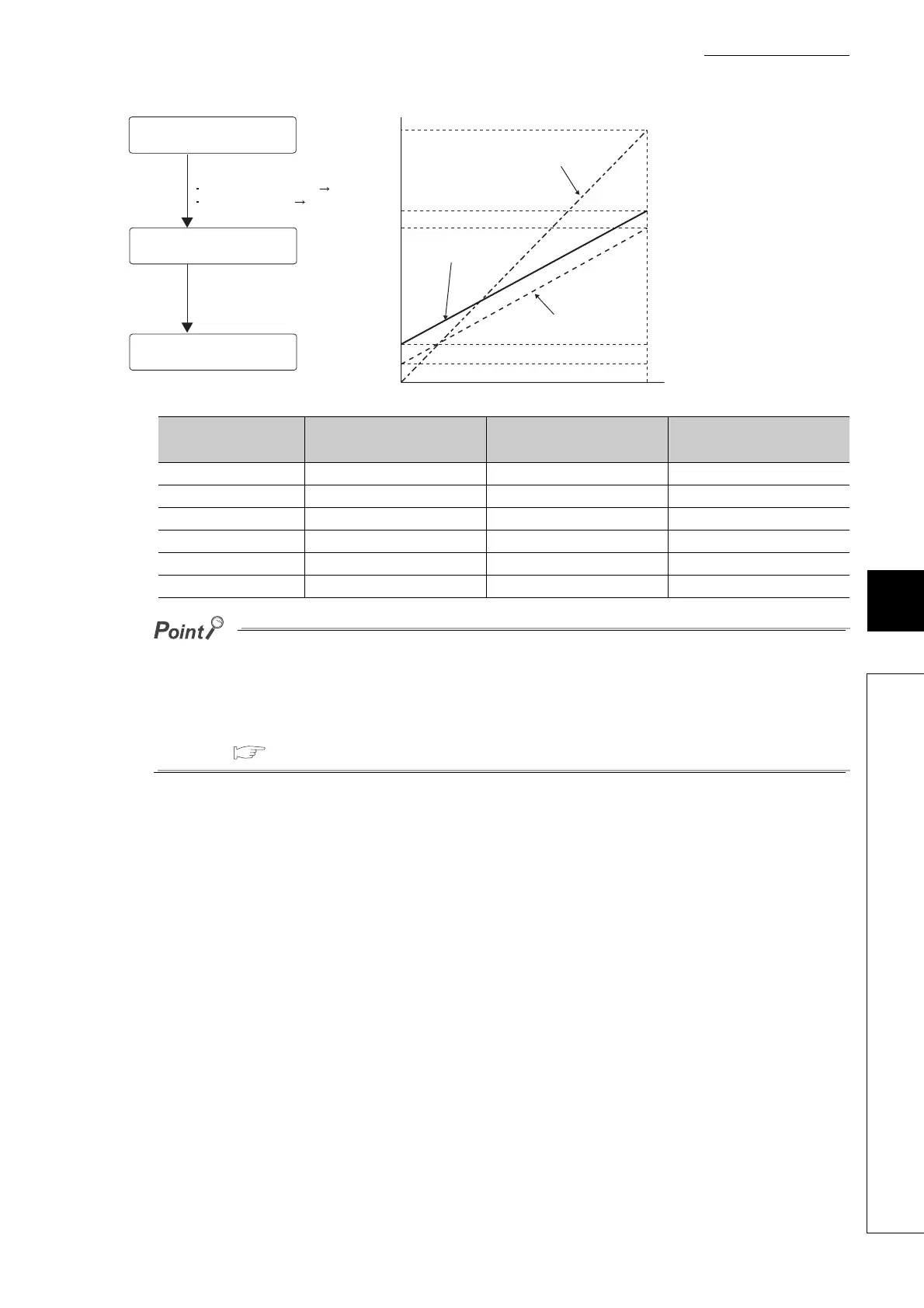

8.11 Shift Function
When the shift function is used with the digital clipping function and scaling function, shift addition is executed on the value
after digital clipping and scale conversion.
Therefore, the range of the scaling value (digital operation value) is determined as -32768 to 32767.
For a setting example of when the digital clipping function, scaling function, and shift function are used together, refer to the
following.
• Setting example of when the digital clipping function, scaling function, and shift function are used together
(
Page 92, Section 8.12 (4))
Input voltage (V) Digital output value Value after scaling
Scaling value
(digital operation value)
0 0 2000 4000
1 4000 4000 6000
2 8000 6000 8000
3 12000 8000 10000
4 16000 10000 12000
5 20000 12000 14000
Scaling
Upper limit value: 20000 12000
Lower limit value: 0 2000
Shift addition
Adds 2000 to the value
after scaling
20000
14000
12000
2000
4000
0
5
Analog input voltage (V)
0
3) Scaling value
(digital operation
value)
1) Digital output value
2) Value after
scaling
1) Digital output value
2) Value after scaling
3) Scaling value
(digital operation value)
