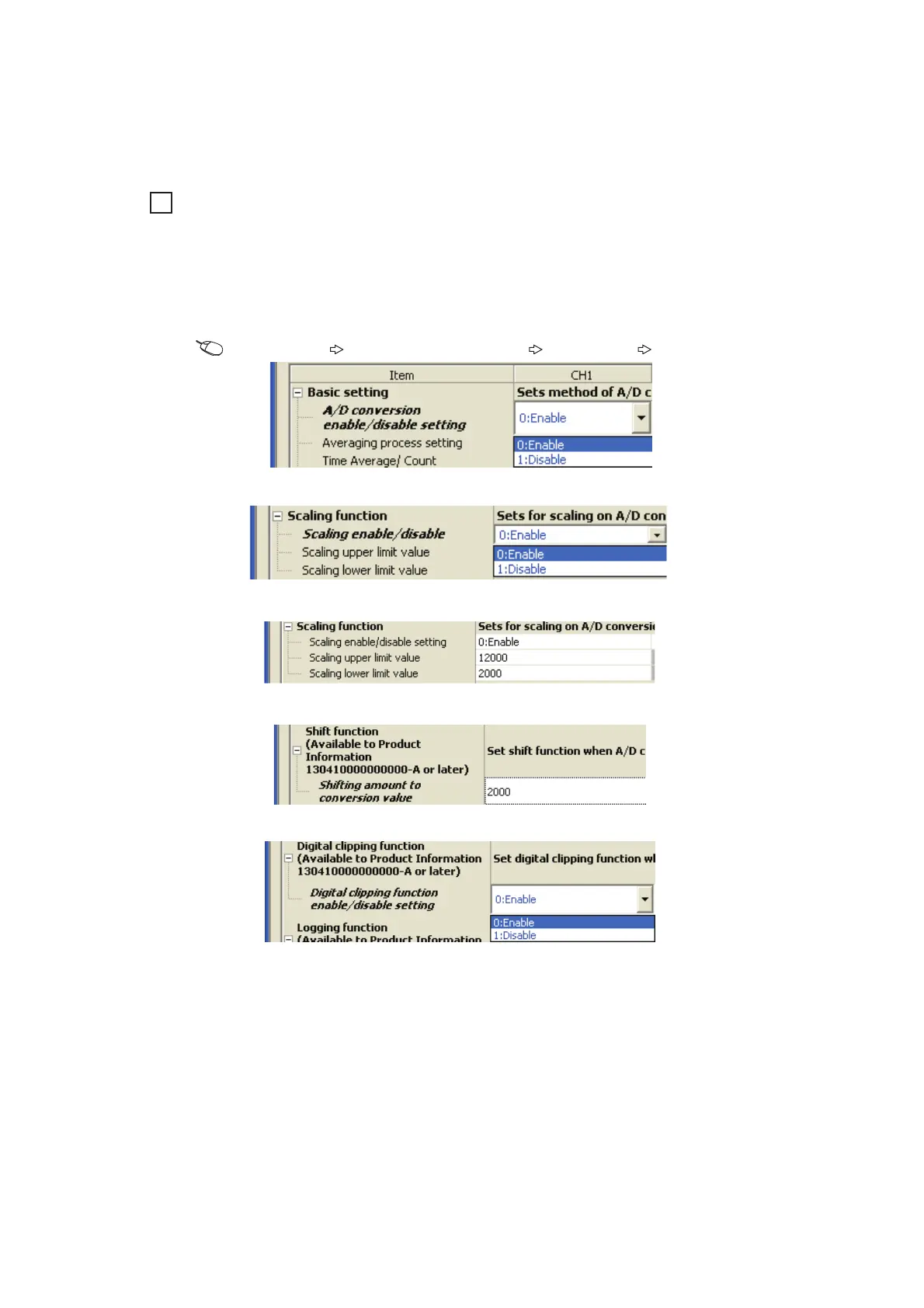

(4) Setting example of when the digital clipping function, scaling function, and
shift function are used together
When setting as follows for the A/D converter module with input range of 0 to 5V:
• "Scaling upper limit value": 12000
• "Scaling lower limit value": 2000
• "Shifting amount to conversion value": 2000
• "Digital clipping function enable/disable setting": "0: Enable"
1. Set "A/D conversion enable/disable setting" to "0: Enable".
Project window [Intelligent Function Module] module name [Parameter]
2. Set "Scaling enable/disable setting" to "0: Enable".
3. Set values for "Scaling upper limit value" and "Scaling lower limit value".
4. Set a value to "Shifting amount to conversion value".
5. Set "Digital clipping function enable/disable setting" to "0: Enable".
Ex.
